RIGOL
MSO4000/DS4000 Quick Guide
17
provides three cursor modes: manual, track and auto.
Display: press this key to enter the display setting menu to set the display type,
persistence time, wave intensity, grid type, grid brightness and menu display
time of the waveform.
Utility: press this key to enter the system function setting menu to set the
system-related functions or parameters, such as I/O setting, sound and
language. The oscilloscope also supports some advanced functions such as
pass/fail test and print setting.
Record: press this key to enter the waveform record menu. The oscilloscope
provides waveform record function and supports record constant open mode as
well as playback and analysis of recorded waveform.
Help: press this key to open the help interface. For detailed information, please
refer to the introduction in “To Use the Built-in Help System”.

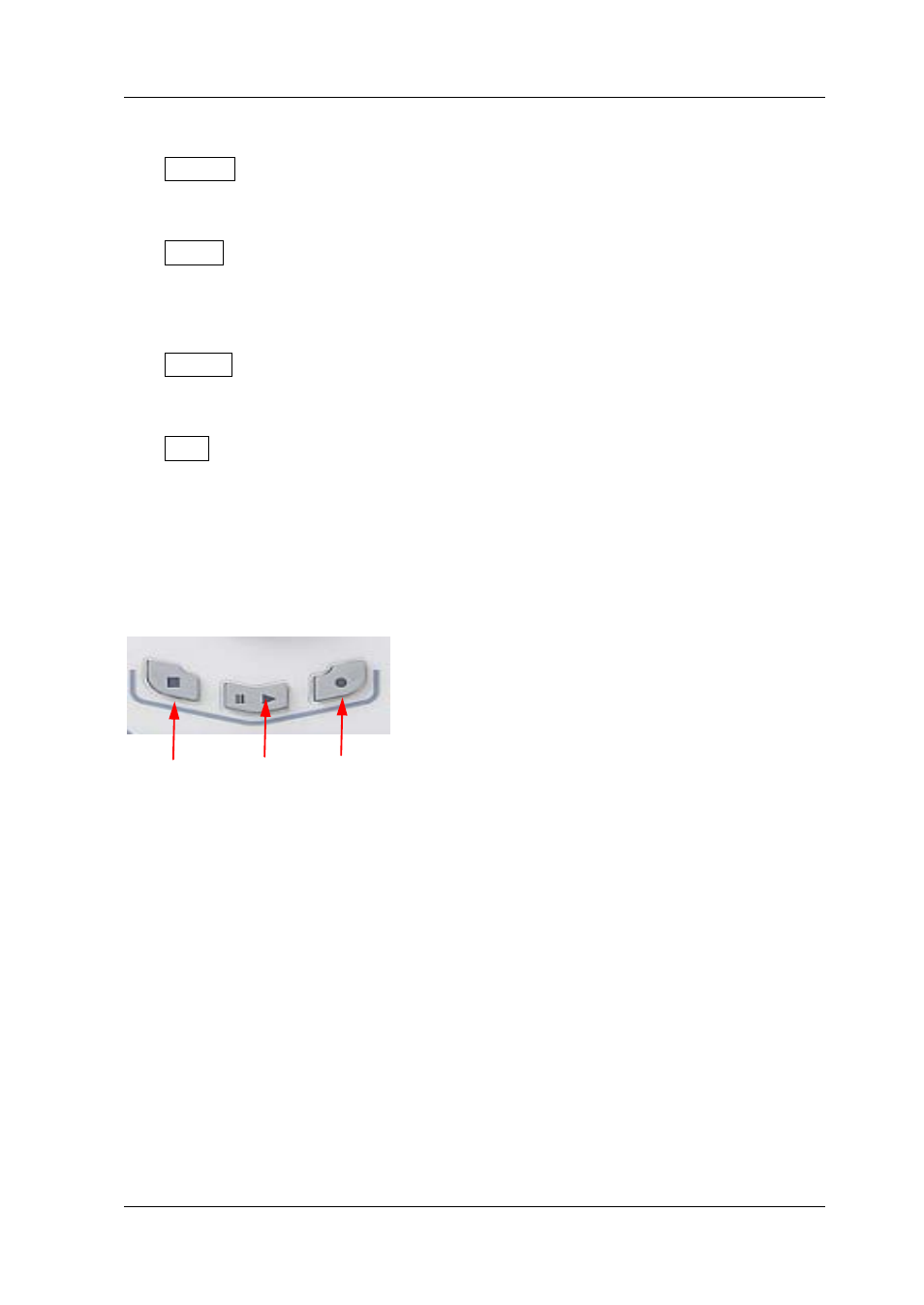

Record
Record: press this key to start recording the waveform. The backlight is
illuminated in red. Besides, the backlight will also be illuminated when record
constant on (open) mode is enabled.
Play/Pause: in stop or pause state, press this key to play back the waveform
and press again to pause
the play. The backlight is illuminated in yellow.
Stop: press this key to stop the waveform in record or playback mode. The
backlight is illuminated in orange.
Stop Play/Pause Record
