22
•

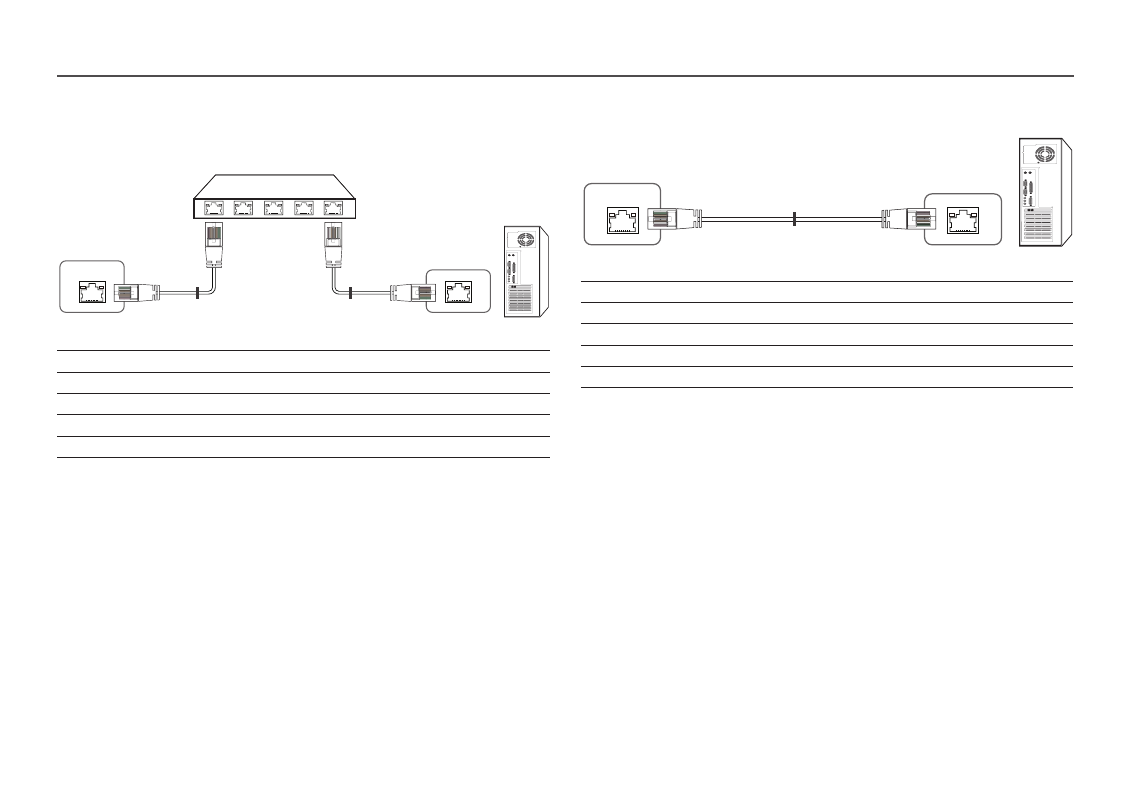

Connector : RJ45
Direct LAN cable (PC to HUB)
HDBT (LAN IN)
HUB
P1
P1
P2
P2
Signal
P1
P2
Signal
TX+
1
<-------->
1
TX+
TX-
2
<-------->
2
TX-
RX+
3
<-------->
3
RX+
RX-
6
<-------->
6
RX-
Cross LAN cable (PC to PC)
RJ45
P1
P2
HDBT (LAN IN)
Signal
P1
P2
Signal
TX+
1
<-------->
3
RX+
TX-
2
<-------->
6
RX-
RX+
3
<-------->
1
TX+
RX-
6
<-------->
2
TX-
