Before connecting cables
―
The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.

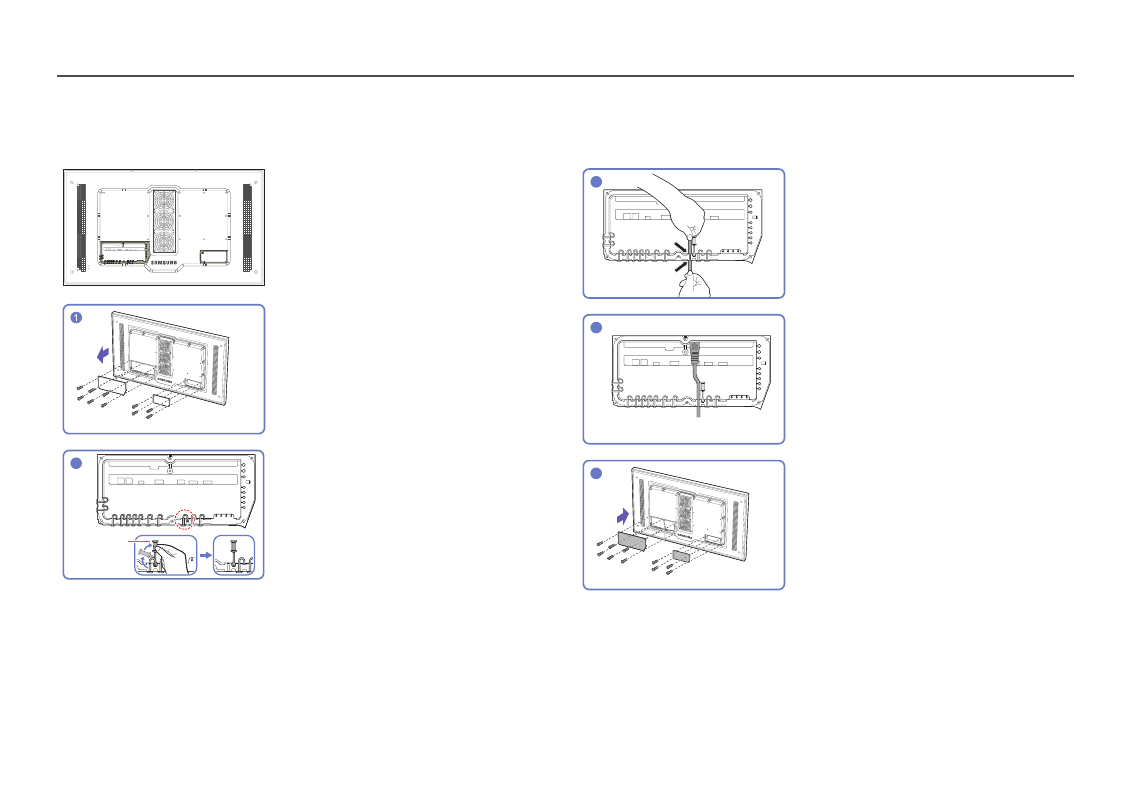

Unfasten the screws, then remove the cover.
2
Silicone bar
Remove the appropriate silicone bar for the
thickness of the cable to connect.
Different hole sizes and corresponding cable
thickness for each:
* JACK
―
7 Ø hole x 2: Insert the 7 Ø cable
―
5.5 Ø hole x 6 : Insert the 5.5 Ø cable
―
3 Ø hole x 4 : Insert the 3 Ø cable
* POWER INLET
―
7 Ø hole x 1: Insert the 7 Ø cable
3
Insert the appropriate cable into the hole from
which the silicone bar was removed.
4
The cable should be connected as shown.
5
Close the cover, then fasten the screws.
―
After all the cables are connected, make sure to
close the cover and fasten the screws to ensure it is
water tight.
―
Recommended torque : 10 - 12 kgf.cm
