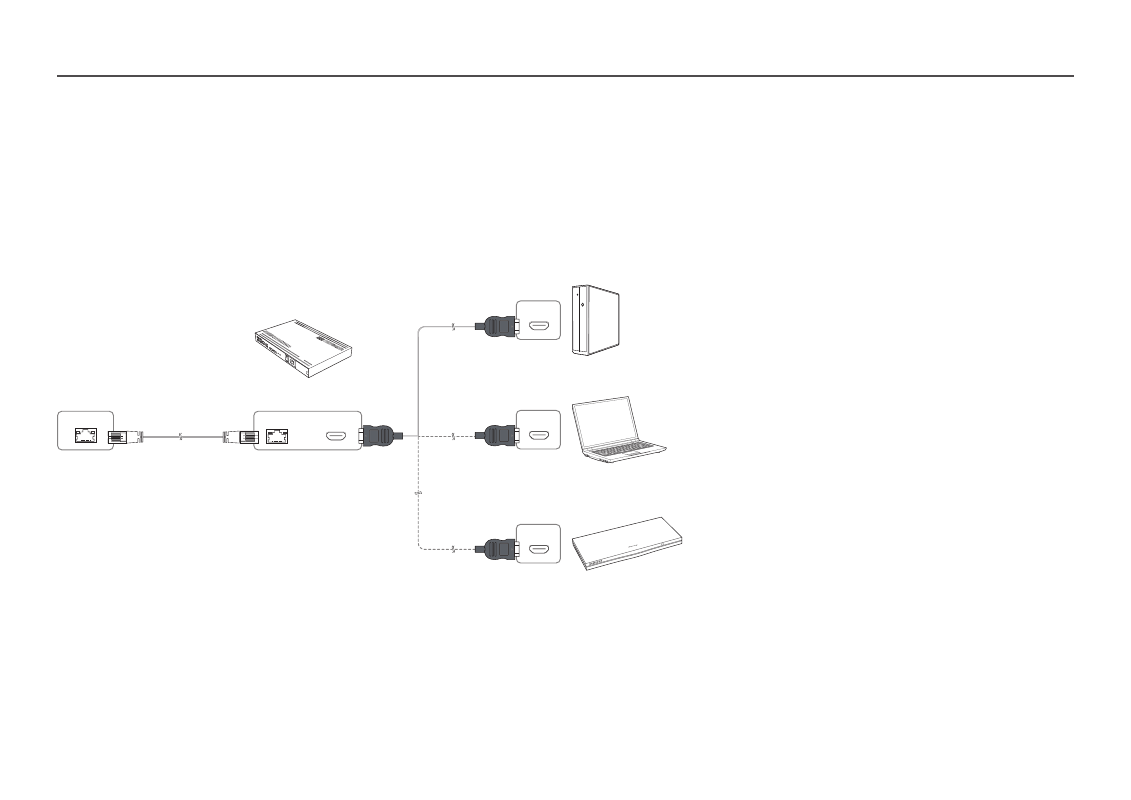

Connecting the HDBase-T
―
The appearance may differ depending on the product.
―
Connecting parts may differ in different products.
―
HDBT (LAN IN)
transmits data from an external device to HDBase-T (Tx). Make sure to connect them directly using a LAN cable.
―
Data transmission is not available if
HDBT (LAN IN)
is connected to HDBase-T (Tx) through a hub.
―
HDBase-T works with unshielded twisted pair (UTP) or shielded twisted pair (STP) cables; but, to ensure CE compliance, STP cables and STP Connectors are required. STP cable and connectors are recommended to safeguard
against unpredictable environmental electrical noise which may impact performance. It is recommended to use an STP cable to maximize performance. Using a UTP cable or patch may decrease performance.
―
For a long distance (50 m) transmission using many LAN cables in a bundle, use FTP or STP type of cables. When using UTP cables adjacent to other cables, it may cause a trouble of signal transmission.
HDMI OUT
HDMI IN
HDBT (LAN IN)
LAN
HDBase-T (Tx)
HDMI OUT
HDMI OUT
LAN Cable
