Setting the status text to ‘director’ in your URSA Mini’s ‘front SDI’ or ‘main SDI’ monitor settings
changes the status text for that output to show the following information.
FPS
Displays the currently selected frames per second for that camera. If off speed frame
rate is disabled, only the project frame rate will be shown. If an off speed frame rate is
being used, the sensor frame rate will be shown, followed by the project frame rate.
CAM
Displays the camera index as set in your URSA Mini’s Slate. See the ‘slate’ section later
in this manual for more information.
OPERATOR
Identifies the camera operator as set in your URSA Mini’s Slate. See the ‘slate’ section
later in this manual for more information.
DURATION DISPLAY
Displays the duration of the current clip, while recording, or the last recorded clip in the
following format: hours:minutes:seconds
REEL, SCENE, TAKE
Displays the current reel, scene and take. For more information on reels, scenes, takes
and their labelling conventions, refer to the ‘slate’ section later in this manual.
DYNAMIC RANGE
The bottom left hand corner of the monitor displays your URSA Mini’s currently
applied LUT, if applied to that output. If no LUT is applied, ‘film’ or ‘video’ dynamic
range will be displayed.
TIMECODE
The bottom right of the monitor displays your URSA Mini’s timecode, in the following
format: hours:minutes:seconds:frames

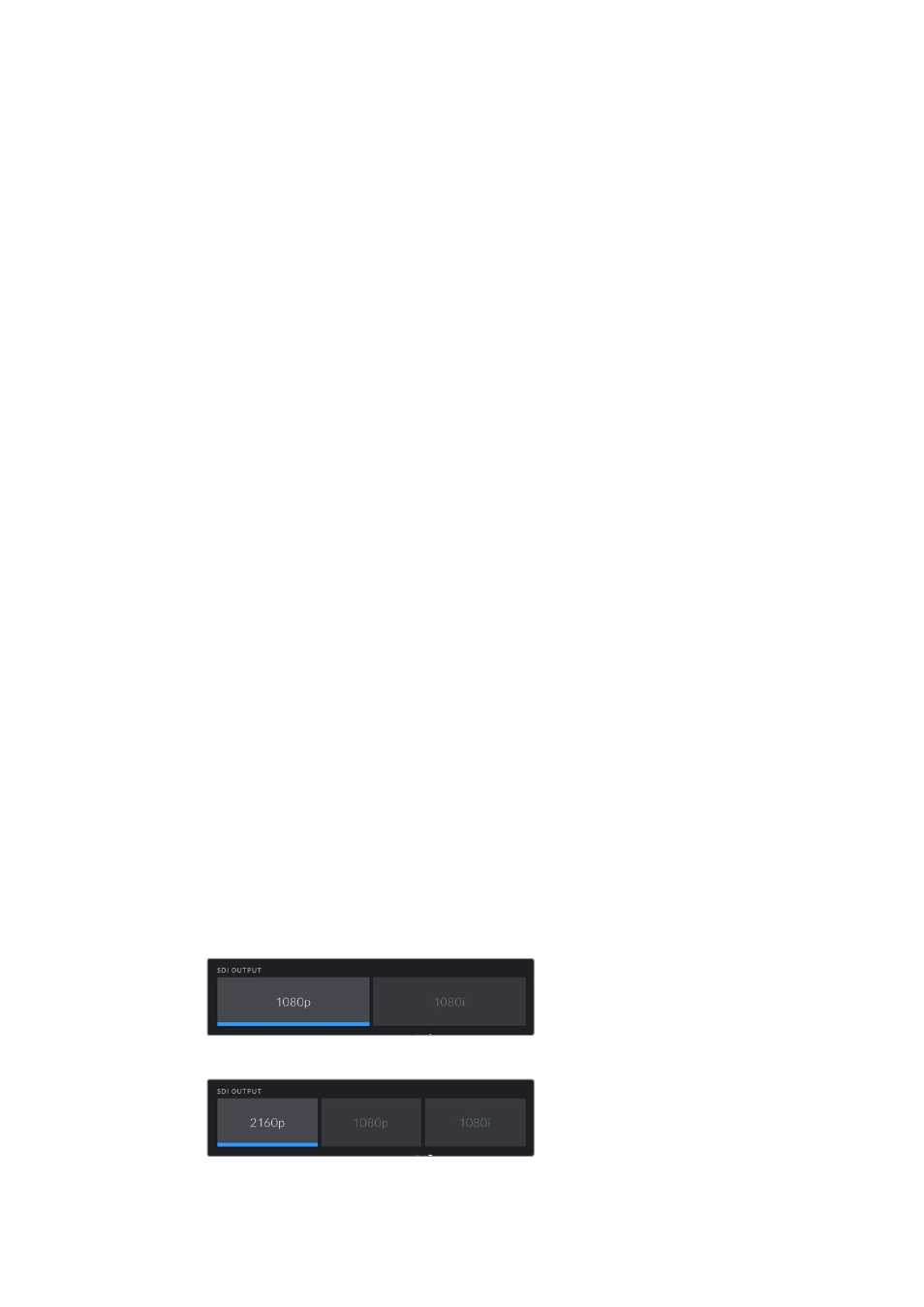

SDI Output
Both outputs allow you to choose between progressive and interlaced HD output, while your
URSA Mini’s main SDI output also has to option of progressive Ultra HD.
The options available in this setting depend on your camera’s resolution and frame
rate settings.
Progressive HD, or ‘1080p’ is always available regardless of your recording resolution and
frame rate, while interlaced HD, or ‘1080i’ is available when your project frame rate is set to 50,
59.94 or 60.
Ultra HD SDI output, or ‘2160p’ is available on your URSA Mini’s main SDI when shooting at
Ultra HD resolutions.
SDI Output – front SDI
SDI Output – main SDI
