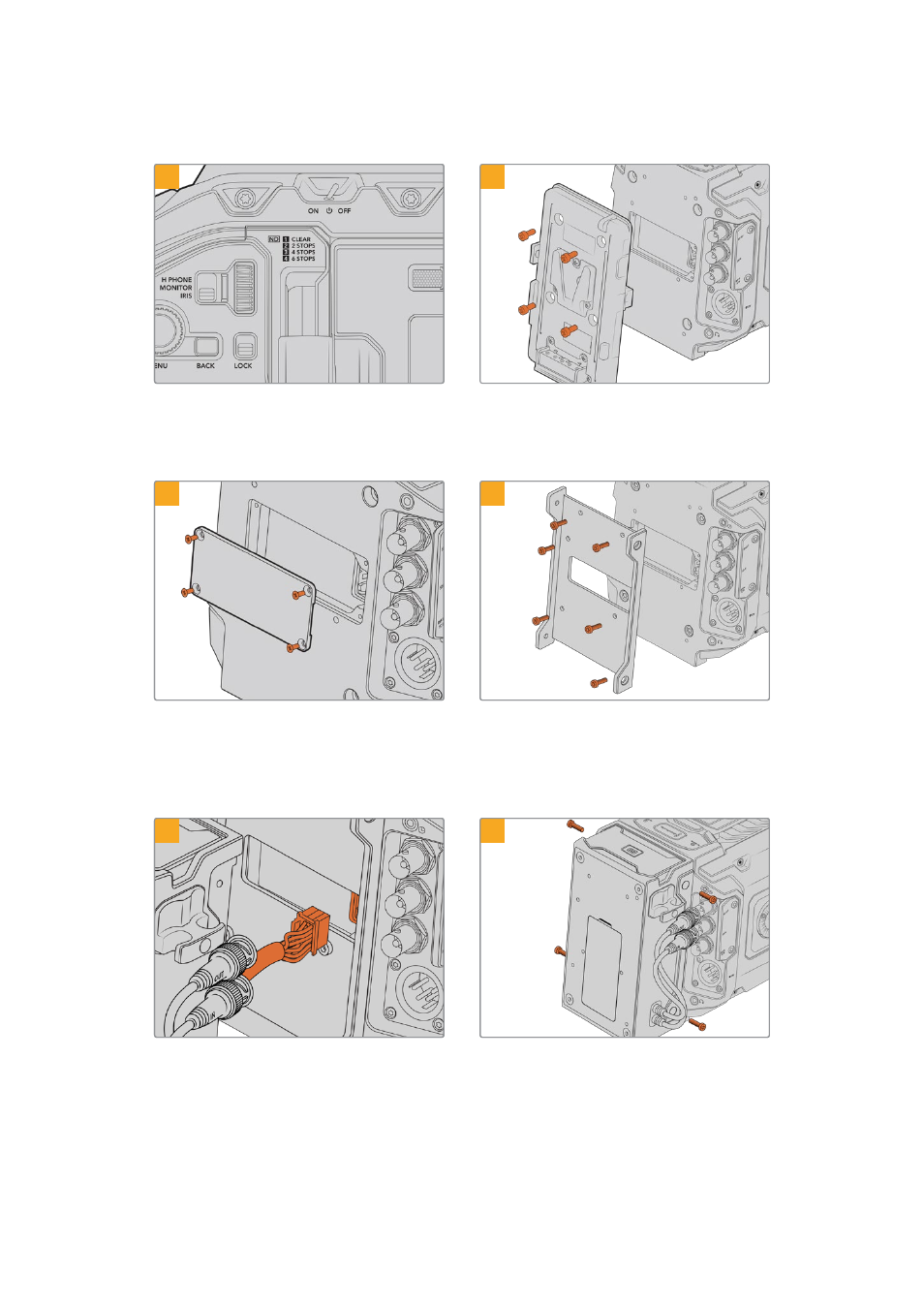

To mount and connect URSA Mini SSD Recorder:
1 2
Power off URSA Mini Pro by moving the ‘power’
switch to ‘off’. Power off URSA Mini by pressing
and releasing the ‘power’ button. Unmount any battery plates currently fitted to
your camera. For more information on mounting
and unmounting battery plates, see the section
'mounting batteries' in this manual.
3 4
If no battery was fitted to your camera,
you may need to remove the cover over the
molex socket on your camera's rear panel.
Use a philips head screwdriver to remove the
four M3 screws holding the cover in place. Attach URSA Mini SSD Recorder’s
mounting bracket using 6 x T10 torx screws.
5 6
Plug the molex connector on URSA Mini
SSD Recorder into the molex socket on
your camera’s rear panel. Attach URSA Mini SSD Recorder to the mounting
bracket using 2 x T10 torx screws on the left and
right side of the brackets.
287 URSA Mini SSD Recorder
