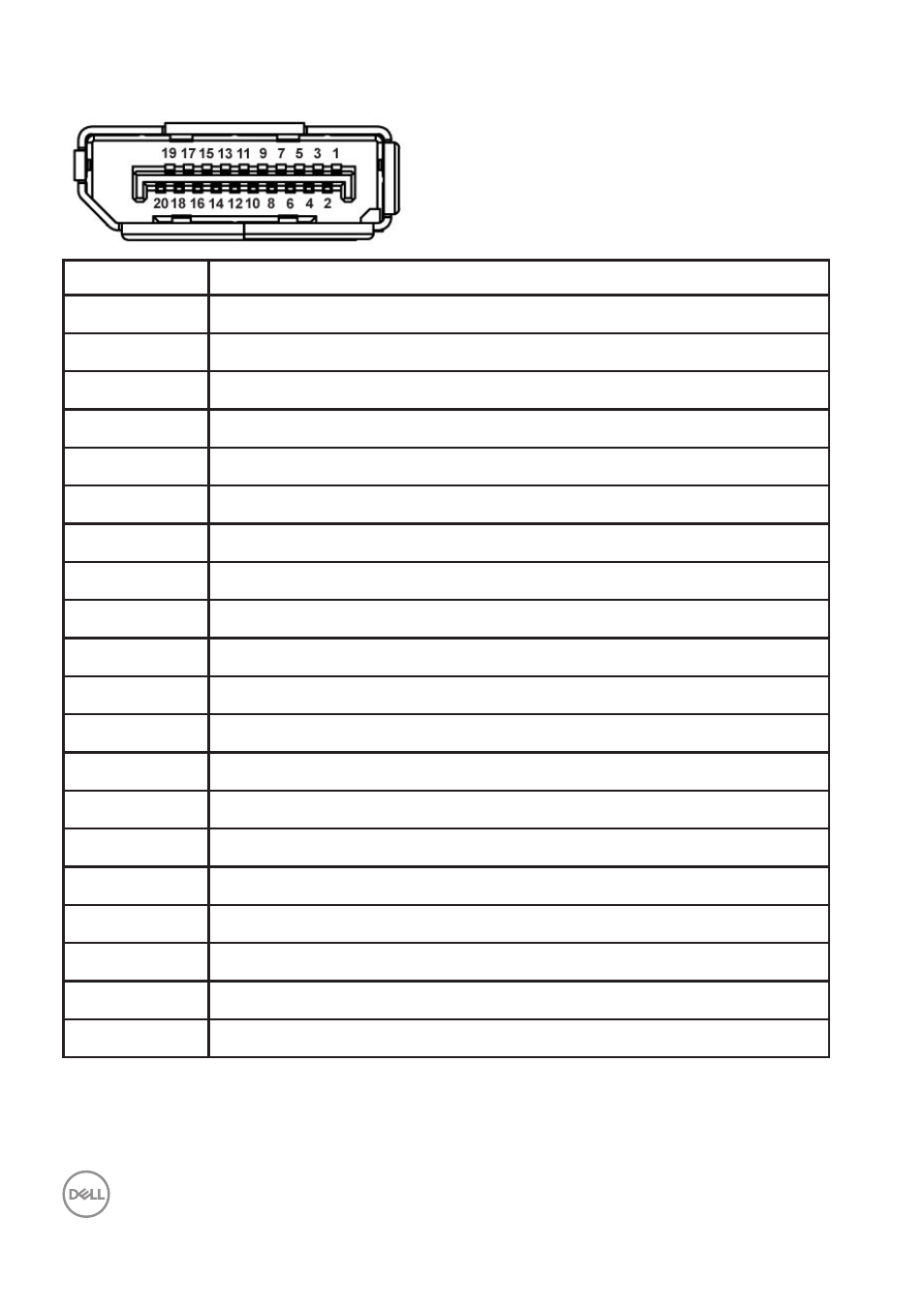

DP connector
Pin number 20-pin side of the connected signal cable
1
ML0 (p)
2
GND
3
ML0 (n)
4
ML1 (p)
5
GND
6
ML1 (n)
7
ML2 (p)
8
GND
9
ML2 (n)
10
ML3 (p)
11
GND
12
ML3 (n)
13
GND
14
GND
15
AUX (p)
16
GND
17
AUX (n)
18
GND
19
Re-PWR
20
+3.3 V DP_PWR
