Canon RC-V100 Remote Controller - Manual (Page 13)

13
En
14 AGC (automatic gain control) button
Toggles between automatic and manual ISO speed/gain adjustment.
When the camera is set to automatic ISO speed/gain control, the button lights up in
orange.
15 ISO/GAIN Н / О buttons
While the ISO speed/gain adjustment is set to manual, these buttons change the ISO
speed or gain by 1 stop up or down. Available values will differ depending on the
camera used and other settings on the camera.
Only with a REMOTE B terminal connection: The buttons light up in orange.

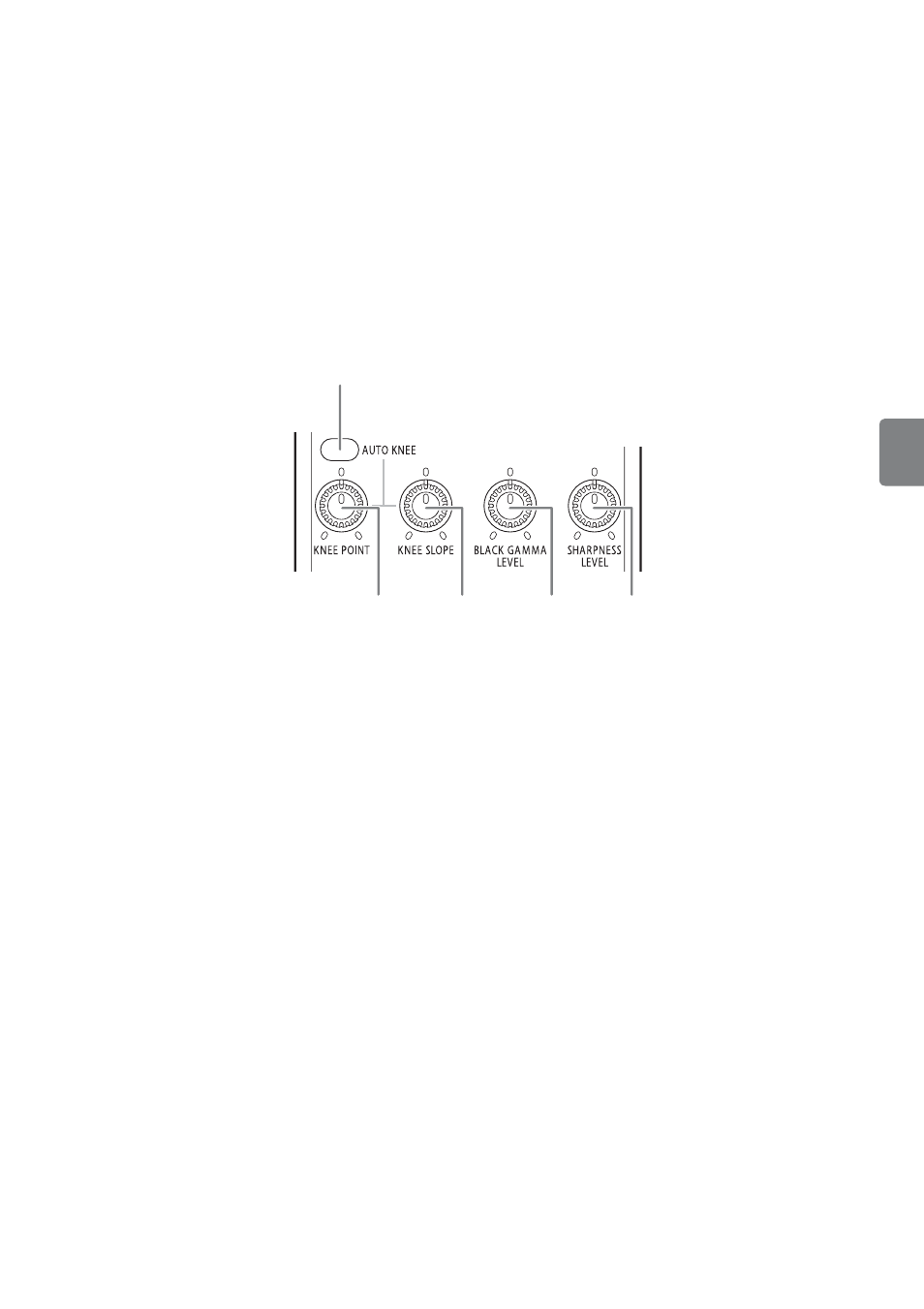

Knee, black gamma and sharpness controls
16 AUTO KNEE button
Toggles the adjustment method of the knee settings between automatic and manual.
When the camera is set to automatic knee adjustment, the button lights up in orange.
17 KNEE POINT dial
When the automatic knee setting is turned off, this dial changes the knee point
manually.
By default, the operating mode of the dial is set to relative mode (
A 19). You can
change the direction in which you need to turn the dial and its sensitivity to your
preference (
A 19).
18 KNEE SLOPE dial
When the automatic knee setting is turned off, this dial changes the knee slope
manually.
By default, the operating mode of the dial is set to relative mode (
A 19). You can
change the direction in which you need to turn the dial and its sensitivity to your
preference (
A 19).
19 BLACK GAMMA LEVEL dial
This dial adjusts the black gamma level.
By default, the operating mode of the dial is set to relative mode (
A 19). You can
change the direction in which you need to turn the dial and its sensitivity to your
preference (
A 19).
16
17 18 19 20
