Chapter 1. Introduction
5
Components

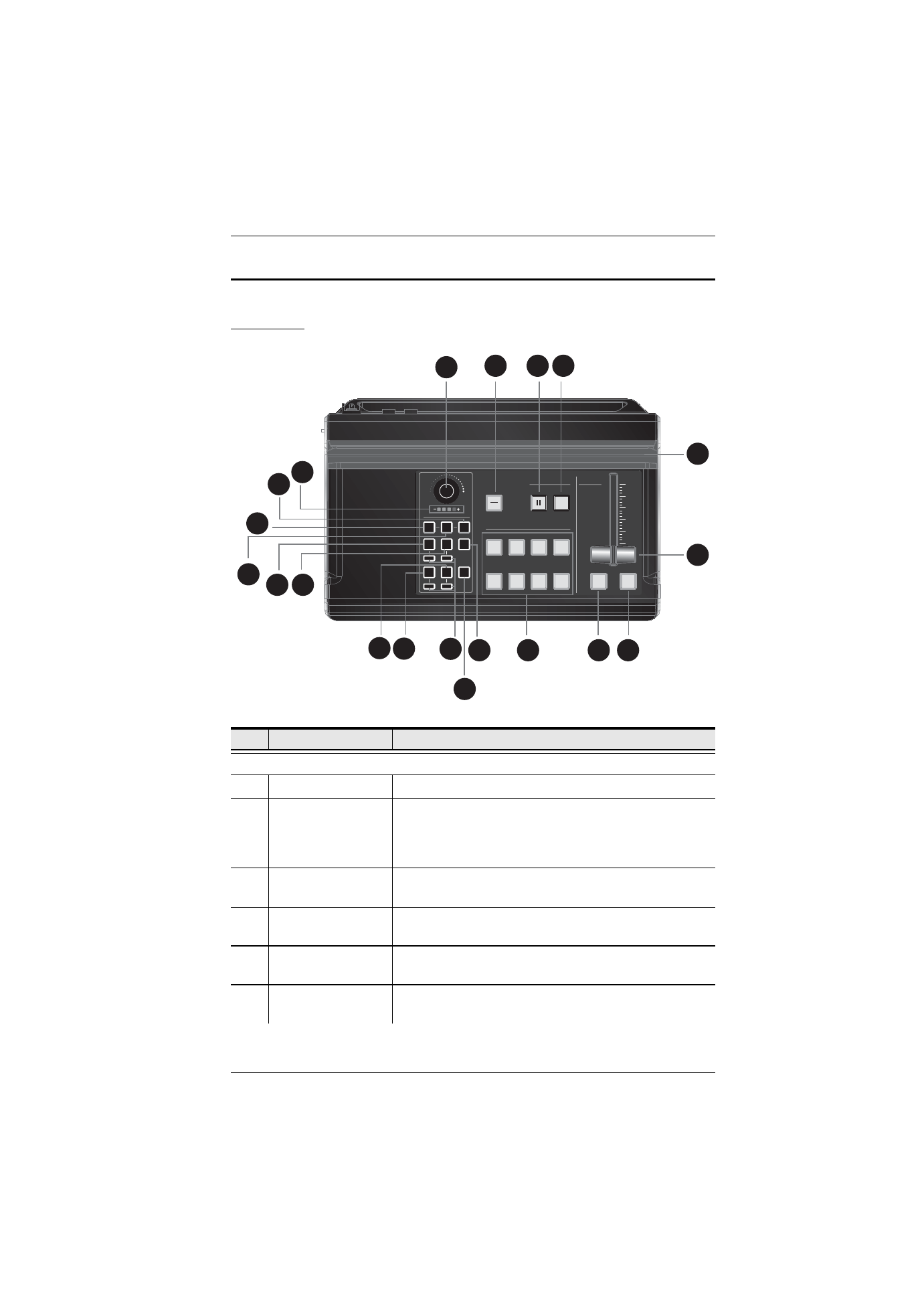

Top View
No. Component
Description
Audio Section
(Controls the audio settings of the system)
1
audio level control
Controls the volume of the audio source selected.
2
volume meter
The LED reflects the controlled volume.
During firmware upgrade, the LED behavior is changed.
Refer to
on page 73 for the LED
behavior during firmware upgrade.
3
MIC / Line-in
selector
Switches between the MIC / Line-in audio source.
The button is lit when switched to this source.
4
MIC / Line-in audio 1 Switches to the MIC / Line-in audio 1 source.
The button is lit when switched to this source.
5
MIC/Line-in audio 2 Switches to the MIC / Line-in audio 2 source.
The button is lit when switched to this source.
6
HDMI 1 audio
source
Switches to the HDMI 1 audio source.
The button is lit when switched to this source.
T U S F B N JO H
U S B O T JU JP O T
HP!MJWF
4
8
5
9
BVUP
D V U
BVEJP
2
BVEJP
3
BVEJP
T S D
Q H N
T D F O F T
IENJ
2
IENJ
4
BGW
BGW
BGW
BGW
IENJ
3
MJOF
JO
IENJ
5
2
6
3
7
QHN
NVUF
11
12
13
14 15
16
17
18
19
20
8
2
3
4
5
6 7
1
9
10
