StreamLIVE™ PRO User Manual
12
1. Plug the power adapter into the StreamLIVE™ PRO’s power jack and into
an AC power source.
2. Turn on the power switch on the StreamLIVE™ PRO.
3. Connect your HDMI sources (e.g. PC, gaming console, or video
recorder)
1
.
4. Connect a mic-in and/or line-in audio source.
5. (Optional) Connect the SRC / PGM output port and the 4K HDMI loop out
port if necessary:
a) Connect an HDMI display to the SRC / PGM output port.
b) Connect an HDMI display to the 4K HDMI loop out port.
6. Connect the StreamLIVE™ PRO to the Internet using an Ethernet cable
2
and follow the on-screen instructions on the ATEN OnAir™ Pro app to
complete the configuration. If you wish to control the StreamLIVE™ PRO
using an Android tablet or Chromebook via network, , make sure the
Android tablet or Chromebook and the StreamLIVE™ PRO are installed
within the same network environment. See
Pairing an Android Tablet or
Chromebook via Network , page 15.

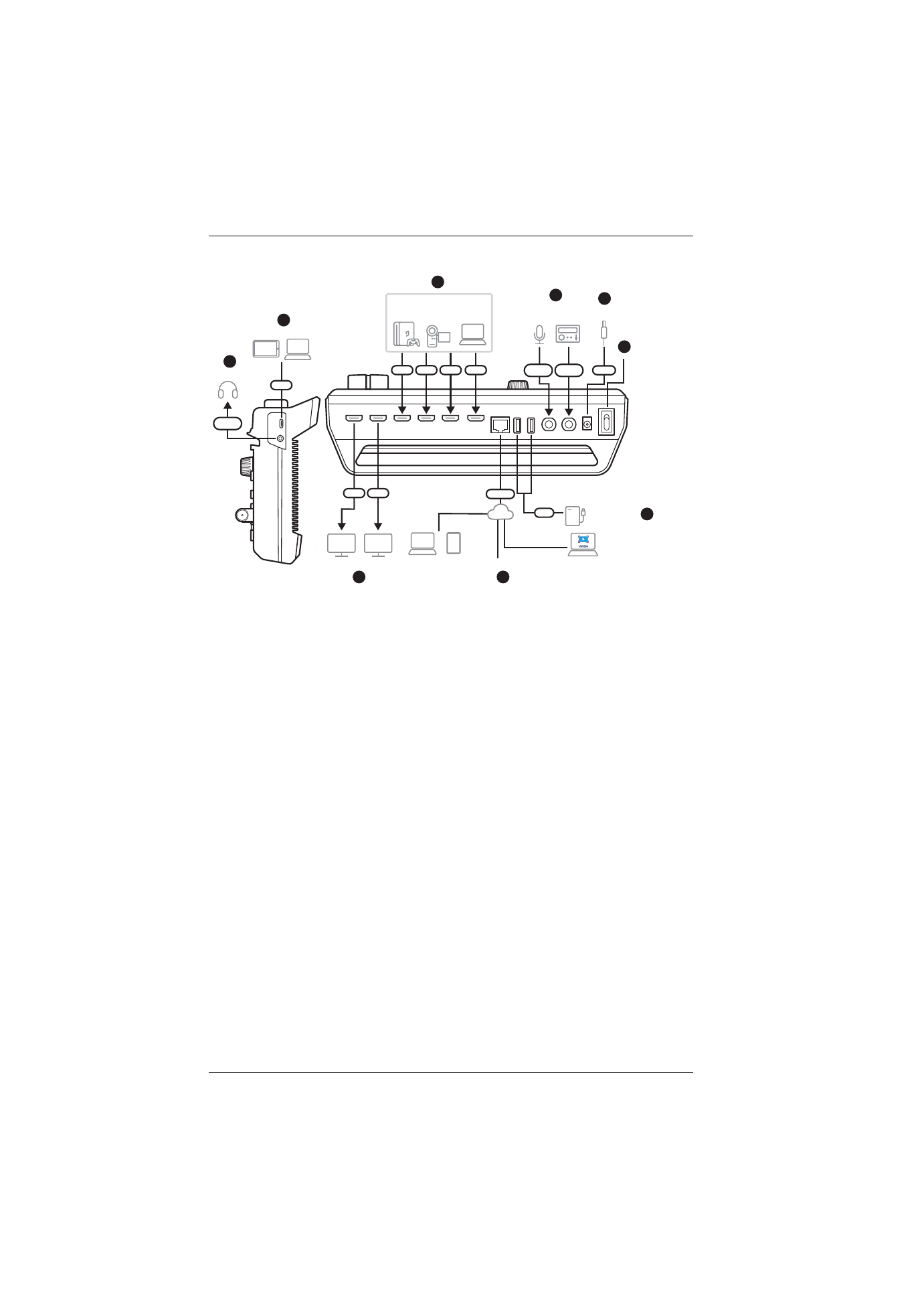

UC9040 (Rear)
Android
Tablet
Chromebook CDN Platforms
USB
iPad Chromebook
HDMI HDMI
Monitor Monitor
Power Adapter
External
Storage Device
USB
Power 6.35 mm
TRS
6.35 mm
TRS
Audio Source
examples
3.5 mm
TRS
or or
HDMI Video Source
examples (unencrypted)
Ethernet
HDMI HDMI HDMI HDMI
or
ATEN Stream to USB Capture
Earphone
8
9
3
4
1
2
5 6
7
Network
UC9040 (Side)
