Chapter 2: Getting Started
2–5
MegaWizard Plug-In Manager Page Descriptions
May 2013
Altera Corporation
RAM-Based Shift Register (ALTSHIFT_TAPS) Megafunction User Guide
Page 4 of the Shift Register (RAM-based) MegaWizard Plug-In Manager lists the files
needed to properly simulate the generated design files (
).
Page 5 of the Shift Register (RAM-based) MegaWizard Plug-In Manager displays the
types of files to be generated. The Variation file, which is automatically generated,
contains wrapper code in the language you specified on page 2a. On page 5 of the
MegaWizard Plug-In Manager, specify the types of files to be generated. You can
choose from the following types of files:
■
AHDL Include file (<function name>.inc)
■
VHDL component declaration file (<function name>.cmp)
■
Quartus II symbol file (<function name>.bsf)
■
Instantiation template file (<function name>_inst.v)
■
Verilog HDL black-box file (<function name>_bb.v)

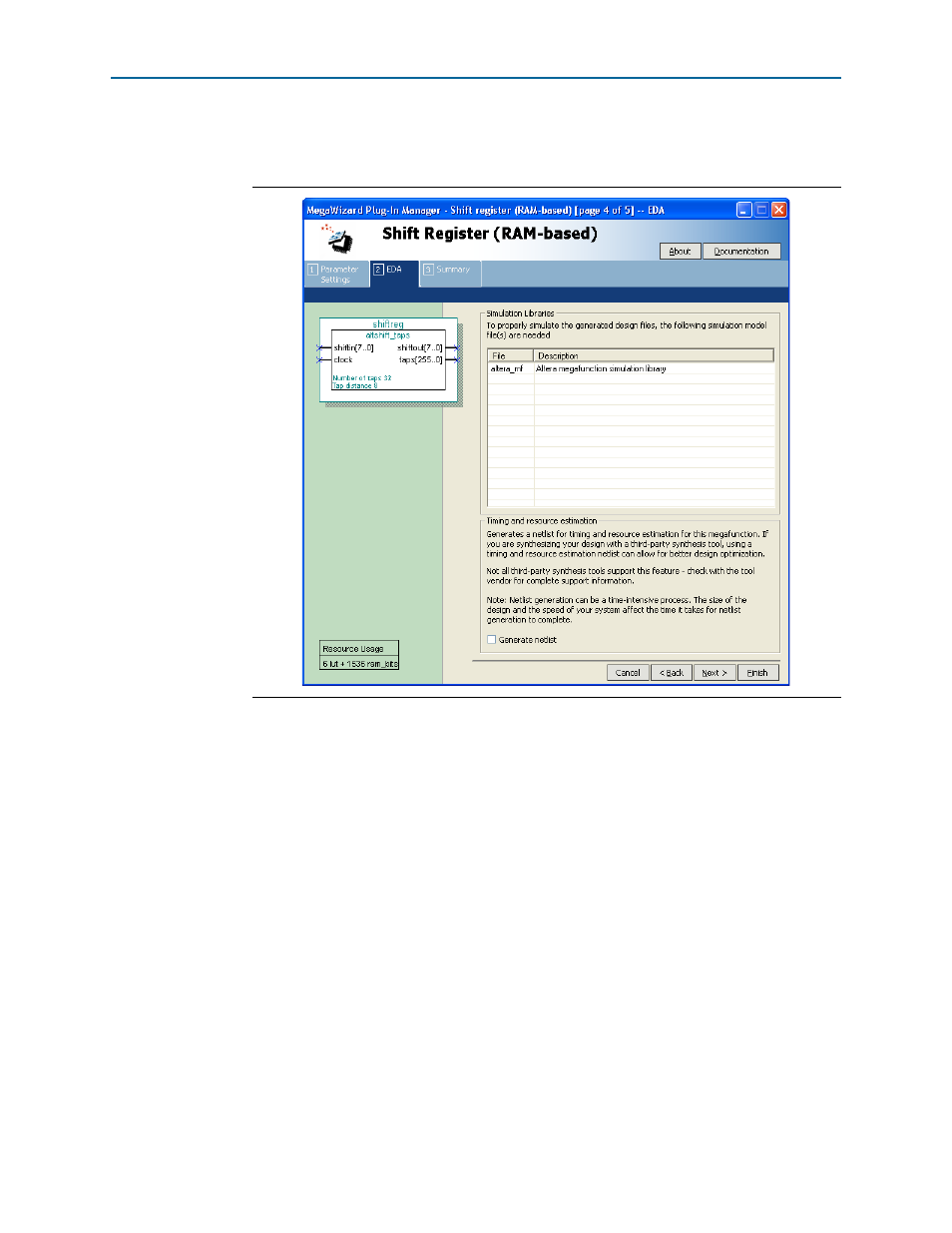

Figure 2–5. MegaWizard Plug-In Manager – Shift Register (RAM-based) [page 4 of 5]
