Step 2: Setup rate, resolution, quality, encode and max bit stream
Step 3: Select “All” to set the same settings for all channels.
Step 4: Click “Apply” button to save the setting.
4.3.3 Time
Step 1: Enter into MenuSetupRecord  Time interface to set recording time. Refer to Fig
4-13:

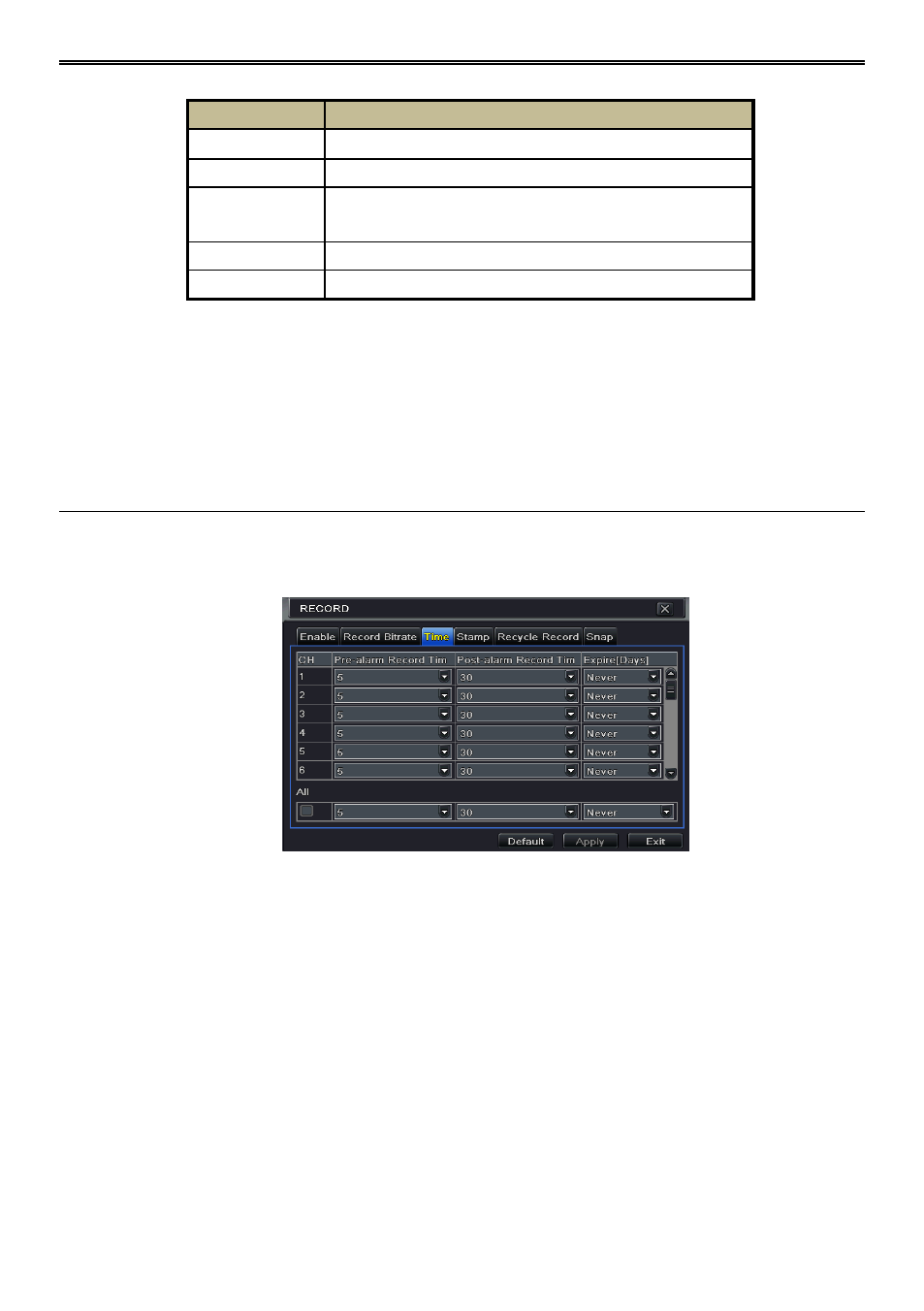

Fig 4-13 Record Configuration-Time
Step 2: Set Pre-alarm record time and post-alarm record time. Select “All” to set the same
settings for all channels.
Pre-alarm Record Time: Set the time in seconds to pre-record before the actual recording
begins.
Post-alarm Record Time: Set the time in seconds to post-record after the actual recording
has finished, five options: 10s, 15s, 20s, 30s, 60s, 120s, 180s and 300s.
Expire Time: Set the expiration time for recorded video. If the set date is overdue, the
recorded files will be deleted automatically.
Step 3: Click “Apply” to save the setting.
Parameter Meaning
Rate Range from: 1-30
（NTSC）1-25(PAL)
Resolution Supports CIF, HD1, D1 & WD1
Quality
The higher the value is, the clearer the recorded image is. Six
options: lowest, lower, low, medium, higher and highest.
Encode VBR and CBR
Max bit stream Range from: 768~2560bps
