10
5 4 3
6
7
2
MADRIGAL AUDIO LABORATORIES, INC.
PROCEED® COMPACT DISC PLAYER
MODEL NO:
SERIAL NO:
MANUFACTURED:
50-60 HZ
25 WATTS VOLTS A, 250V
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
CAUTION: TO REDUCE THE RISK OF ELECTRICAL
SHOCK, DO NOT REMOVE COVER. NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED PERSONNEL.
CAUTION: FOR CONTINUED
PROTECTION AGAINST RISK OF
FIRE, REPLACE ONLY WITH THE
SAME TYPE OF FUSE:
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
master
power
1
PROCEED® PDT 3
made in u.s.a.
digital
outputs
spdif aes/ebu st eiaj

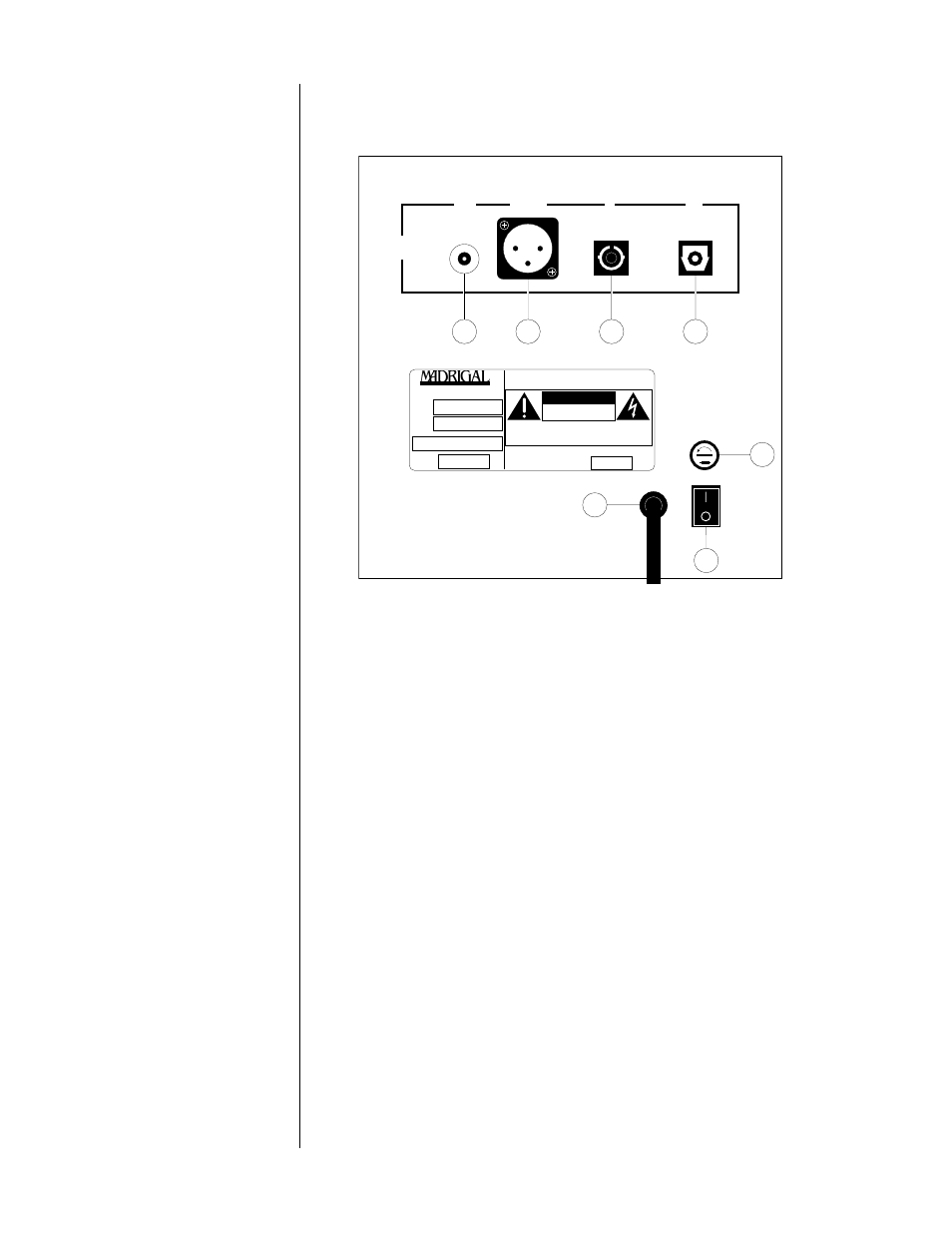

Rear panel, PDT 3
1 master power
This switch turns the PDT 3 on and off. The switch must be in the "|"
(on) position for the PDT 3 to function. (See "Set-up and
installation.")
NEVER operate the master power switch without first making sure
that power is turned off to your receiver, integrated amplifier, or
preamplifier/power amplifier.
2 spdif (RCA) digital output
This output provides digital audio (via a cable equipped with RCA-
type connectors) to the digital input of a receiver, integrated
amplifier, preamplifier, or digital processor. (See "Set-up and
installation.")
3 aes/ebu (XLR) digital output
This output provides digital audio (via a cable equipped with XLR-
type connectors) to the digital input of a receiver, integrated
amplifier, preamplifier, or digital processor. (See "Set-up and
installation.")
4 st (AT&T) digital output
This output provides digital audio (via an optical cable equipped
with ST-type connectors) to the optical digital input of a receiver,
integrated amplifier, preamplifier, or digital processor. (See "Set-up
and installation.")
