Adamson Point Series User Manual
Page 17
Point Series User Manual Page 17 of 40
adamson
systems
.com
To give the contractor flexibility when it comes to pricing, all Point Series (with the exception of
the Point 215 Sub) loudspeakers are available in active or passive operation. Used actively,
the Point 8,12 & 15 each require 2x amplifier channels and receive a low and a high signal,
crossed over with the Point Controller digital signal processor. If using the Point 115 or Point 215
Subs in conjunction with the 2 way Point Series cabinets, only one amp channel and one DSP
channel will need to be used. The DSP is required to accurately xover the Point Subs with Active
Point Series 2 Way cabinets.
If used passively, each Point Series box only requires a single amp channel. DSP is still
recommended for EQ and limiting. The Point 115 Sub has an built-in 2 way xover so that one
amplifier channel can drive the Point 115 and also a Point 8 of the same feed. The signal is
fed into the left output of the Point 115 then it enters an inbuilt passive xover. The Sub output is
then connected to the 15” woofer and the high passed xover output is fed to the second NL4
connector on the back of the Point 115 for connection to a Point 8 cabinet.
2.0

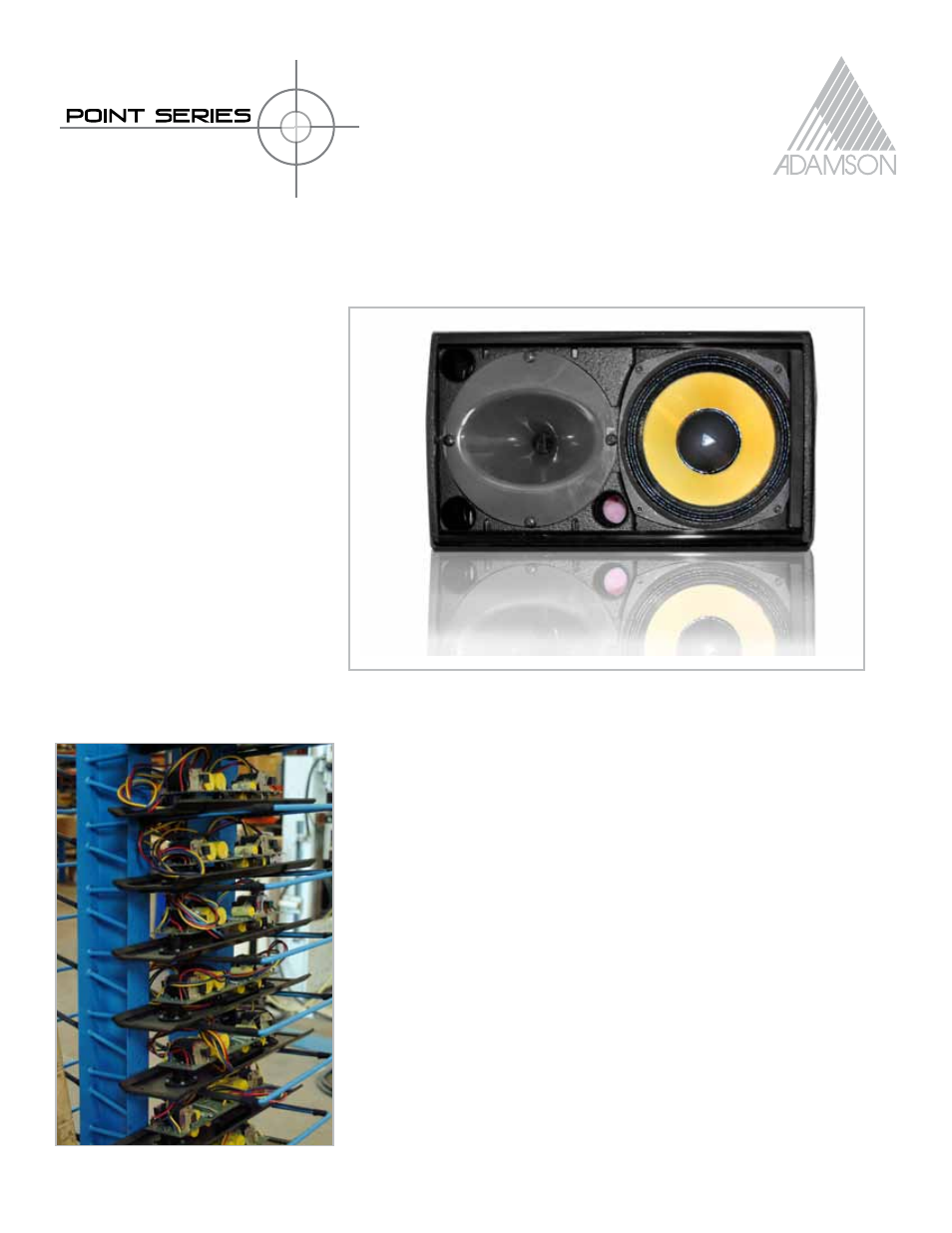

Rotatable Waveguide
The Point 12, and 15 feature a 40°x 20°, 60°x 40° or
90°x 60° rotatable waveguide, whereas the Point 8
is available with a 90 ° x 60° rotatable waveguide.
Simply order the cabinet with the desirable
Waveguide, To modify the waveguide from a
vertical to a horizontal configuration, unscrew 4
screws, turn the waveguide and screw back into
place.
2.1
Active/Passive Operation
