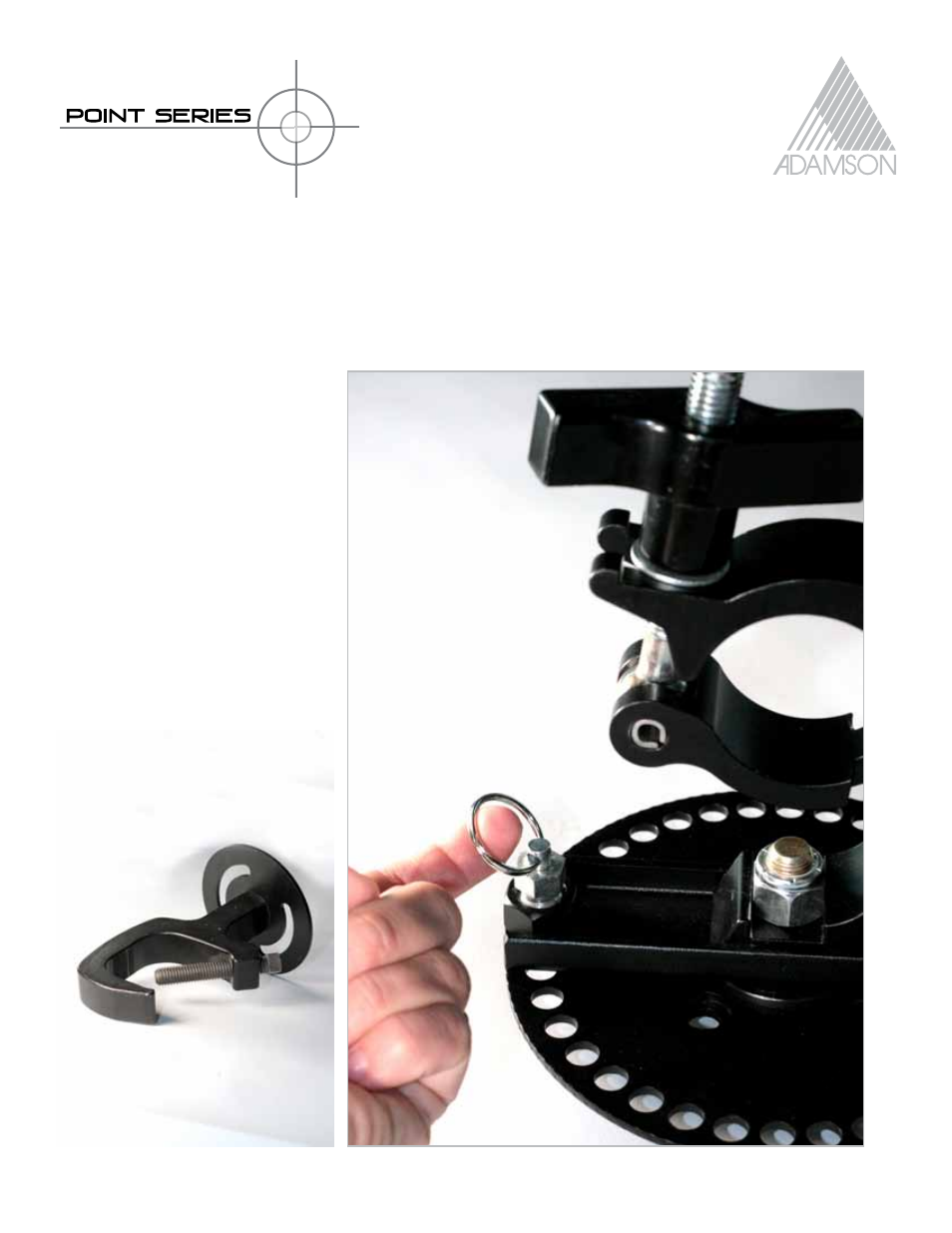

SLR™ Quick-Lock™ 360° Articulator
The Quick-Lock™ 360˚ Articulator allows any
Point Series cabinet to be mount to a standard
C-Clamp and then rotated a full 360˚ in the
horizontal plane. It uses a push pin to lock in the
desired horizontal angle to ensure no movement
over time. The 360˚ Base Plate is mounted directly
to the SLR
™
Socket, and the cabinet can then be
rotated and snapped into place using the push
pin.
(Part # 920123)
SLR™ Fixed Base C-Clamp Adapter
The Fixed Base C-Clamp Adapter is used to attach
a standard C-Clamp to any Point Series cabinet.
It attaches directly to the cabinet via the screw
threads in the SLR™Socket on the top of the
cabinet.
(Part # 920124)
3.10
Parts and Terminology
SLR™ C-Clamp Accessories
