SLR™ Quick-Lock™ Vertical Bracket

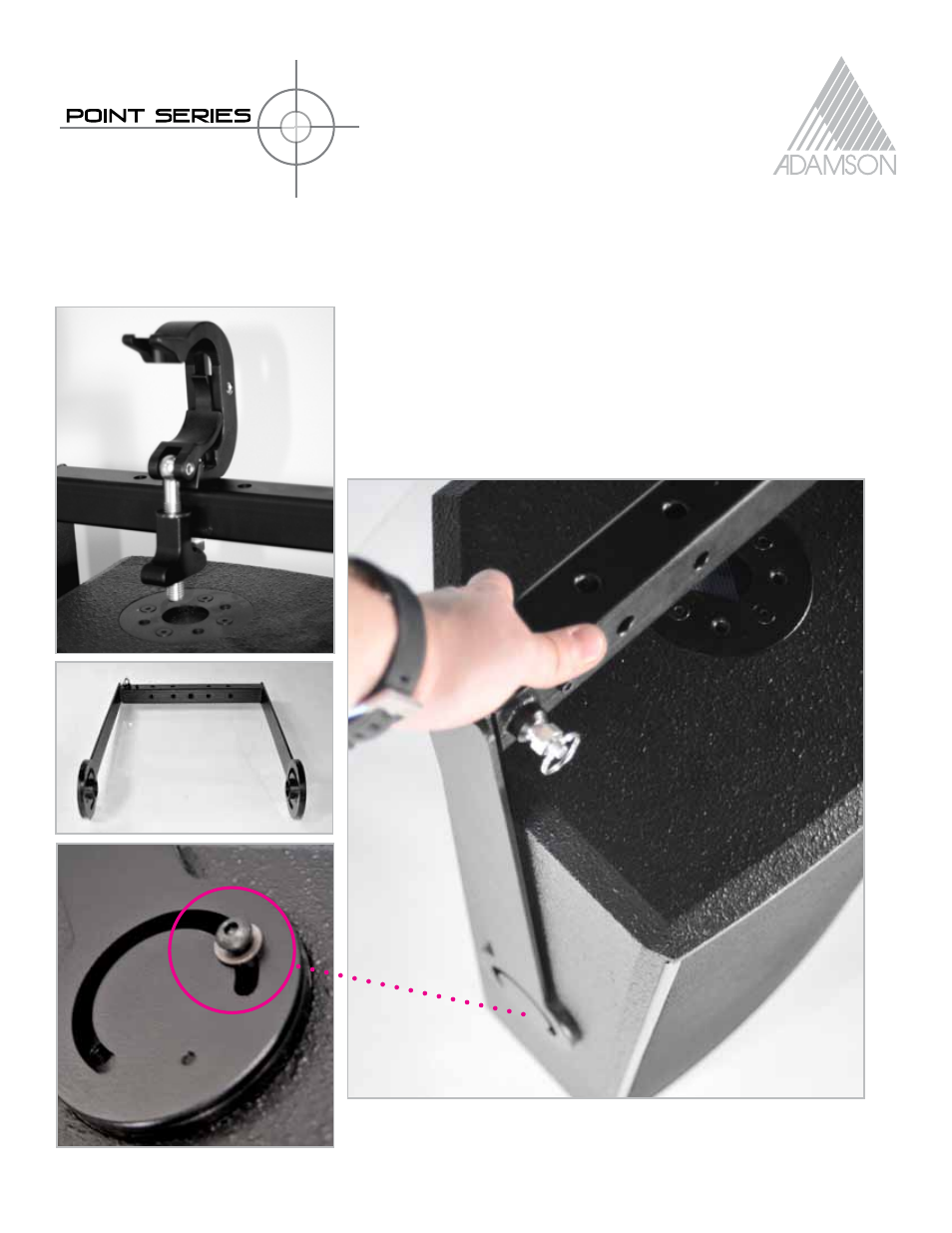

The Quick-Lock™ Vertical Bracket attaches to all Point Series via the SLR™ Sockets on the sides
of the cabinet. The Quick-Lock™Vertical Bracket allows the cabinet to then be rotated in the
vertical plane and locked into place via the screw threads in the SLR™Socket. It can then be
attached to either a C-Clamp Accesory or custom bracket via the bolt holes on the top of
the bracket.
(Part # 8 - 920110, 12 - 920113, 15 - 920117)
