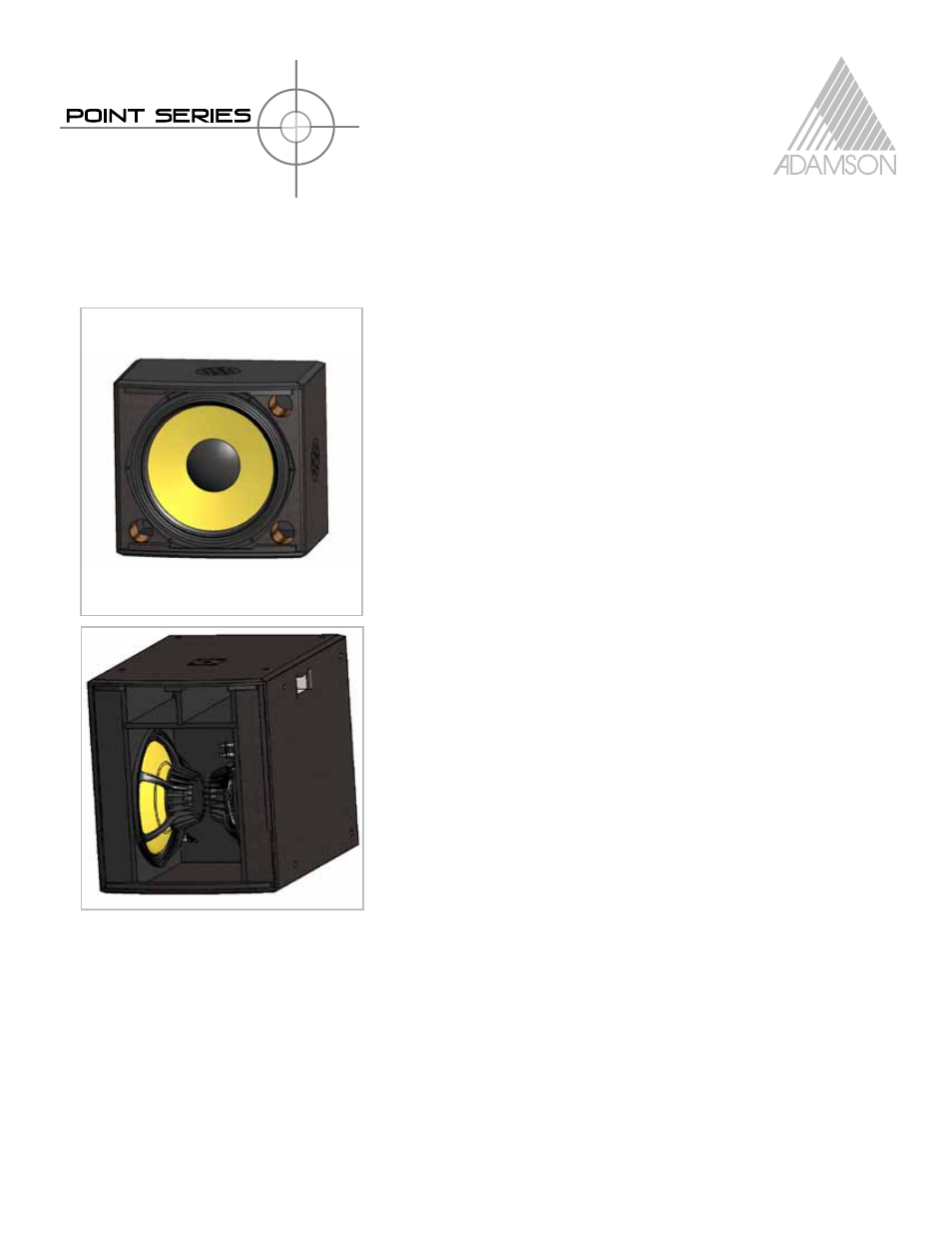

The Point 115 Sub
The Point 115 is the smaller of the two original subs in the Point Series range. It features a
frequency range (+/-3dB) of 50Hz- 200Hz (full range) or 50Hz-135Hz (with xover preset). The
Point 115 Sub can be used to complement the entire 2-way Point Series range. The Point 115
Sub features 1x 15” ND-15S 6Ω Neodymium / Kevlar Bass Driver with a peak power handling of
2000W. It comes complete with SLR™ rigging sockets and is Omnimount (60 Series) ready. In
passive mode, the Point 115 Sub can utilize a built in xover so that signal can be looped out to
a Point 8 cabinet via the recessed NL4 panel provididing a seamless xover between the Point
115 & Point 8 without the need of DSP. Active presets are available for the Point Control Digital
Signal Processor. The Point 115 box geometry allows it to be flown vertically with a Point 15, or
flown vertically with a horizontal Point 8 underneath. SLR™ Rigging Sockets are standard. The
Point Sub Pole Mount Base is also available.
The Point 215 Sub
The Point 215 is the largest of the two original subs in the Point Series range. It features a
frequency range (+/-3dB) of 35Hz- 160Hz (full range) or 35Hz-110Hz (with xover preset). The
Point 215 Sub can be used to complement the entire 2-way Point Series range. The Point 215
Sub features 2x 15” ND-15S 6Ω Neodymium / Kevlar Bass Driver in a manifold configuration
and is capable of a massive 4000W peak power handling. It is the only Point Series cabinet
that does not include the SLR™rigging system but comes standard with 5/16-18 threads for Eye
Hooks if flying is necessary .
1.2
The Point Series Range
