3.0
Parts and Terminology

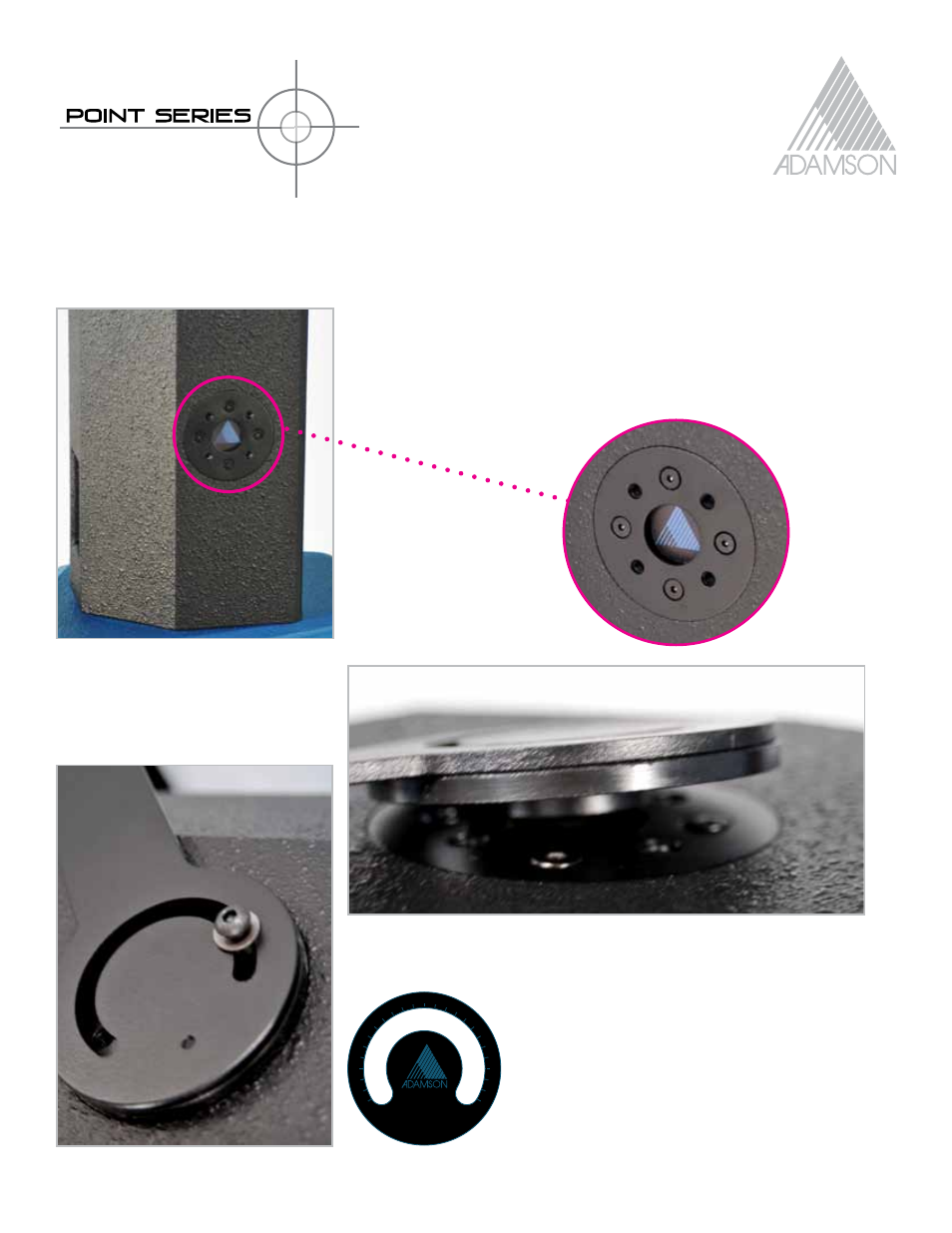

SLR™ Socket
The SLR™ (Side Lock Revolver) Socket is the main attachment point* for all of the brackets in
the Point Series SLR™ (Side Lock Revolver) rigging system. Each box** in the Point Series has
SLR™ Sockets on both sides and top and bottom.
(Built-in no part #)
The SLR™ Socket allows horizontal and vertical
rigging brackets to be snapped into place, and
then adjusted to get desired angle.
This means the user does not have to lift the box while trying to adjust the aiming angle. The
screw threads are used for locking the brackets into place at their desired angle - and for
attaching SLR™ Sight Mount accessories.
1 Except for the Omni Mount Bracket
2 Except for the Point 215 Sub
0 1 2
3
4
5
6
7
8
9
10
11
12
12
11
10
9
8
7
6
5
4
3
2 1
