Hardware Installation
Installing ML905-B onto a Carrier Board

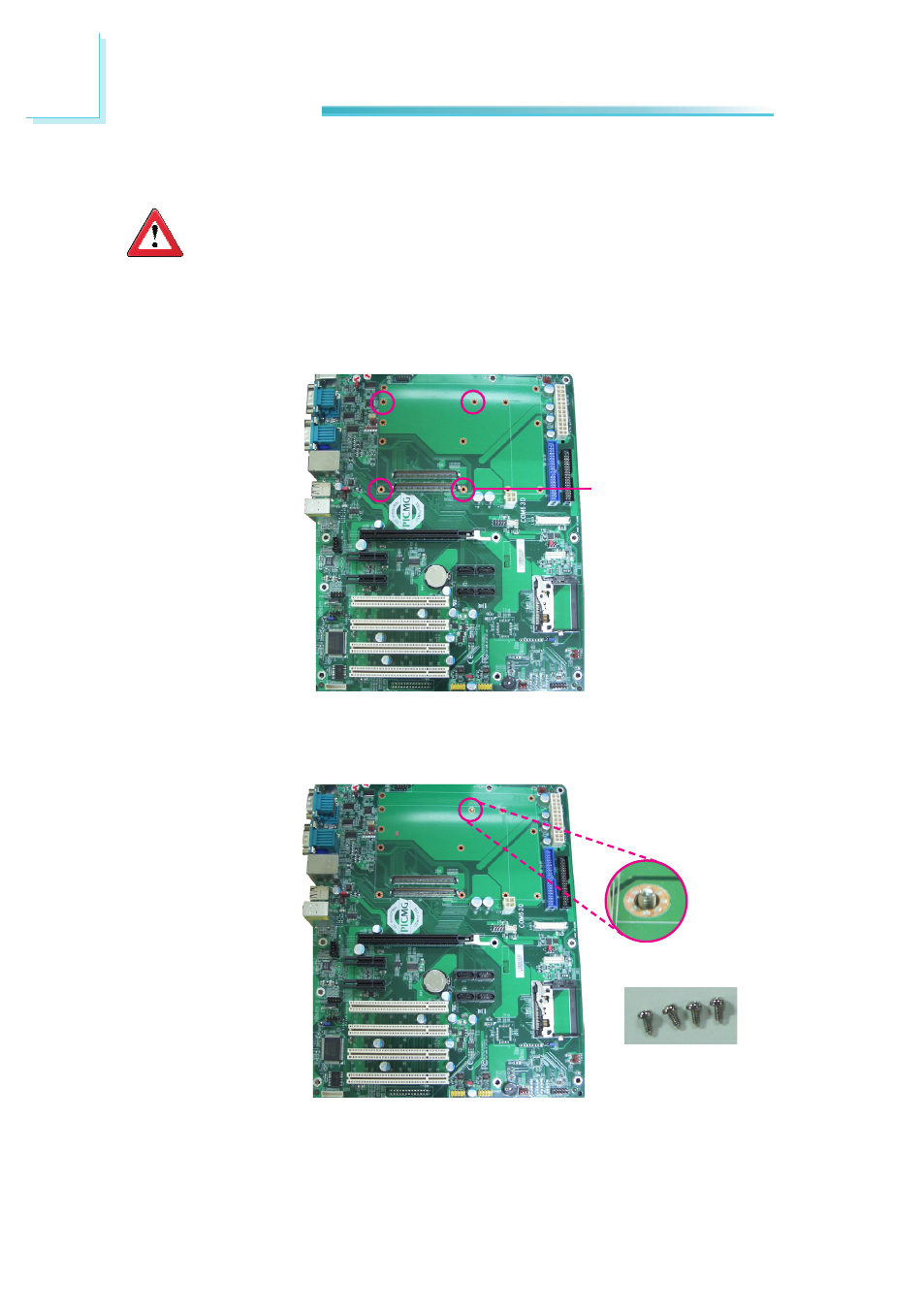

1. The photo below shows the locations of the mounting holes.
Important:
The carrier board used in this section is for reference purpose only and
may not resemble your carrier board. These illustrations are mainly
to guide you on how to install ML905-B onto the carrier board of your
choice.
2. Insert the provided mounting screws into the mounting holes - from the bot-
tom through the top of the carrier board.
Mounting hole
Mounting screws
