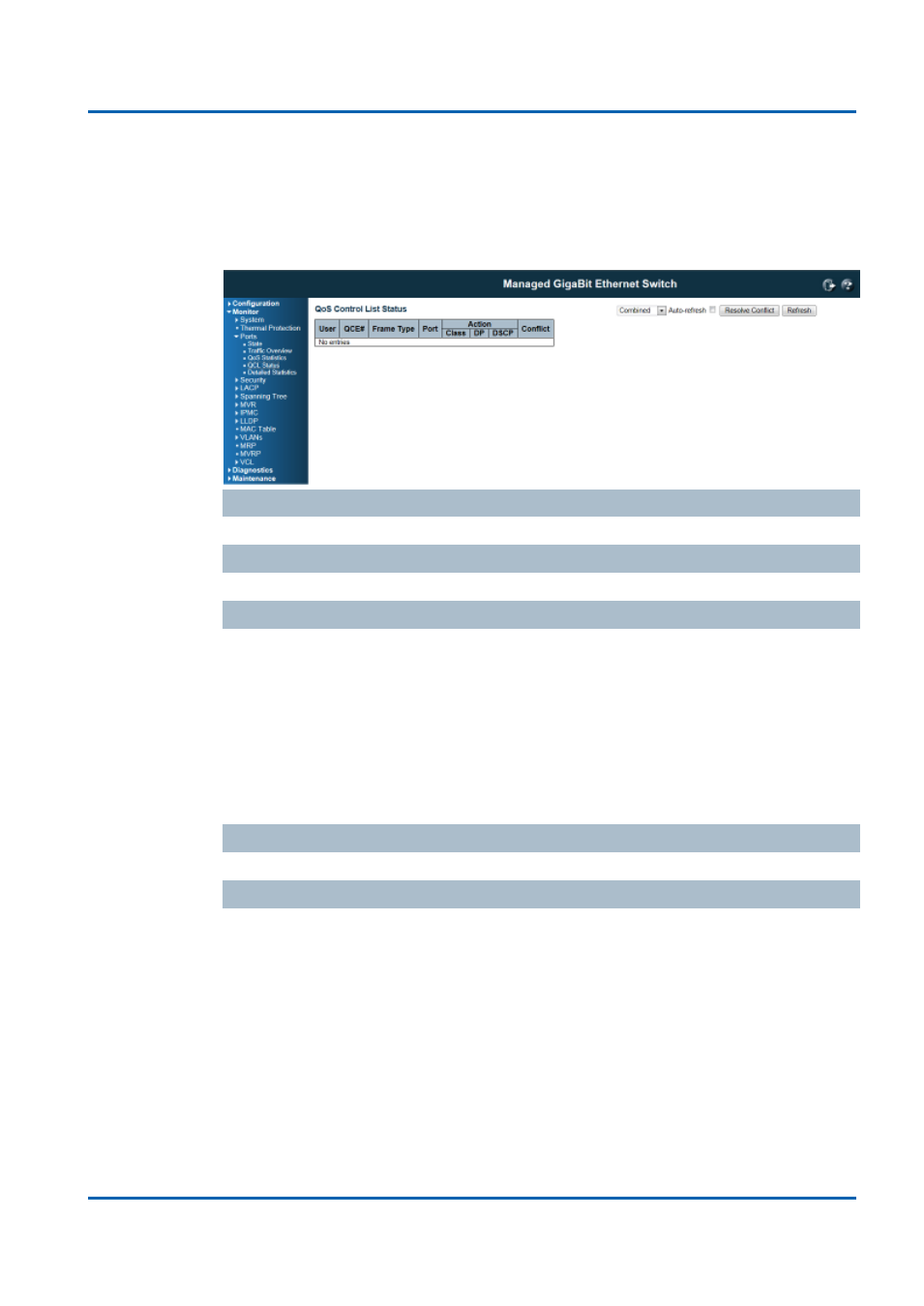

QCL Status
This page shows the QCL status by different QCL users. Each row describes the
QCE that is defined. It is a conflict if a specific QCE is not applied to the hardware
due to hardware limitations. The maximum number of QCEs is 256 on each switch.
User
Indicates the QCL user.
QCE#
Indicates the index of QCE.
Frame Type
Indicates the type of frame to look for incomming frames. Possible frame types are:
Any: The QCE will match all frame type.
Ethernet: Only Ethernet frames (with Ether Type 0x600-0xFFFF) are allowed.
LLC: Only (LLC) frames are allowed.
SNAP: Only (SNAP) frames are allowed.
IPv4: The QCE will match only IPV4 frames.
IPv6: The QCE will match only IPV6 frames.
Port
Indicates the list of ports configured with the QCE.
Action
Indicates the classification action taken on ingress frame if parameters configured
are matched with the frame's content.
There are three action fields: Class, DPL and DSCP.
Class: Classified QoS class; if a frame matches the QCE it will be put in the queue.
DPL: Drop Precedence Level; if a frame matches the QCE then DP level will set to
value displayed under DPL column.
DSCP: If a frame matches the QCE then DSCP will be classified with the value
displayed under DSCP column.
