Displaying and maintaining traffic policing and line
rate
Task Command
Remarks
Display interface line rate
configuration information.
display qos lr interface
[ interface-type interface-number ]
[ | { begin | exclude | include }
regular-expression ]
Available in any view
Traffic policing configuration example
NOTE:
•
The configuration examples were created on a WX5004 access controller and may vary with device
models.Check
to see where you configure Ethernet interfaces.
Network requirements
As shown in
•
GigabitEthernet 1/0/1 of AP is connected to GigabitEthernet 1/0/1 of AC.
•
Client A and Client B can access the Internet through AP and AC.
Perform traffic control for packets received on GigabitEthernet 1/0/1 of AC from Client A and Client B
respectively as follows:
•
Limit the rate of packets from Client A to 54 kbps. When the traffic rate is below 54 kbps, the traffic
is forwarded properly. When the traffic rate exceeds 54 kbps, the excess packets are marked with
IP precedence bk and then forwarded.
•
Limit the rate of packets from Client B to 500 kbps, and the excess packets are dropped.
•
Limit the sending rate on GigabitEthernet 1/0/2 of AC to 1000 kbps, and the excess packets are
dropped.

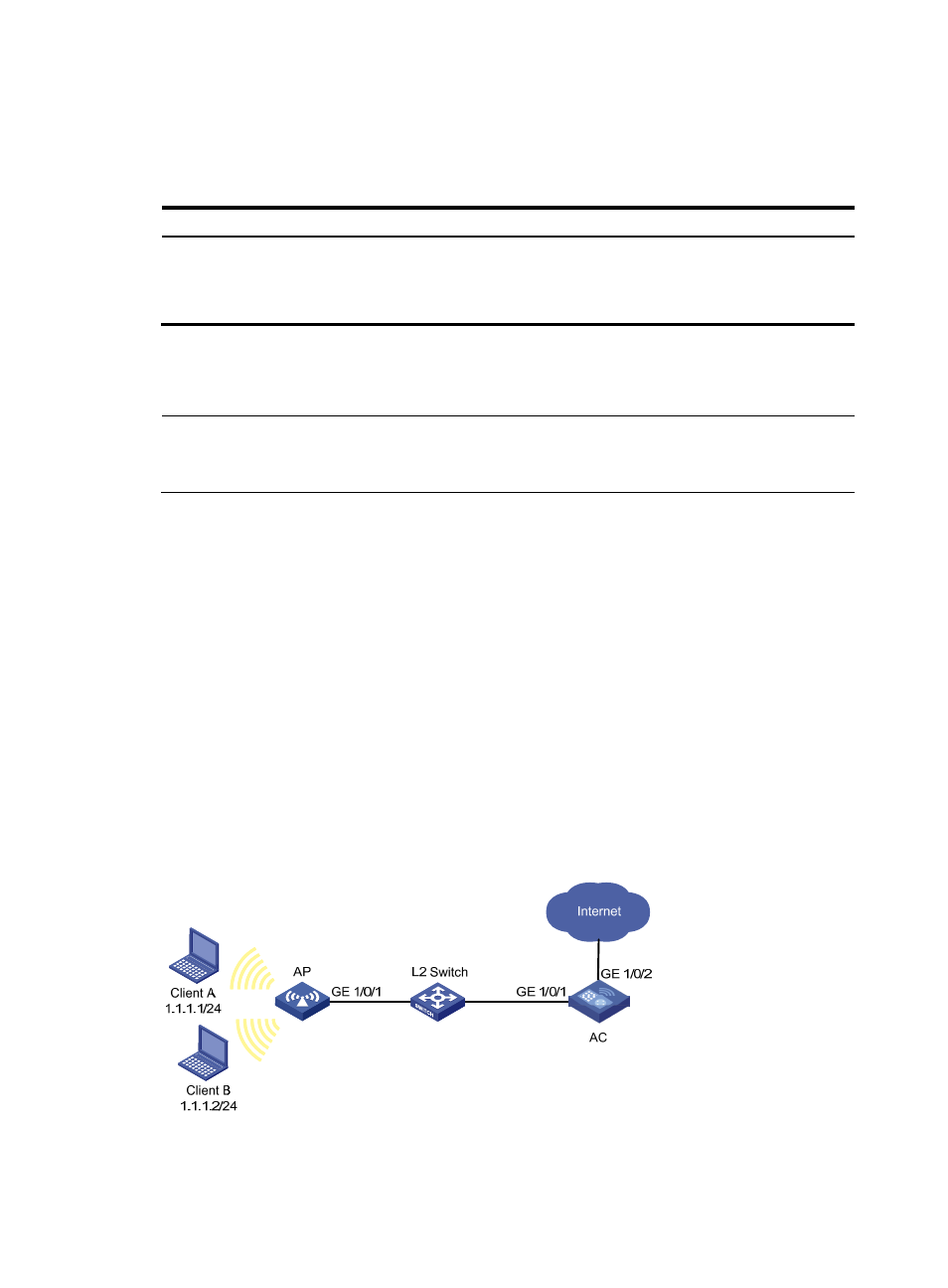

Figure 9 Network diagram
