LDK 8000 User’s Guide | Connectors
7-8
7.2.11
Teleprompter output / Reference input connector

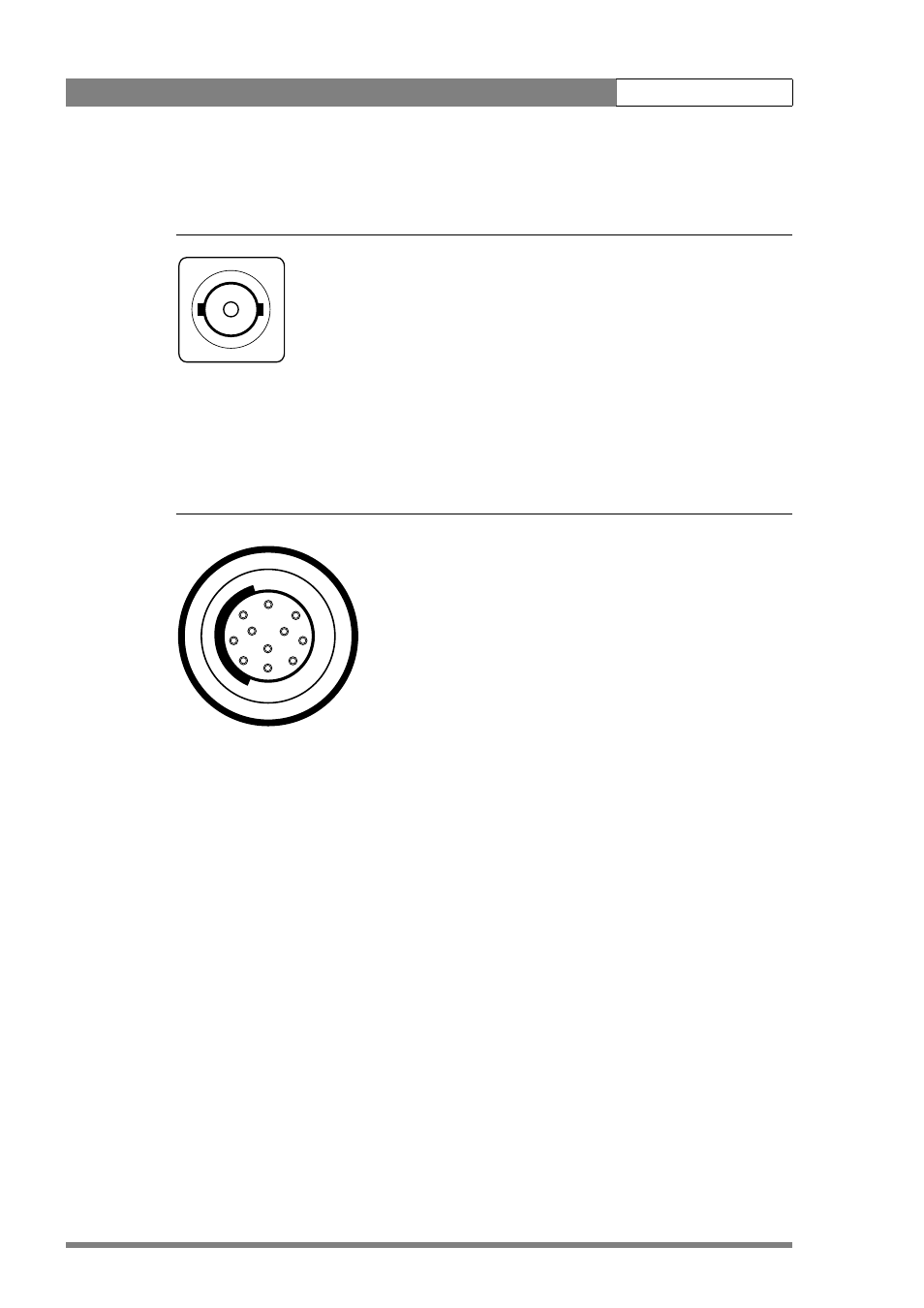

Figure 7-16. Teleprompter / Reference connector
7.2.12
Tracker communications connector
Figure 7-17. Tracker communications connector
Teleprompter - Triax mode
This socket supplies the 1Vpp teleprompter signal applied to
the Base Station.
Reference Input - Local mode
This connector is used to genlock the camera to a 0.6 Vpp HD
tri-level reference input signal.
BNC connector: panel view (X112)
4
1
2
3
5
6
7
8
9
10
11
1.
On-air signal return
2.
Tracker microphone return
3.
Tracker microphone input
4.
Production tracker
5.
Sidetone/engineering tracker
6.
Intercom return
7.
Program sound tracker
8.
Cameraman microphone
9.
Tally control tracker (Cmos level, R out = 1k)
10.
+12V; I max. = 100mA
11.
+12V return
Microphone level: -64dBu/-24dBu switchable
Microphone impedance: >600 ohm
Intercom output level: nom. 0 dBu , max +6 dBu
Intercom output impedance: <200 ohm
Fischer 11-pole female; panel view
Panel part number (X108): 3922 040 02463
