374 8 Programming: Cycles
8.6 SL Cy
cles

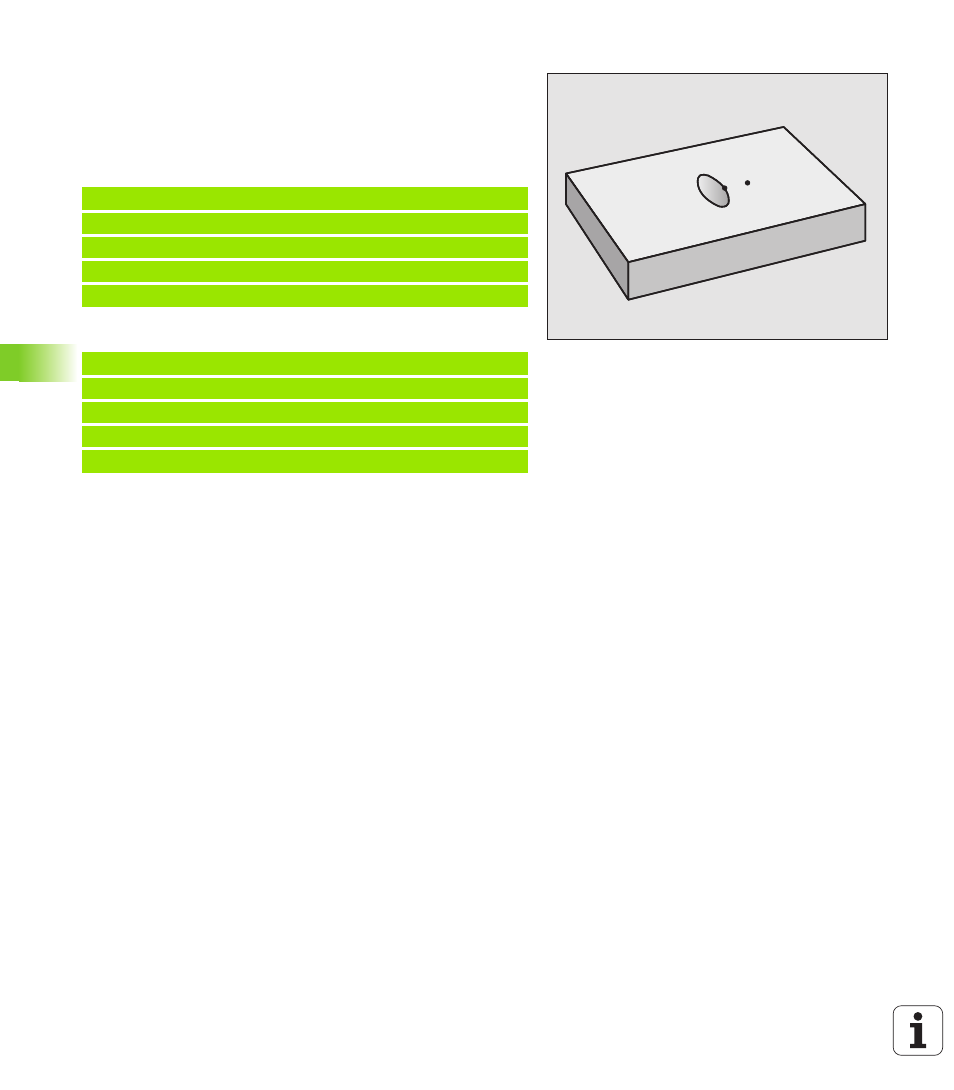

Area of intersection
Only the area where A and B overlap is to be machined. (The areas
covered by A or B alone are to be left unmachined.)
„ A and B must be pockets.
„ A must start inside of B.
Surface A:
Surface B:
A
B
51 LBL 1
52 L X+60 Y+50 RR
53 CC X+35 Y+50
54 C X+60 Y+50 DR-
55 LBL 0
56 LBL 2
57 L X+90 Y+50 RR
58 CC X+65 Y+50
59 C X+90 Y+50 DR-
60 LBL 0
