396
4-3. Do-it-yourself maintenance

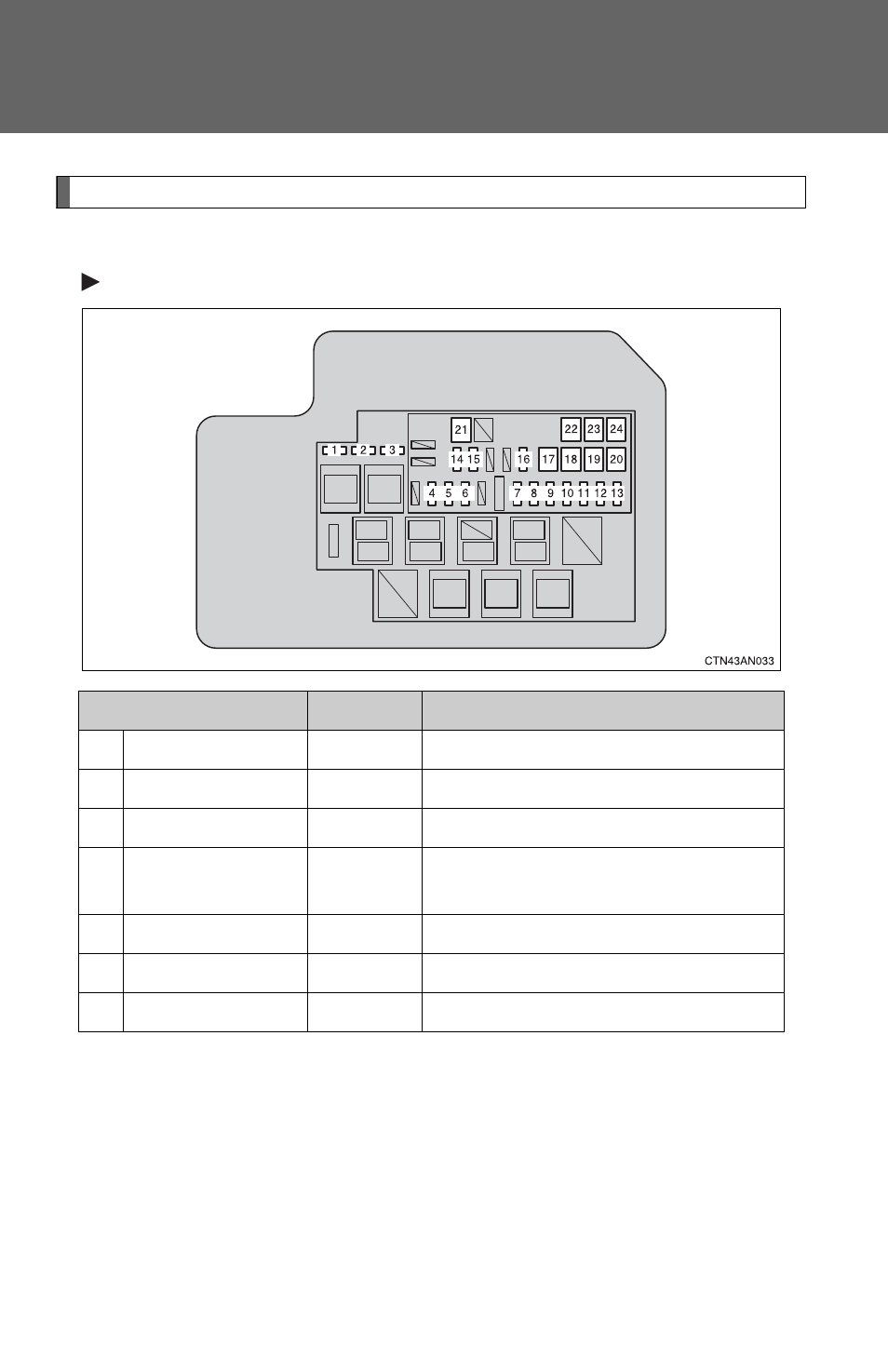

Fuse layout and amperage ratings
■
Engine compartment
Type A (passenger’s side)
Fuse Ampere Circuit
1 SPARE 30 A Spare fuse
2 SPARE 20 A Spare fuse
3 SPARE 10 A Spare fuse
4 ECU-B2 7.5 A
Air conditioning system, power win-
dows, smart key system
5 ALT-S 7.5 A Charging system
6 STR LOCK 20 A Smart key system
7 RAD NO.1 20 A Audio system
