400
4-3. Do-it-yourself maintenance
*
1
: Vehicles without towing package
*
2
: Vehicles with towing package
*
3
: Vehicles with 2.5 L 4-cylinder (2AR-FE) engine
*
4
: Vehicles with 3.5 L V6 (2GR-FE) engine
■

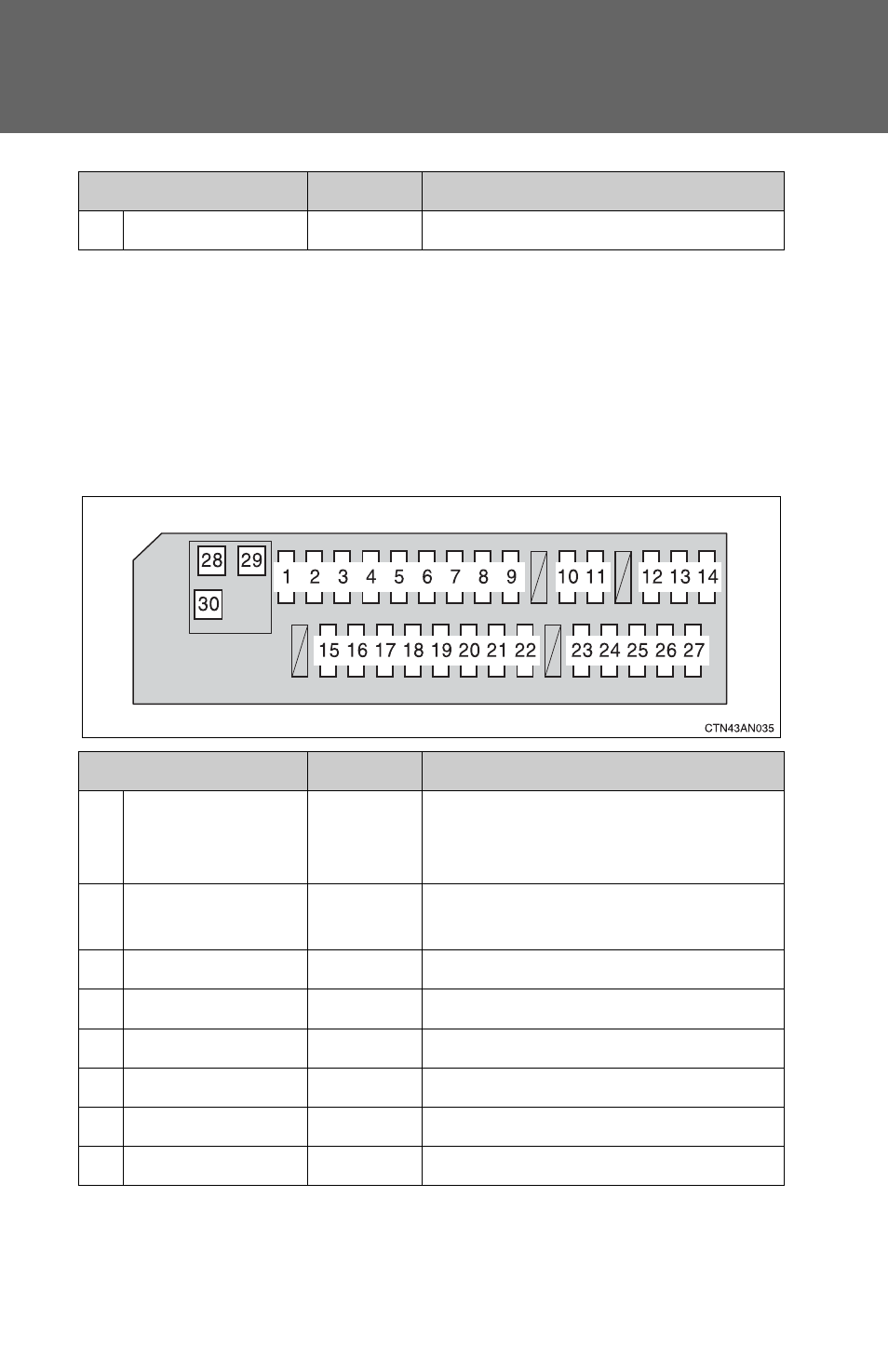

Under the instrument panel
20 A/F 20 A A/F sensor, fuel pump
*3
Fuse Ampere Circuit
1 TAIL 10 A
Parking lights, tail lights, license
plate light, front fog lights, rear side
marker lights
2 PANEL 7.5 A
Clock, instrument panel lights,
audio system
3 GAUGE 1 10 A Back-up lights, charging system
4 D FR DOOR 20 A Power windows (front doors)
5 RL DOOR 20 A Power windows
6 RR DOOR 20 A Power windows
7 S/ROOF 25 A Electric moon roof
8 CIG 15 A Power outlet
Fuse Ampere Circuit
