398
4-3. Do-it-yourself maintenance
*
1
: Vehicles with towing package
*
2
: Vehicles with 2.5 L 4-cylinder (2AR-FE) engine
*
3
: Vehicles with 3.5 L V6 (2GR-FE) engine

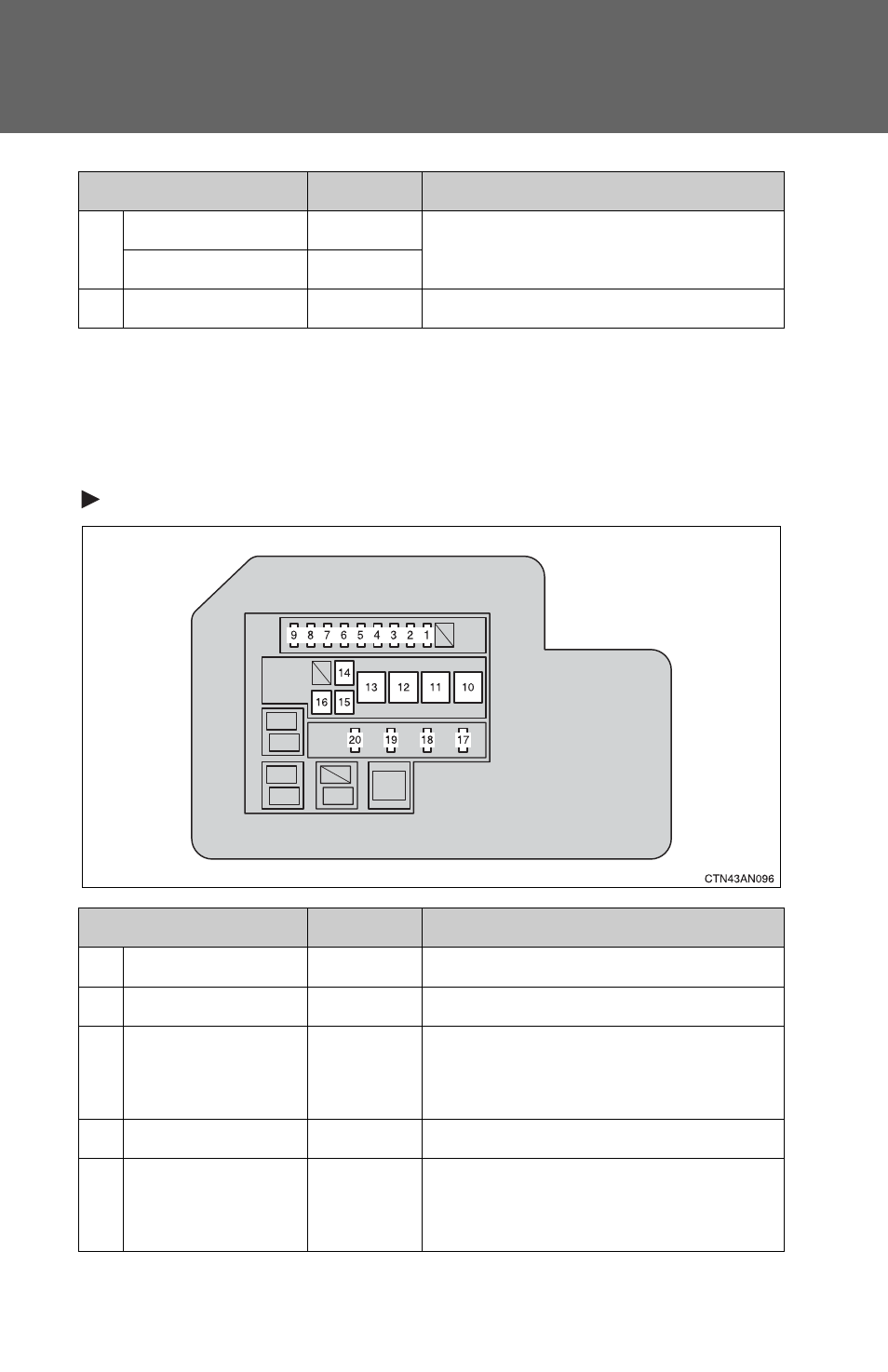

Type B (driver’s side)
23
CDS*
2
30 A
Electric cooling fan
FAN 1*
3
50 A
24 H-LP CLN 30 A No circuit
Fuse Ampere Circuit
1 AMP 30 A Audio system
2 AM2 30 A Starting system
3 IG2 15 A
Starting system, multiport fuel
injection system/sequential multi-
port fuel injection system
4 HAZ 10 A Emergency flashers
5 ETCS 10 A
Multiport fuel injection system/
sequential multiport fuel injection
system
Fuse Ampere Circuit
