TAC 106 Tests
Voltage distortion spectrum test require the use of additional external equipment. In particular, a
high bandwidth (100Khz) AC source, a high frequency coupling transformer and coupling
network as shown in figure TAC106-1 of the Mil-Std 704 standard. For this test, the Lx/Ls Series
AC source can be programmed to a steady state condition of 400 Hz and Vnominal of 115 Vrms
or 230 Vrms.

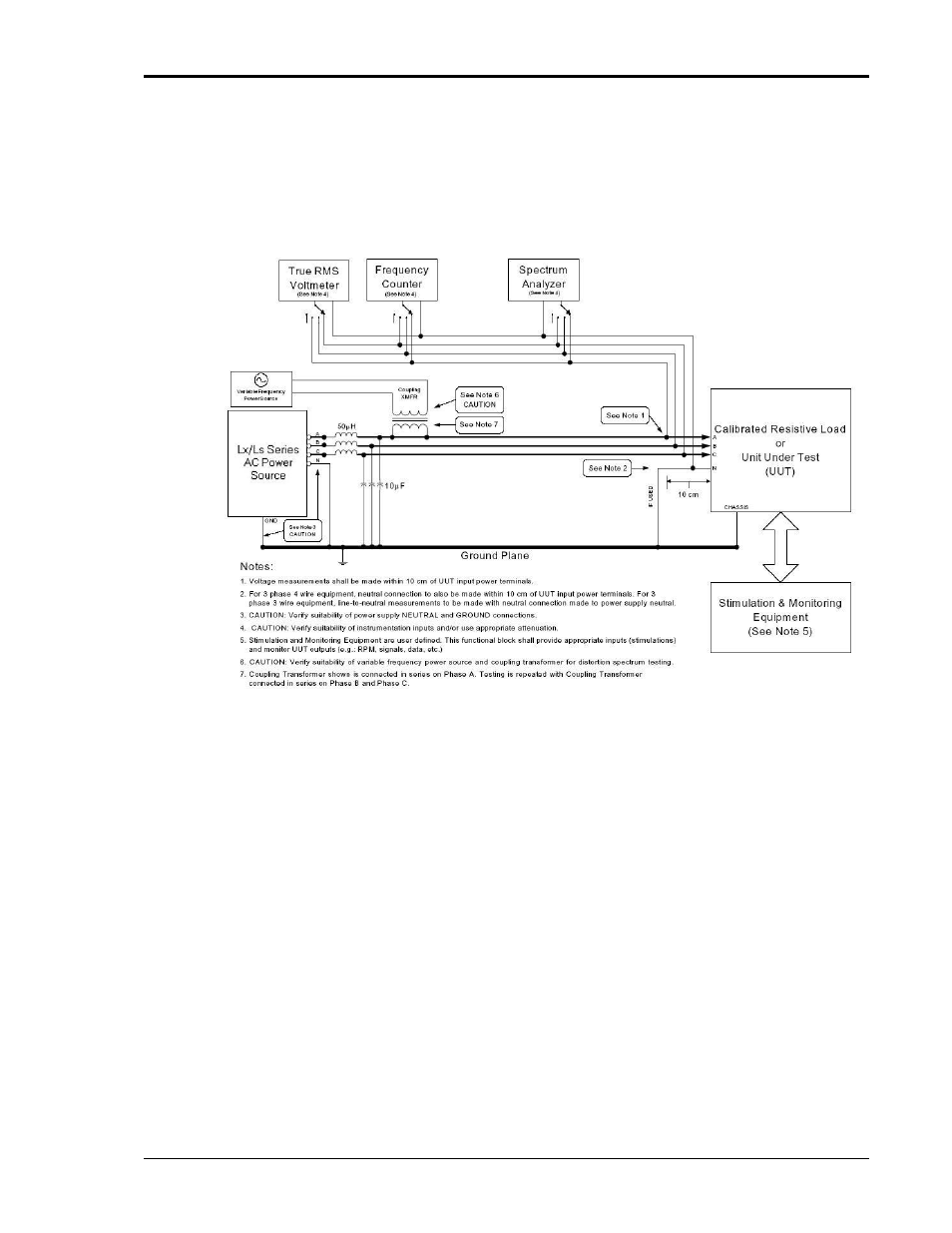

Figure 10-9: Required TAC-106 Test Setup.
