CX462 Audio System Controller Setup And Installation Guide
CLOUD ELECTRONICS LIMITED
3 V3 280904
5.2 Music control - Local or Remote
The music source and music level control functions can be controlled from either the front
panel or a remote control plate located up to 100m from the CX462. There are two remote
control plates available for the CX462, the RSL-6 and the RL-1. The RSL-6 should be used
when remote control of music source and music level is required whereas the RL-1 can be
used when the application calls for remote control of the level only (source selection via front
panel). RSL-6 and RL-1 remote control plates can be mounted onto a standard British flush
or surface mounted 25mm deep back box. Two-core cable with overall screen should be

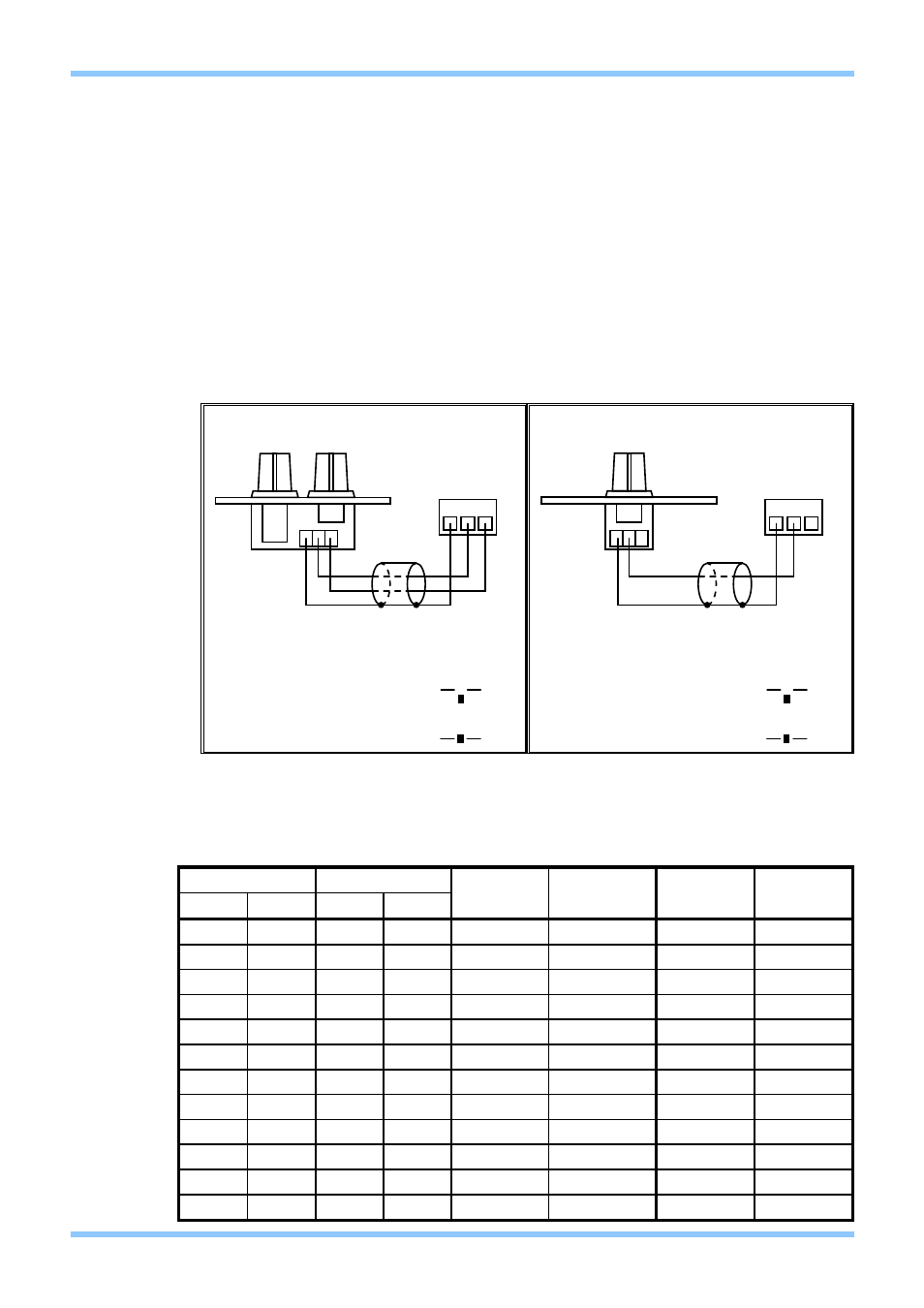

used to connect the remote controls to the Cloud CX462 and the diagrams below show how
to connect the two remote plates. Self-adhesive labels (supplied) can be affixed to the front
panel and/or RSL-6 to identify the available input sources.
For remote operation of music level (RL-1) or level and source select (RSL-6), the front panel
switch must be set to the ‘REMOTE’ position. The rear panel switch marked ‘REMOTE
TYPE’ should be set to the ‘ANALOGUE’ position. Jumpers J7-J10 determine whether the
control of the music controls is determined by the rear panel switch. A table containing the
possible configurations and their effects is detailed below.
STANDARD WIRING CONVENTION
USE TWO CORE SCREENED CABLE
FRONT PANEL SWITCH SHOULD BE
SET TO THE ‘REMOTE’ POSITION
REAR PANEL SWITCH SHOULD BE
SET TO THE ‘ANALOGUE’ POSITION
REMOTE CONTROL OF MUSIC LEVEL
FRONT SWITCH
REMOTE (IN)
REAR SWITCH
ANALOGUE (OUT)
1 2 3
3 POLE
CONNECTOR
1 2 3
RL-1
STANDARD WIRING CONVENTION
USE TWO CORE SCREENED CABLE
FRONT PANEL SWITCH SHOULD BE
SET TO THE ‘REMOTE’ POSITION
REAR PANEL SWITCH SHOULD BE
SET TO THE ‘ANALOGUE’ POSITION
REMOTE CONTROL OF MUSIC
FRONT SWITCH
REMOTE (IN)
REAR SWITCH
ANALOGUE (OUT)
1 2 3
3 POLE
CONNECTOR
1 2 3
RSL-6
FRONT/SWITCH AN/SW FRONT
SWITCH
REAR
SWITCH
LEVEL
SOURCE
SELECT
J9 J10 J7 J8
N/A N/A N/A N/A ‘LOCAL’ N/A FRONT FRONT
‘FR’ ‘FR’ N/A N/A N/A N/A FRONT FRONT
‘SW’ ‘SW’ ‘SW’ ‘SW’ ‘REMOTE’ ‘ANALOGUE’ RSL-6 RSL-6
‘SW’ ‘SW’ ‘SW’ ‘SW’ ‘REMOTE’ ‘DIGITAL’ CDI-S100 CDI-S100
‘SW’ ‘FR’ ‘SW’ N/A ‘REMOTE’ ‘ANALOGUE’ FRONT RSL-6
‘SW’ ‘FR’ ‘SW’ N/A ‘REMOTE’ ‘DIGITAL’ FRONT CDI-S100
‘FR’ ‘SW’ N/A ‘SW’ ‘REMOTE’ ‘ANALOGUE’ RSL-6/RL-1 FRONT
‘FR’ ‘SW’ N/A ‘SW’ ‘REMOTE’ ‘DIGITAL’ CDI-S100 FRONT
‘SW’ ‘SW’ N/A N/A ‘REMOTE’ ‘ANALOGUE’ RSL-6 RSL-6
‘SW’ ‘SW’ ‘AN’ ‘AN’ ‘REMOTE’ N/A RSL-6 RSL-6
‘SW’ ‘SW’ ‘AN’ ‘SW’ ‘REMOTE’ ‘DIGITAL’ CDI-S100 RSL-6
‘SW’ ‘SW’ ‘SW’ ‘AN’ ‘REMOTE’ ‘DIGITAL’ RSL-6/RL-1 CDI-S100
