Hardware Installation
1
DIO Connector

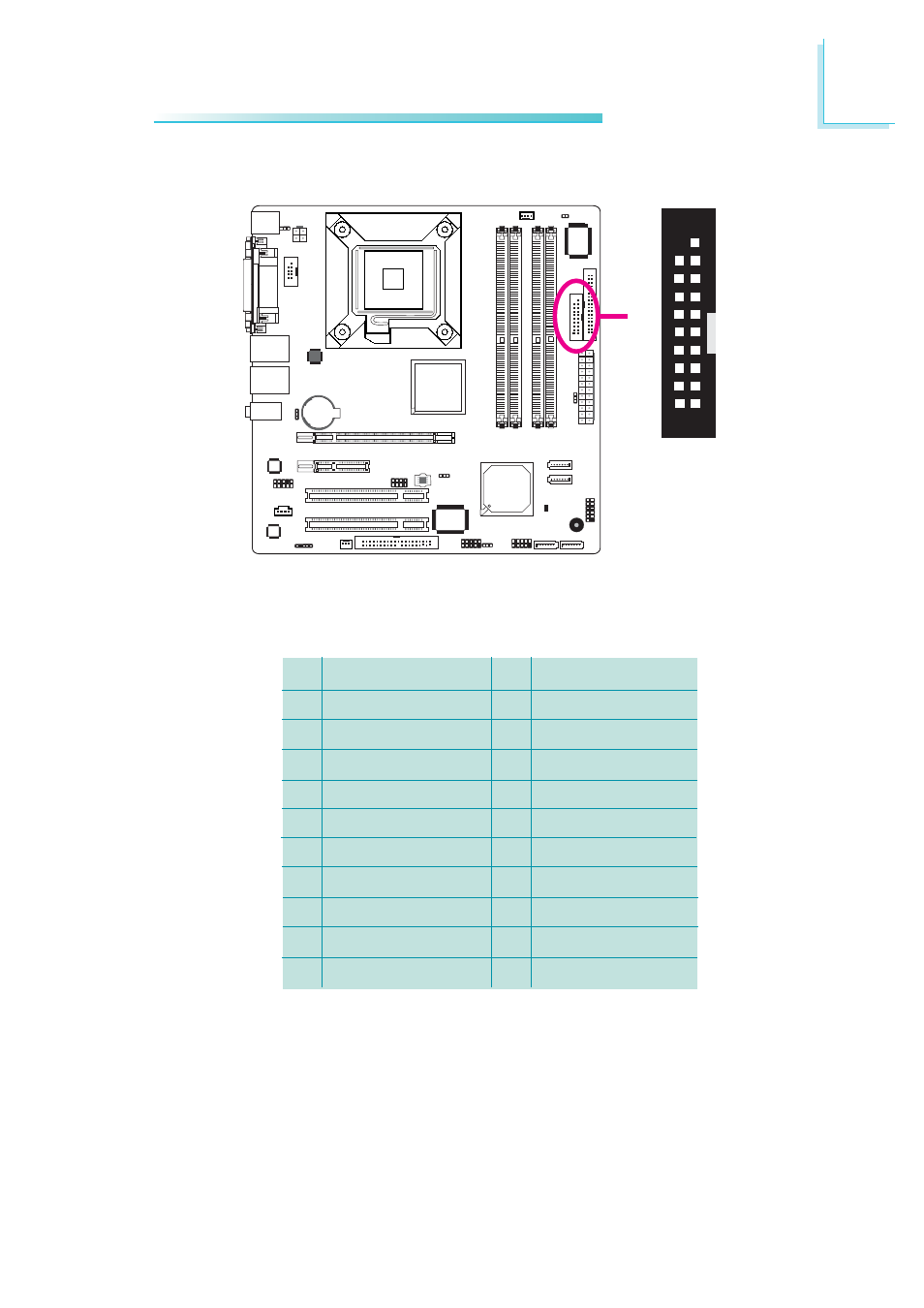

The DIO (Digital I/O) connector provides powering-on function to
an external device that is connected to this connector.
Pins
1
3
5
7
9
1 1
1 3
1 5
1 7
1 9
Function
GND
DIO7
DIO6
DIO5
DIO4
DIO3
DIO2
DIO1
DIO0
GND
Pins
2
4
6
8
1 0
1 2
1 4
1 6
1 8
Function
+12V
+12V
GND
VCC
VCC
GND
5VSB
5VSB
GND
