Fluke Biomedical ESA609 - Manual (Page 34)

ESA609
Users Manual
22
Conductive Part
DUT_PE
DUT_L2
DUT_L1
L2
REV
POL
PE
PE
Test
Lead
Device Under Test
MD
hpf24.eps

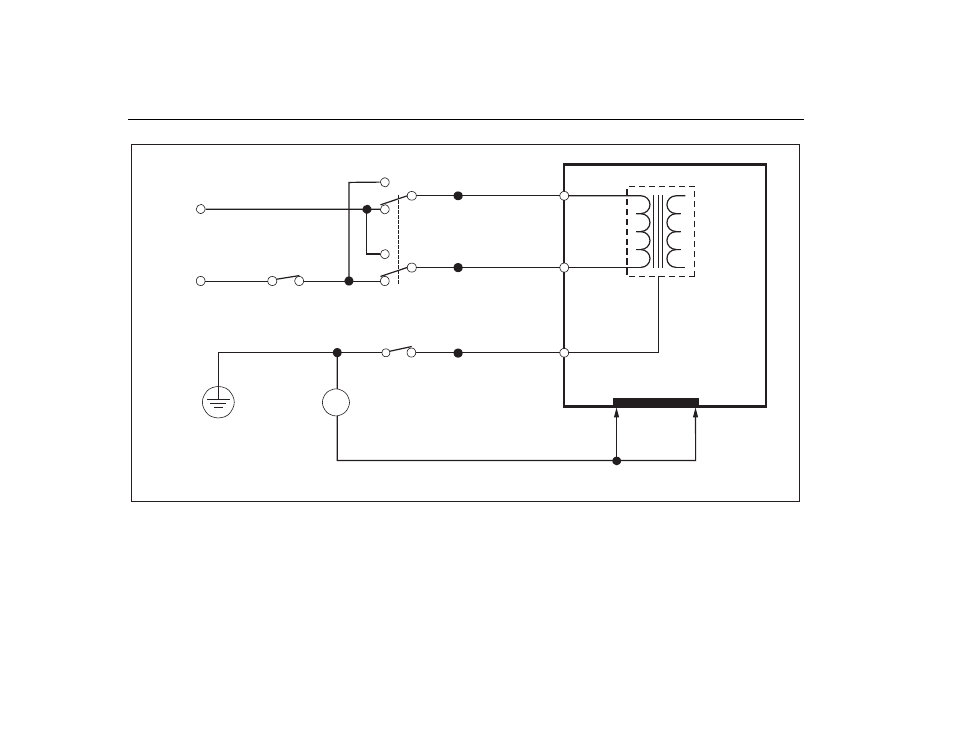

Figure 12. Direct-Equipment Leakage Test Schematic
