Pub. 42004-708L2B
Model 10962-001 and 10962-002 AMI Redundant Controller Modules Page: 3 of 17
f:\standard ioms - current release\42004 instr. manuals\42004-708l2b.doc
06/10
Block Diagrams

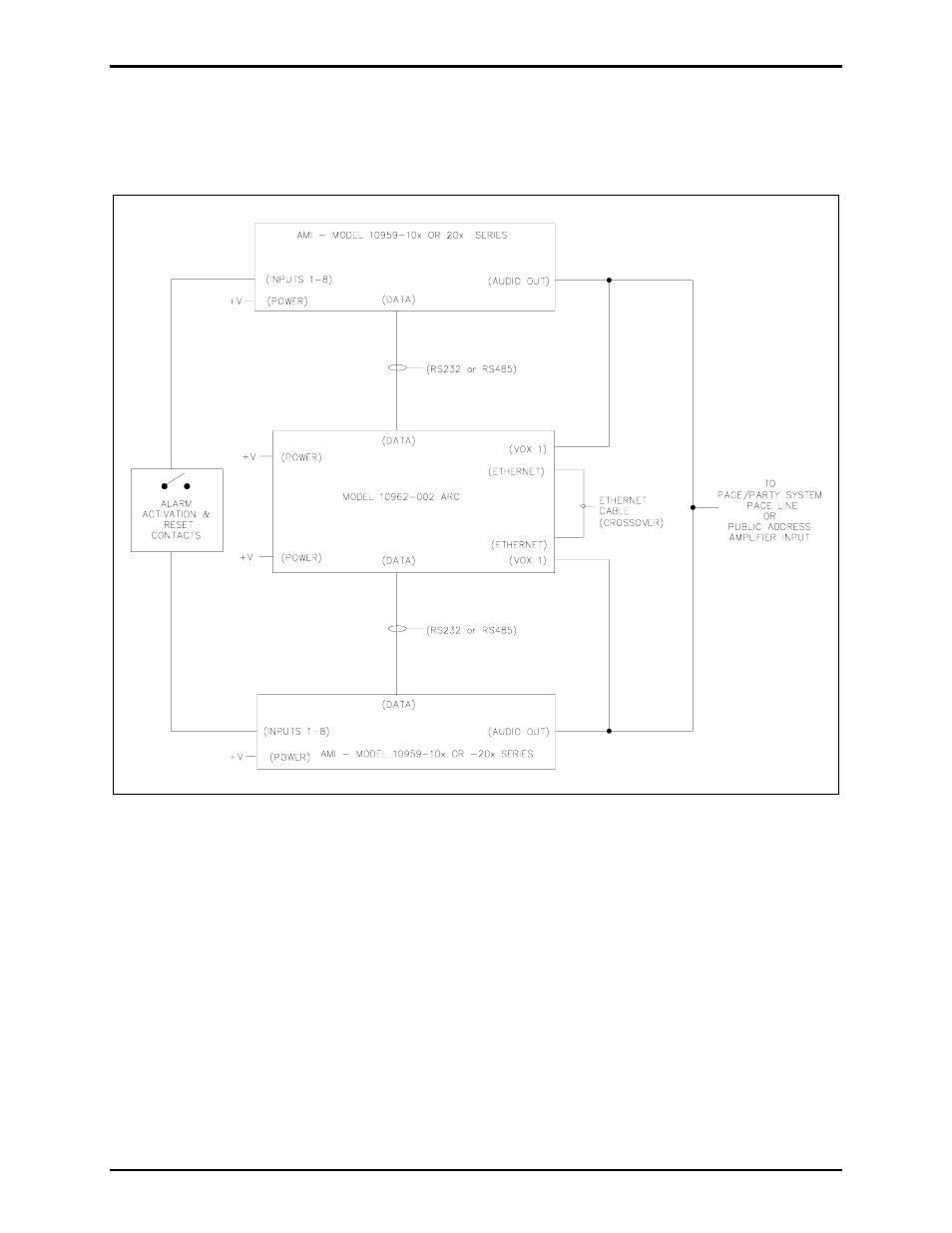

Figure 3 shows the equipment block diagram when the ARC module and AMIs are installed in the same
location.
Figure 3. Model 10962-002 ARC and AMI Block Diagram
