ICS Zone 2/22 Weatherproof Page/Party

®

Station

Page 21 of 33

f:\standard ioms - current release\42004 instr. manuals\42004-734l2d.doc
11/14

Input 1 or 2 Wiring Configuration with the SmartSeries Option

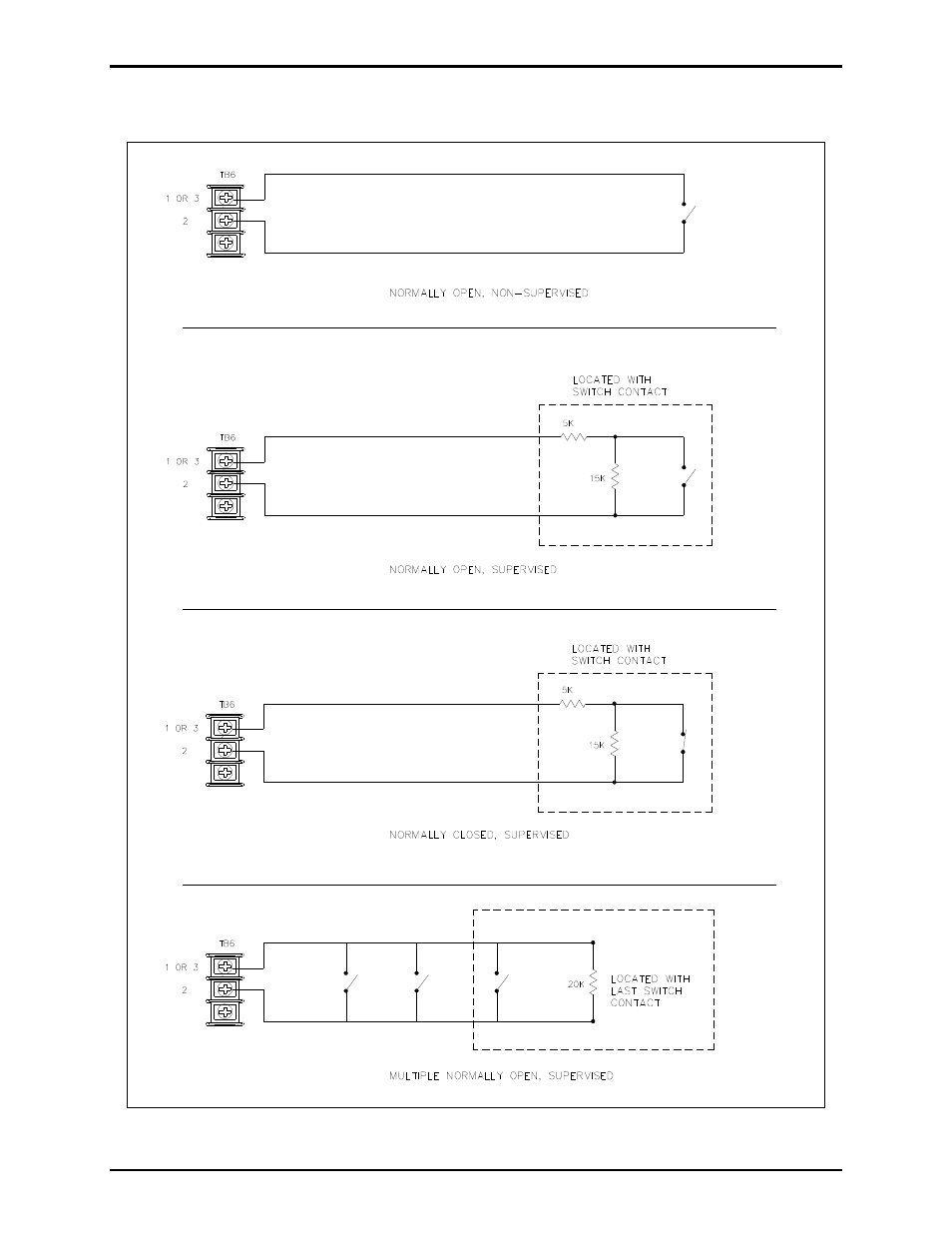

Figure 15. Input 1 or 2 Wiring Configuration with the SmartSeries Option
