Installation
Planning the Installation
Mechanical Receipt Inspection
The ILD1000A Local Desk Set is shipped in a cardboard container with inserts. Thoroughly inspect it as
soon as possible after delivery. In-transit damage should be immediately reported to the transportation
company.
Mounting
The ILD1000A Desk Set can be placed on a desk or mounted vertically on a wall. To wall mount the
desk set, remove the four bottom screws from the base and then rotate the base 180
. Reinstall the four
screws to the base and rotate the handset hook located on the front of the unit.
FCC Interference Warnings
The FCC requires that manuals pertaining to Class A and Class B computing devices contain warnings
about possible interference with local and residential radio and TV reception. Please read these warnings
and all safety information in the Foreword section of this manual.

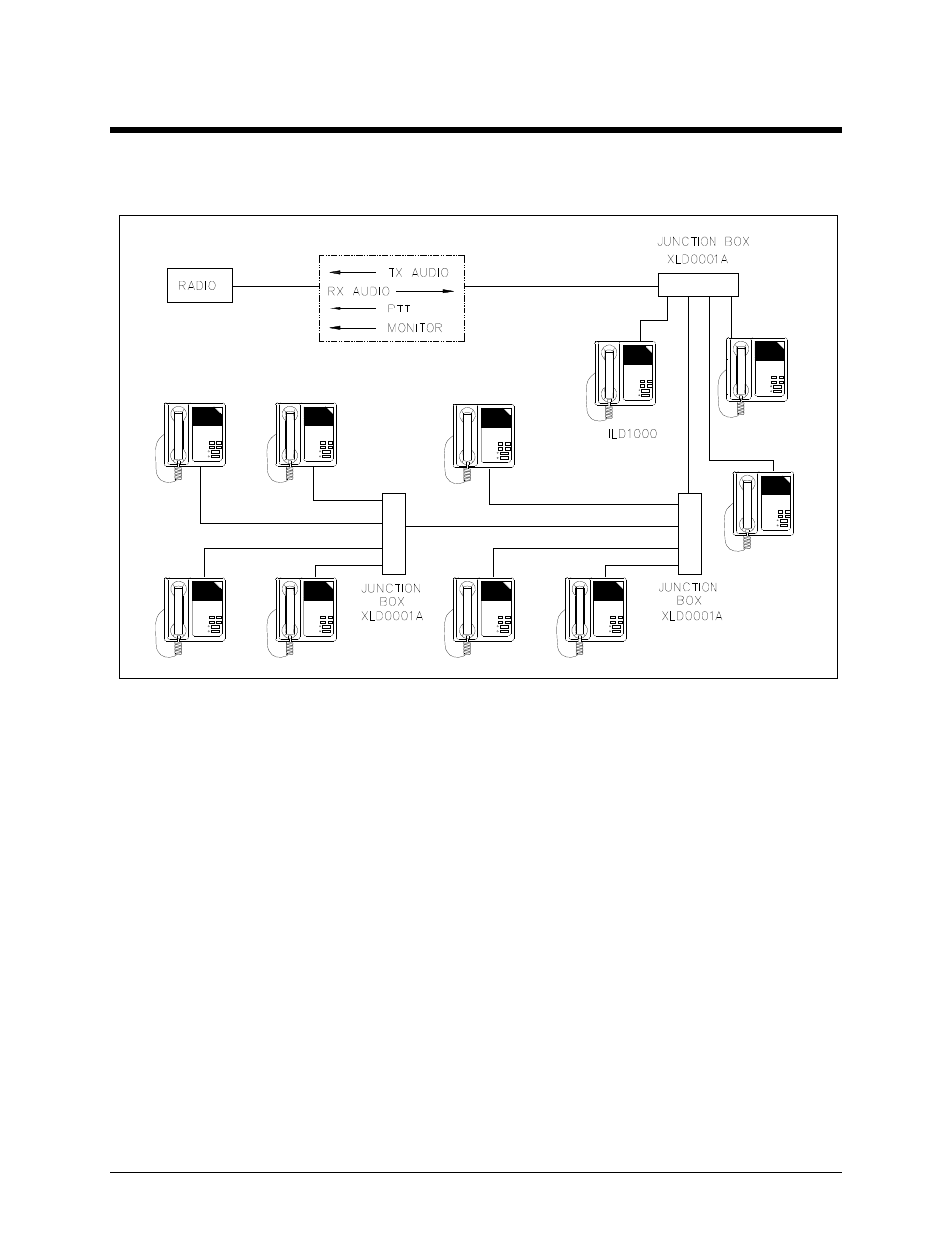

Figure 2. Sample ILD1000A Desk Set Installation Diagram -
Shown connected in parallel within one building.
N OTE : Maximum distance from the radio is limited to 1000 feet of total cable length.
