Installation - Diffuser and Remote Panel (TSCP)
I - 3
IMPORTANT!
The location of the discharge diffuser and the TSCP are critical for optimum performance of the
Greenheat space heat system.
IMPORTANT!
DO NOT install the TSCP in the blast area of the space heater or near any other source of heat.
Airflow
Diffuser Height (ft.)
(cfm)
Minimum
Recommended
Maximum
4,000
15
20
25
6,000
15
20
25
8,000
20
20-25
30
10,000
20
25-30
35
13,000
25
30-35
40
Step 1 Install Diffuser
Using self-tapping screws, attach diffuser to the
ductwork or unit. Be sure to maintain the
recommended floor to diffuser height. Refer to the
chart to the right for the recommended diffuser
height. See figures #7 and #8.
Step 2 Install TSCP
When installing the TSCP, the locataion is critical to performance of the Greenheat space heat system. The
TSCP should be installed 5-6 feet above the floor. It is recommended that the TSCP be installed on an outside
wall, in the space, and close to any source of infiltration such as dock doors. DO NOT install the TSCP in the
blast area of the heater or near any other source of heat. Refer to figure #9.
h
h
Blast Area
Recommended
TSCP Location
Indoor Mounted
Unit
Rooftop Unit

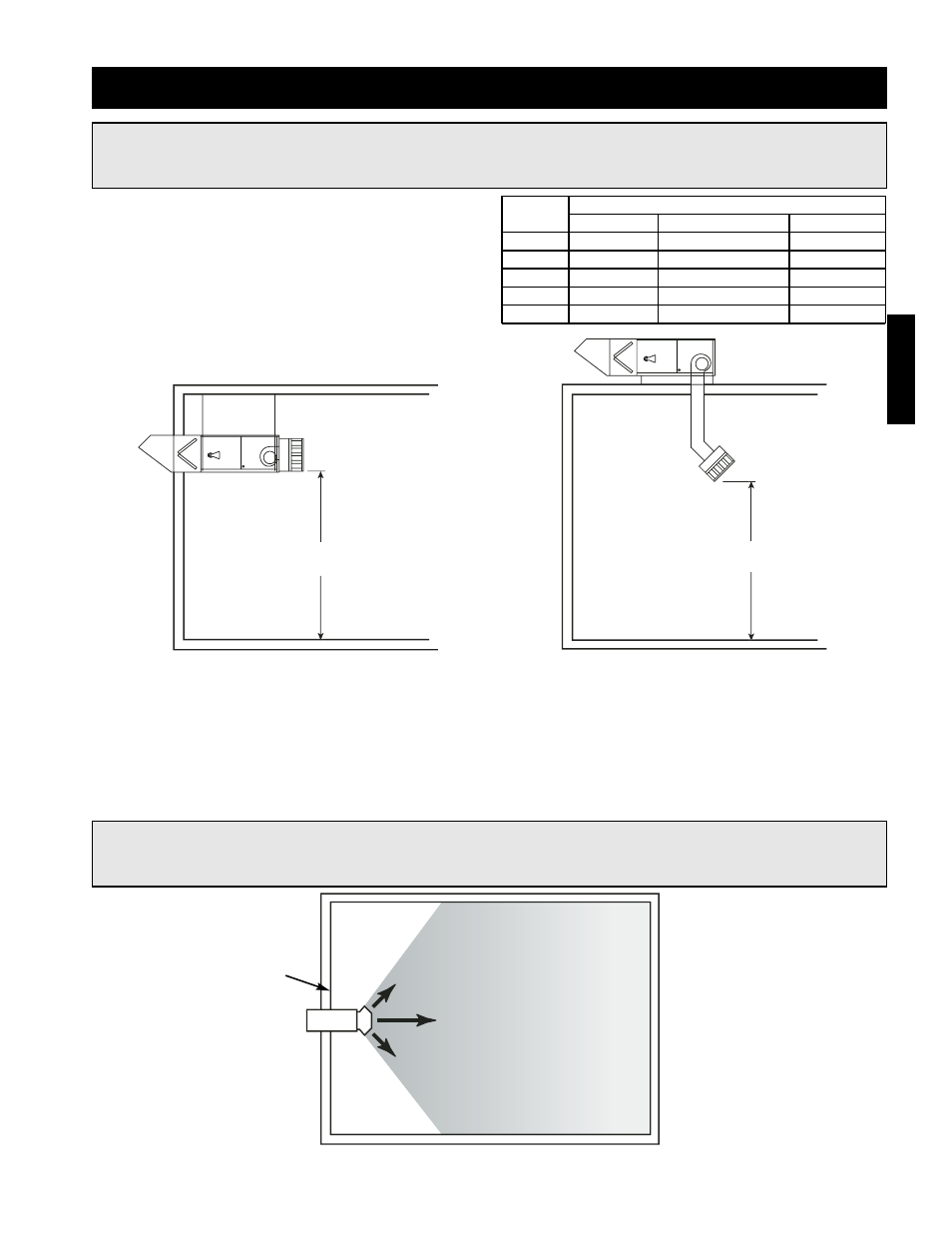

Figure 7.
Thru-wall Diffuser Height
Figure 8.
Rooftop Diffuser Height
Figure 9.
TSCP Location
