INSTALLATIONS
10 IB893 User’s Manual

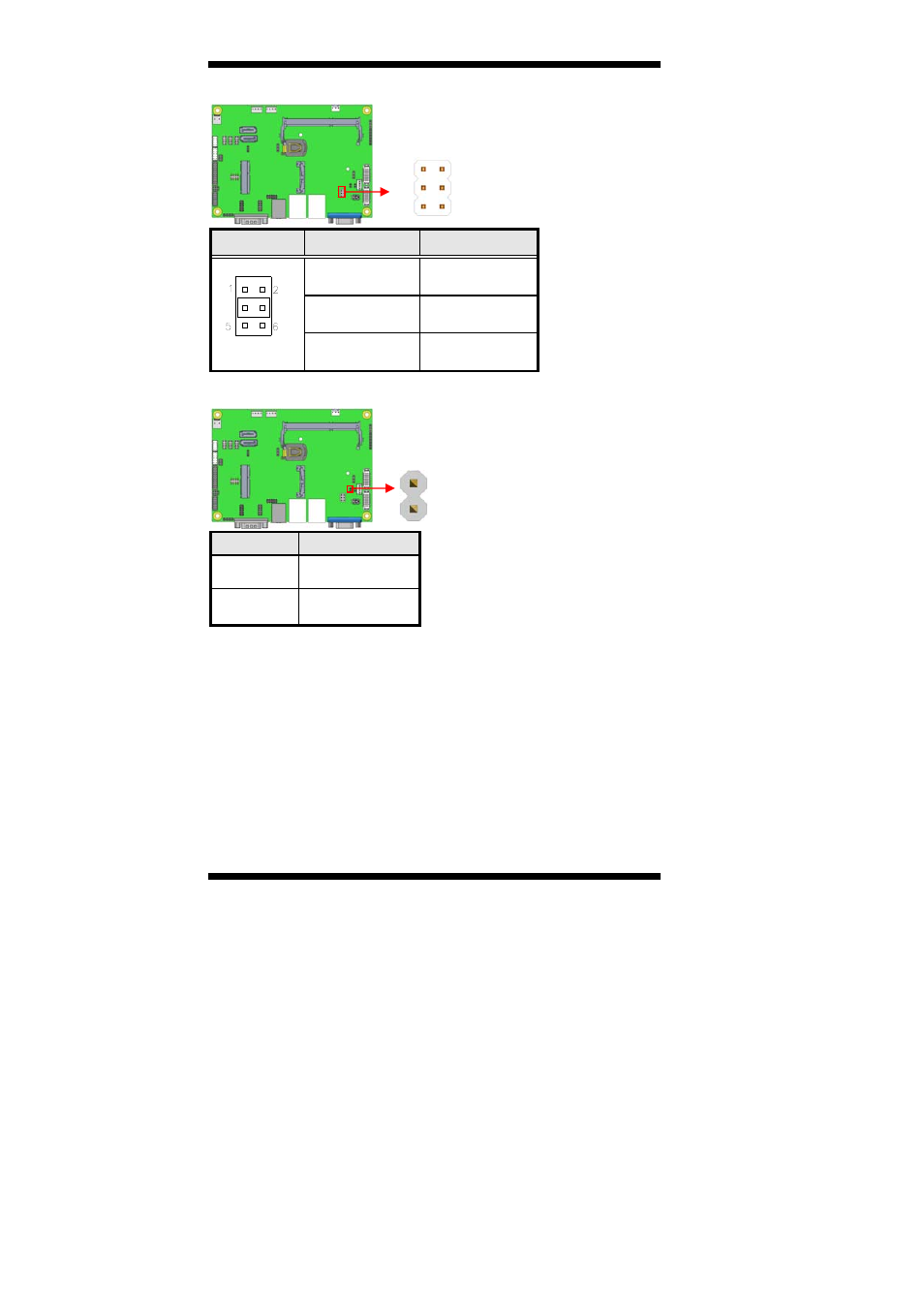

JP9: BL Voltage Setting
JP9 Setting Function
Pin 1-2
Short/Closed
+3.3V
Pin 3-4
Short/Closed
+5V
Pin 5-6
Short/Closed
+12V(Default)
JP10: BL_ADJ_Mode Setting
JP10 Function
Open
DC
Close
PWM
2
6
1
5
1
2
