INSTALLATIONS
IB893 User’s Manual
17

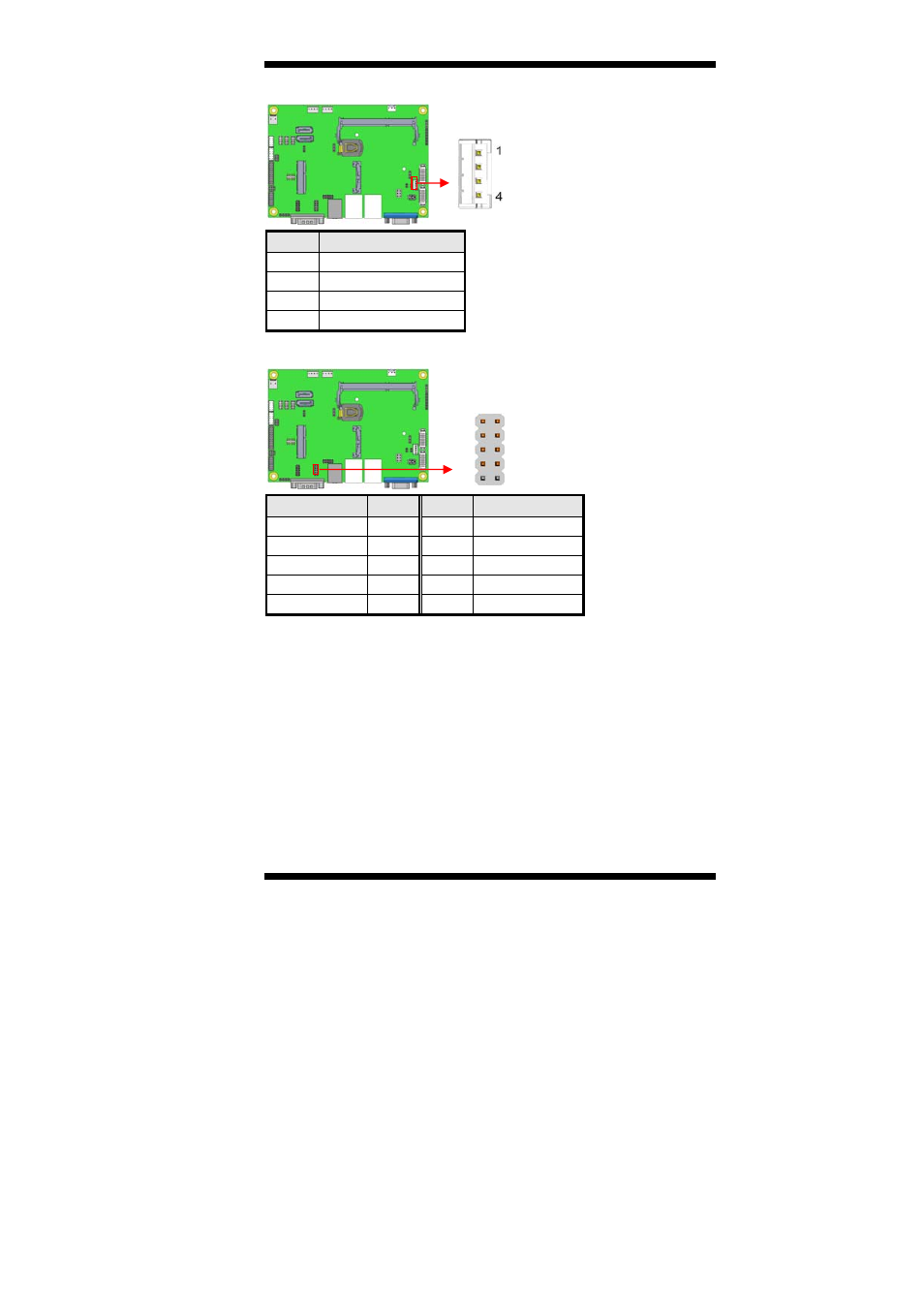

CN10: LCD Backlight Connector
Pin #
Signal Name
1 +12V
2 Backlight
Enable
3 Brightness
Control
4 Ground
J10: Digital I/O
Signal Name
Pin #
Pin #
Signal Name
GND 1
2 VCC
OUT3 3
4 OUT1
OUT2 5
6 OUT0
IN3 7
8 IN1
IN2 9
10 IN0
9
1
10
2
