Description
2013-08-13
33

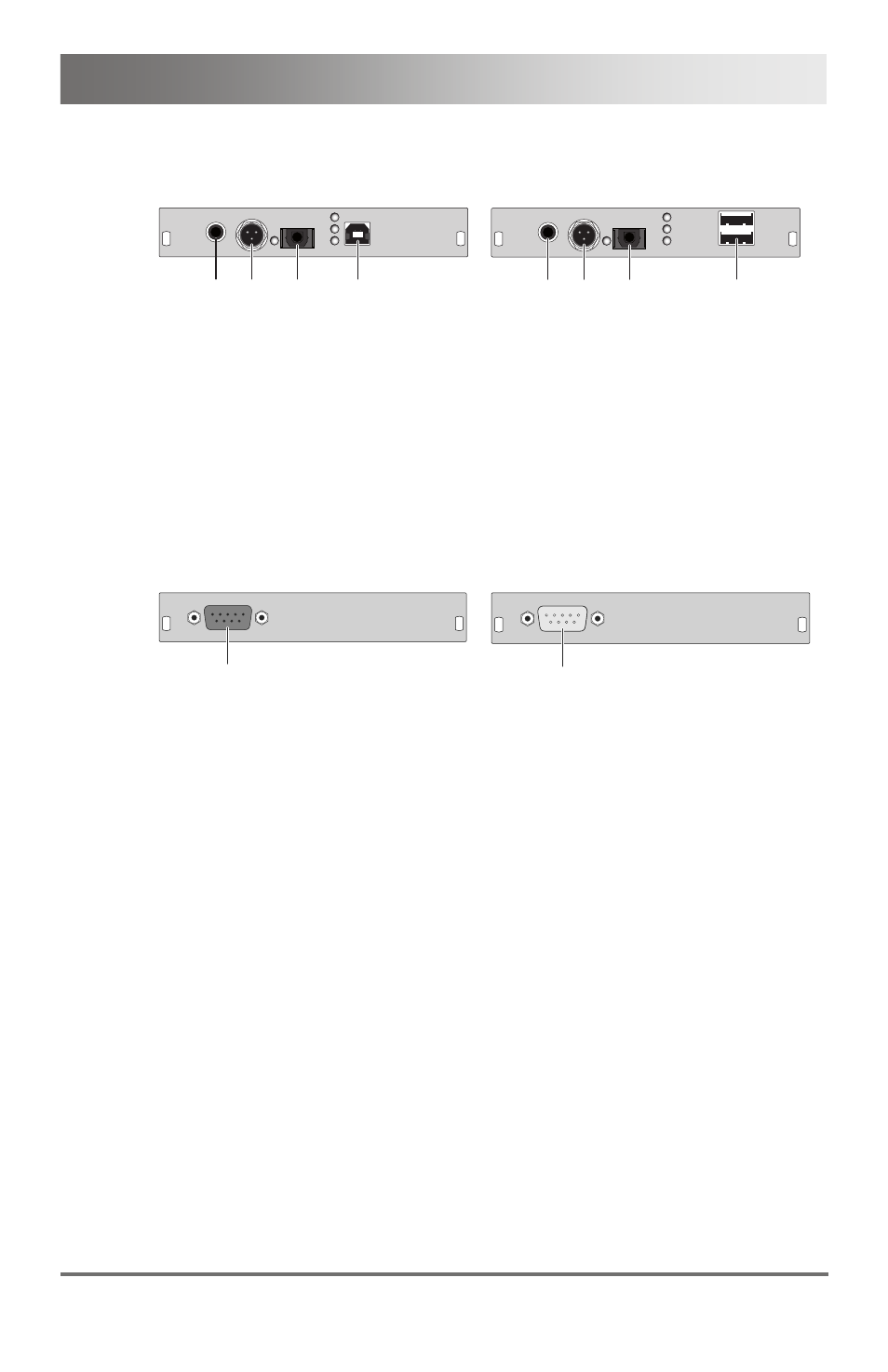

3.6.31 Model L- / R474-BDE
CPU Module
CON Module
1
3
4
2
1
3
2
4
Rear View
Rear View
1
S/PDIF input (RCA)
2
AES/EBU input (Mini-XLR)
3
S/PDIF input (TOSLINK)
4
To CPU: USB 2.0
1
S/PDIF output (RCA)
2
AES/EBU output (Mini-XLR)
3
S/PDIF output (TOSLINK)
4
Connect to USB 2.0 devices
Pos: 47 /806-IHSE/Beschreibung/Geräteansichten/474-xx/Typ L- / R474-BSX @ 9\mod_1362472913267_6.doc @ 71270 @ 3 @ 4
3.6.32 Model L- / R474-BSX
CPU Module
CON Module
1
1
Rear View
Rear View
1
Connect to serial (D-Sub 9)
1
Connect to serial (D-Sub 9)
