Draco KVM Extender
34
2013-08-13
Pos: 49 /806-IHSE/Beschreibung/Geräteansichten/474-xx/Typ L- / R474-BDD @ 6\mod_1304583696426_6.doc @ 51074 @ 3 @ 1

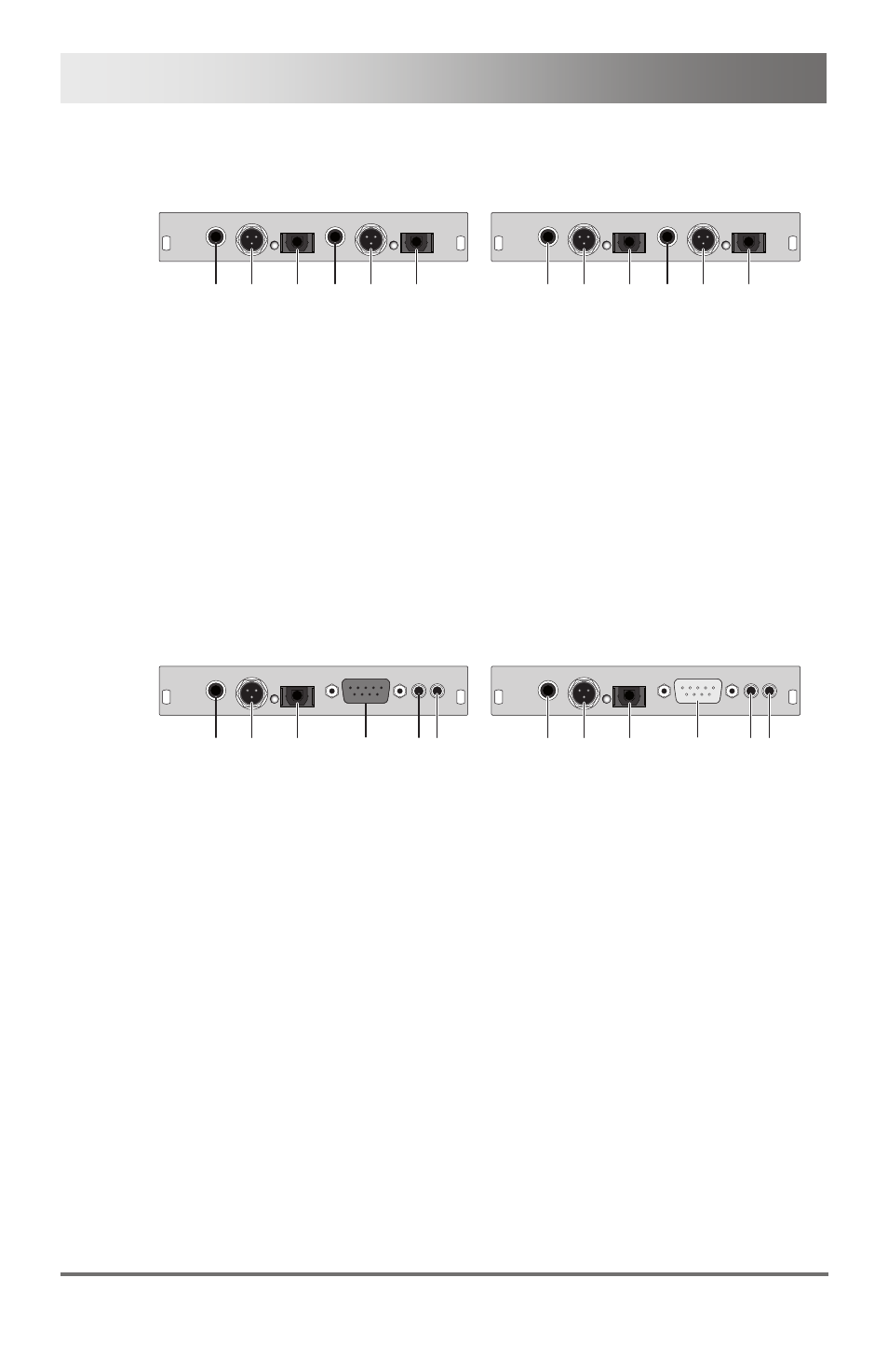

3.6.33 Model L- / R474-BDD
CPU Module
CON Module
1
3
2
4
5
6
1
3
2
4
5
6
Rear View
Rear View
1
S/PDIF input (RCA)
2
AES/EBU input (Mini-XLR)
3
S/PDIF input (TOSLINK)
4
S/PDIF output (RCA)
5
AES/EBU output (Mini-XLR)
6
S/PDIF output (TOSLINK)
1
S/PDIF output (RCA)
2
AES/EBU output (Mini-XLR)
3
S/PDIF output (TOSLINK)
4
S/PDIF input (RCA)
5
AES/EBU input (Mini-XLR)
6
S/PDIF input (TOSLINK)
Pos: 50 /806-IHSE/Beschreibung/Geräteansichten/474-xx/Typ L- / R474-BDA @ 6\mod_1304583753426_6.doc @ 51092 @ 3 @ 1
3.6.34 Modell L- / R474-BDA
CPU Module
CON Module
1
3
2
4
5 6
1
3
2
4
5 6
Rear View
Rear View
1
S/PDIF input (RCA)
2
AES/EBU input (Mini-XLR)
3
S/PDIF input (TOSLINK)
4
Connect to serial (D-Sub 9)
5 Audio
IN
6 Audio
OUT
1
S/PDIF output (RCA)
2
AES/EBU output (Mini-XLR)
3
S/PDIF output (TOSLINK)
4
Connect to serial (D-Sub 9)
5 Audio
IN
6 Audio
OUT
