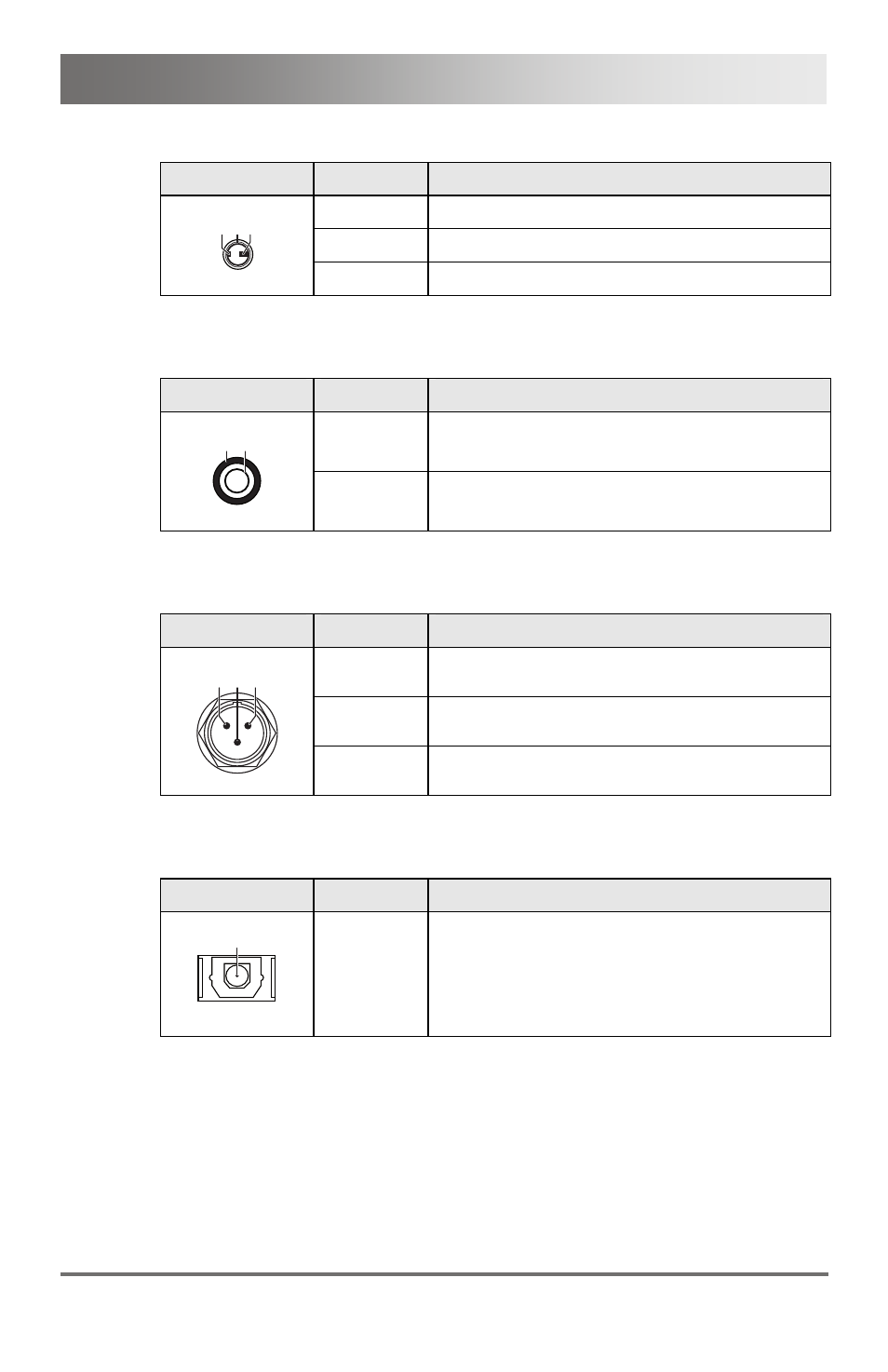

3.5 mm Stereo Jack Plug
Picture Pin Signal
1 GND
2
Audio IN / OUT L
1 2 3
3 Audio IN / OUT R
Pos: 113 /806-IHSE/Technische Daten/Pinbelegungen/RCA (Cinch) @ 5\mod_1291128877593_6.doc @ 44920 @ @ 1
RCA (Cinch)
Picture Pin Signal
1 GND
1 2
2 Data IN / OUT
Pos: 114 /806-IHSE/Technische Daten/Pinbelegungen/Mini-XLR @ 5\mod_1291128998484_6.doc @ 44939 @ @ 1
Mini-XLR
Picture Pin Signal
1 GND
2 Data +
1 3 2
3 Data –
Pos: 115 /806-IHSE/Technische Daten/Pinbelegungen/TOSLINK @ 5\mod_1291129073656_6.doc @ 44958 @ @ 1
TOSLINK
Picture Diode Signal
1
1 Data IN / OUT
