Draco KVM Extender
72
2013-08-13

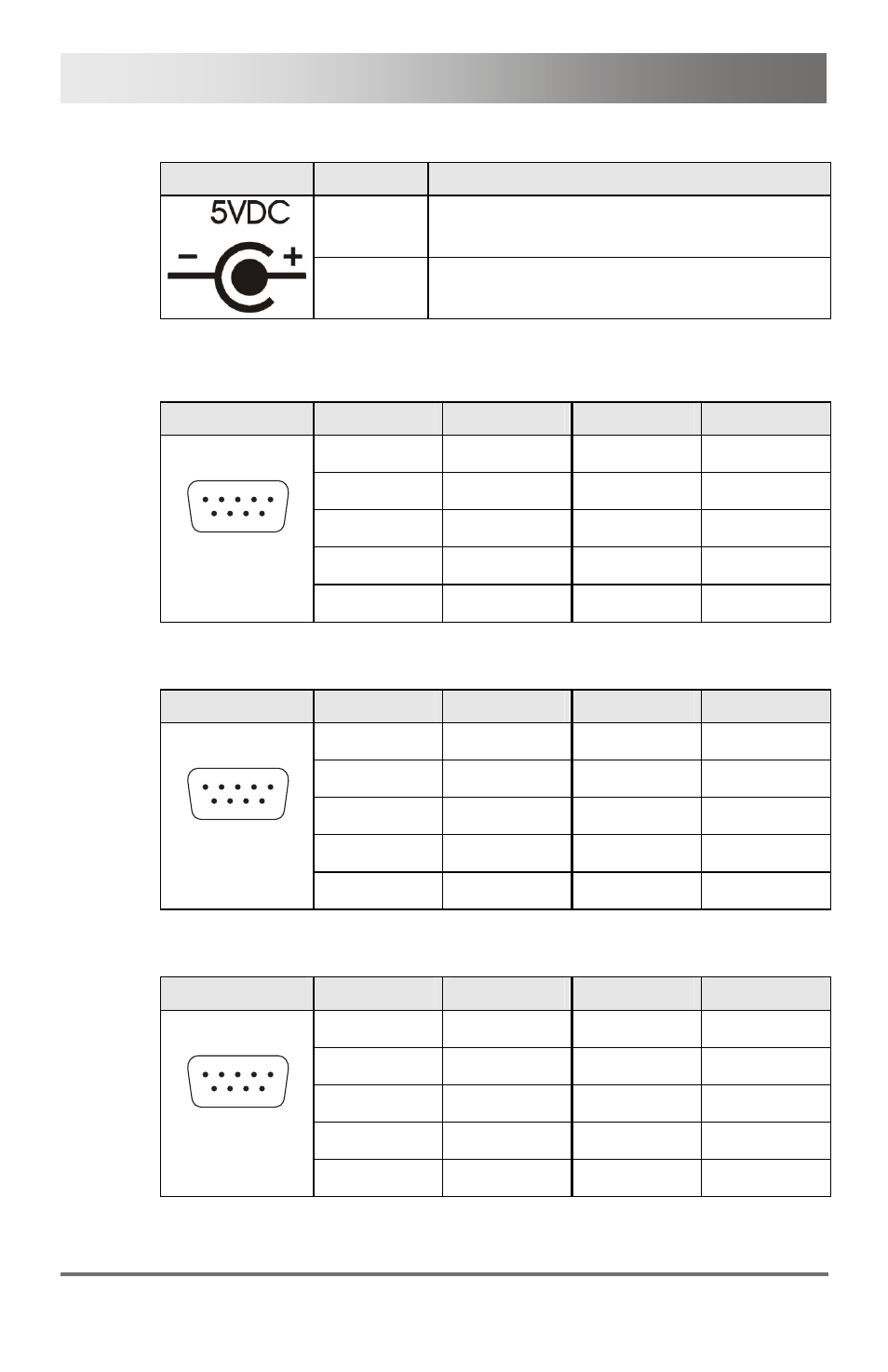

Power Supply
Pin
Signal
Inside VCC
(+5VDC)
Outside GND
Pos: 109 /806-IHSE/Technische Daten/Pinbelegungen/D-Sub 9 (Seriell) @ 5\mod_1291128631437_6.doc @ 44882 @ @ 1
D-Sub 9 (Serial) RS232
Pin
Signal
Pin
Signal
1 n.c.
6 DSR
2 RxD
7 RTS
3 TxD
8 CTS
4 DTR
9 n.c.
1.................5
6...........9
5 GND
Pos: 110 /806-IHSE/Technische Daten/Pinbelegungen/D-Sub 9 (Seriell) RS422 Controlled Device @ 9\mod_1362477200520_6.doc @ 71349 @ @ 4
D-Sub 9 (Serial) RS422 Controlled Device
Pin
Signal
Pin
Signal
1 GND
6 Rx-GND
2 RxA
7 RxB
3 TxB
8 TxA
4 Tx-GND
9 n.c.
1.................5
6...........9
5 n.c
Pos: 111 /806-IHSE/Technische Daten/Pinbelegungen/D-Sub 9 (Seriell) RS422 Controlling Device @ 9\mod_1362477202220_6.doc @ 71369 @ @ 4
D-Sub 9 (Serial) RS422 Controlling Device
Pin
Signal
Pin
Signal
1 GND
6 Tx-GND
2 TxA
7 TxB
3 RxB
8 RxA
4 Rx-GND
9 n.c.
1.................5
6...........9
5 n.c.
