Draco KVM Extender
36
2013-08-13
Pos: 55 /806-IHSE/Beschreibung/Diagnose LEDs/UEB_Diagnose_LEDs @ 6\mod_1304584004723_6.doc @ 51146 @ @ 1
3.7
Status LEDs
Pos: 56 /806-IHSE/Beschreibung/Diagnose LEDs/481-xx/Diagnose KVM-Extender-Modul @ 9\mod_1367834480876_6.doc @ 71875 @ 3 @ 4

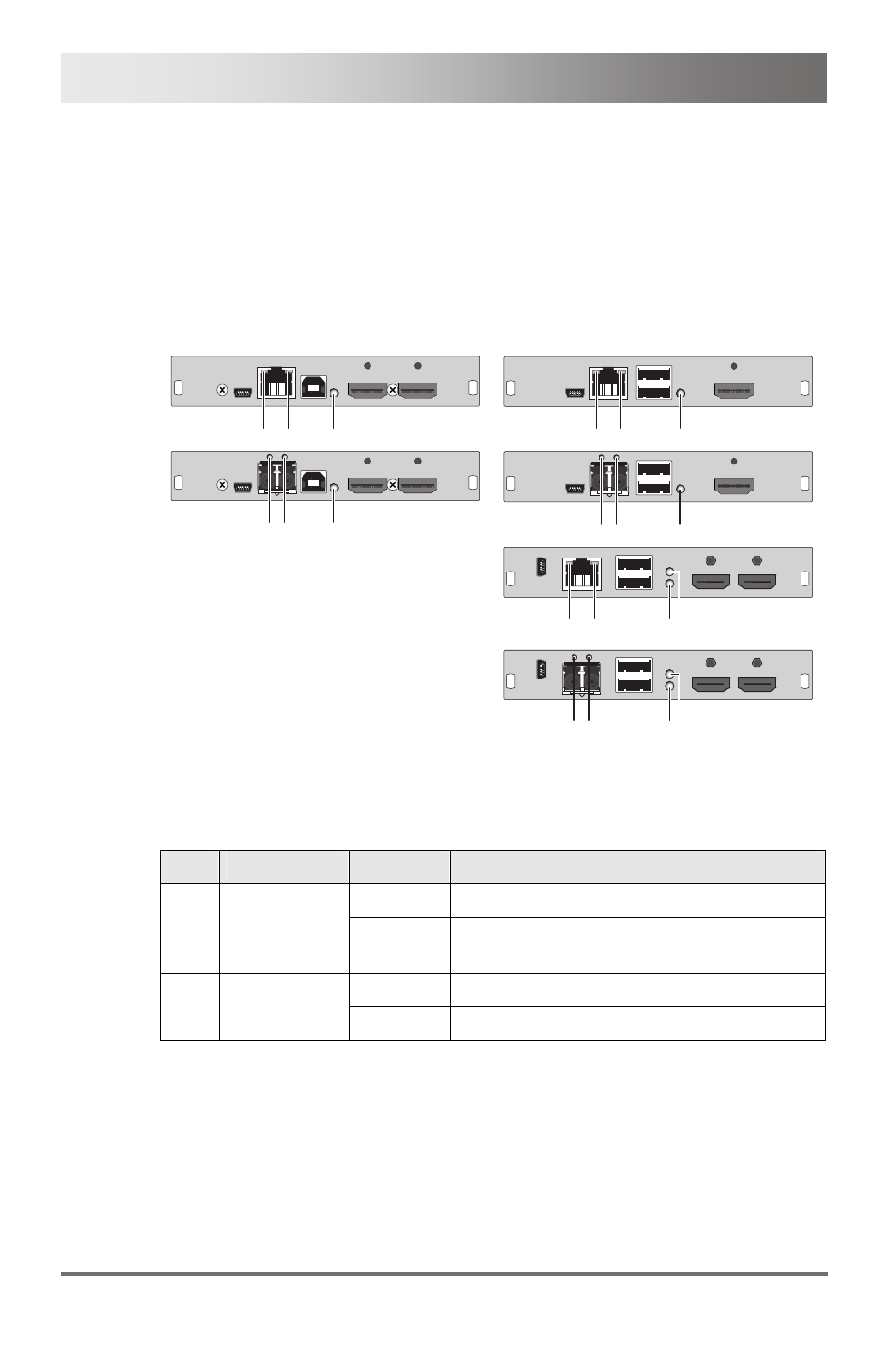

3.7.1 Status KVM Extender Module
The KVM Extender module is fitted with a multi color LED on both sides
for overall status indication and with two further LEDs on the back side for
indication of the connection status.
CPU Module
CON Module
2
1
3
2
1
3
2
1
3
2
1
3
Rear View
1
2
3 4
1 2
3 4
Rear View
LED 1 and 2: Connection Status
Pos. LED
Status
Description
Off Connection
available
1
Failure LED
(green)
On or
Flashing
Connection failure (flashing for about
20 s following a connection failure)
Flashing No connection via interconnect cable
2
Status LED
(green)
On Connection
available
