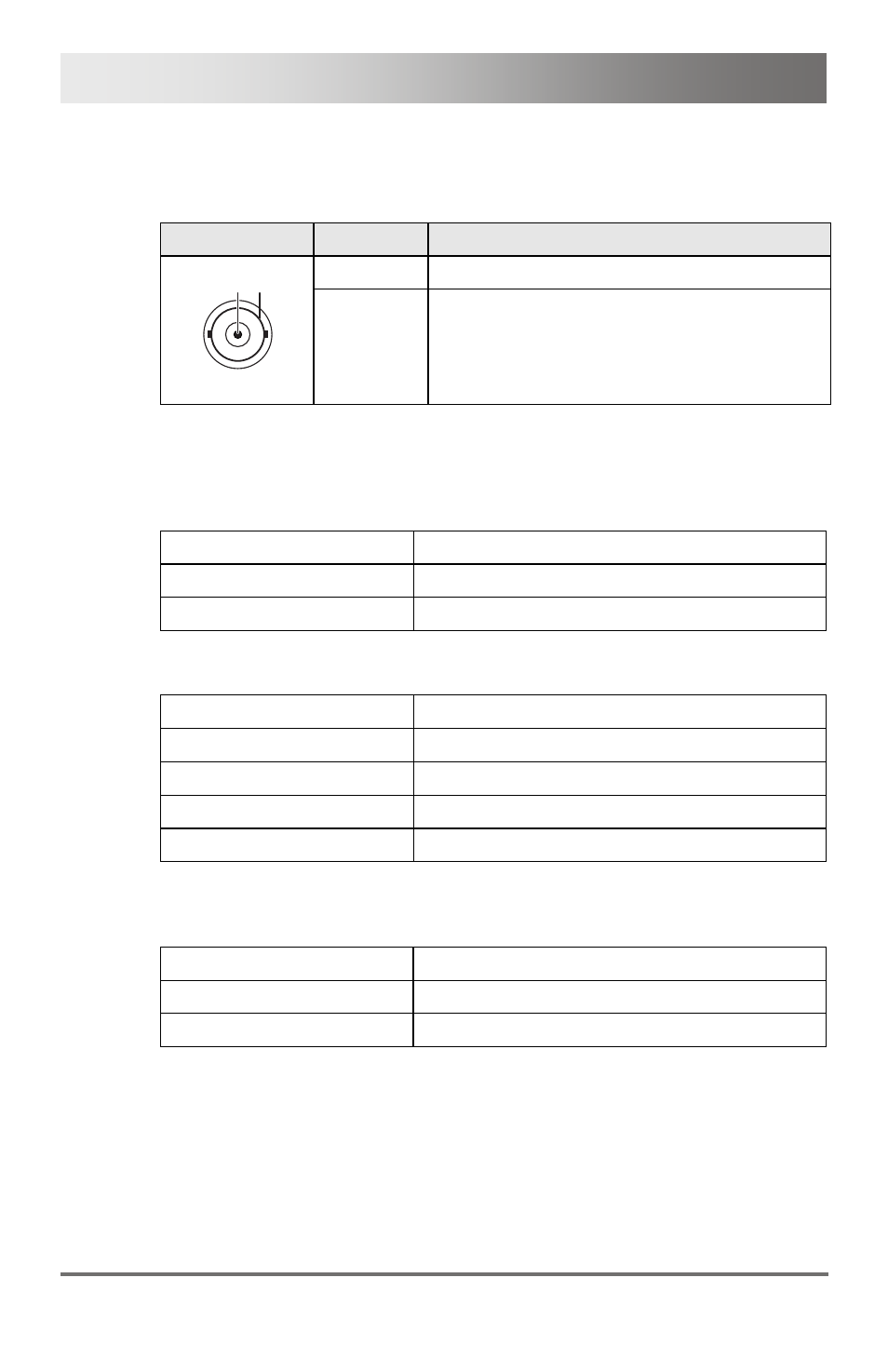

Draco tera
190
2013-08-14
7.4.4 I/O Port SDI
Pos: 149 /806-IHSE/Technische Daten/Pinbelegungen/Mini-BNC (SDI) @ 7\mod_1309943545633_6.doc @ 53930 @ @ 1
Mini BNC (SDI)
Picture Pin Signal
1 Data IN
1 2
2 GND
Pos: 150 /806-IHSE/Technische Daten/Stromversorgung/480-xx @ 7\mod_1309943583946_6.doc @ 53948 @ 2 @ 1
7.5 Power Supply
Nominal Current/Nominal Voltage
Draco tera 288 12 A, 100-240 V
ac
, 50/60 Hz
Draco tera 160 9 A, 100-240 V
ac
, 50/60 Hz
Draco tera 80, 48 5 A, 100-240 V
ac
, 50/60 Hz
Power Requirement
Draco tera 288 max. 202 W without I/O boards
Draco tera 160 max. 188 W without I/O boards
Draco tera 80 max. 99 W without I/O boards
Draco tera 48 max. 94 W without I/O boards
I/O Board max. 13 W
Pos: 151 /806-IHSE/Technische Daten/Einsatzbedingungen/ATB_Einsatzbedingungen @ 5\mod_1278578980026_6.doc @ 42480 @ 2 @ 1
7.6 Environmental Conditions
Operating Temperature 41 to 113°F (5 to 45°C)
Storage Temperature –13 to 140°F (–25 to 60°C)
Relative Humidity Max. 80% non-condensing
