4.3.1 KVM Matrix
In Single-Head mode, up to 288 ports can be used either as an input or as
an output port depending on components and equipment. At the same
time there is a non blocking access for all users, i.e. user access is not
limited by the activities of another user.

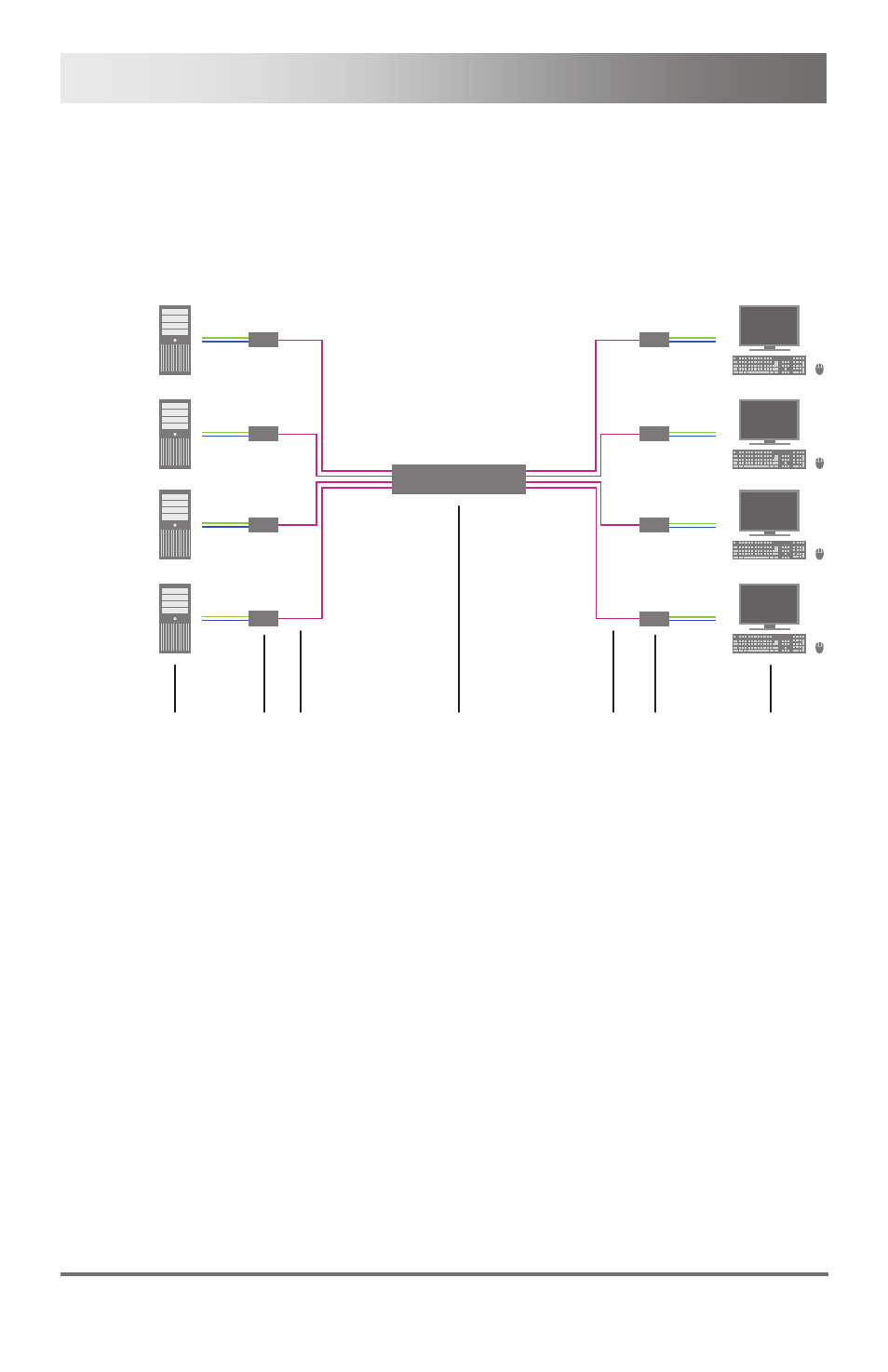

1 2 3 5 3 6 4
Single-Head KVM Matrix
1 Source (computer, CPU)
2 CPU unit
3 Interconnect cable
4 Draco tera matrix
5 CON unit
6 Console (monitor, keyboard, mouse)
If you have a Single-Head console, you can also get access to a Dual-
Head or Quad-Head CPU for example. However control is only possible at
monitor 1.
Any signal source can be switched to any number of monitors that will
show the video signal at the same time. In addition to that even (optional)
audio can be switched.
