4.3.3 Parallel Operation (Stacking)
If you have special configurations, especially at installations with several
monitors per work station or additional support of USB 2.0 transmission
paths, the number of connectable CPUs and consoles can be increased
by a parallel operation (stacking) of several Draco tera devices.
One of the Draco tera matrices has to be defined as the master matrix,
all the others have to be configured as slave matrix and the IP address of
the master matrix has to be entered in the field Master IP Address (see
Chapter 5.4.1, Page 75). They have to be connected to the master matrix
via network connector (RJ45) of the CPU board. The option Enable LAN
Echo has to be activated at the master matrix
(see Chapter 5.4.1, Page
75).
If a switching command is done in the OSD, the slave matrices will also
switch automatically.
Switching of stacked devices might be delayed by several seconds.

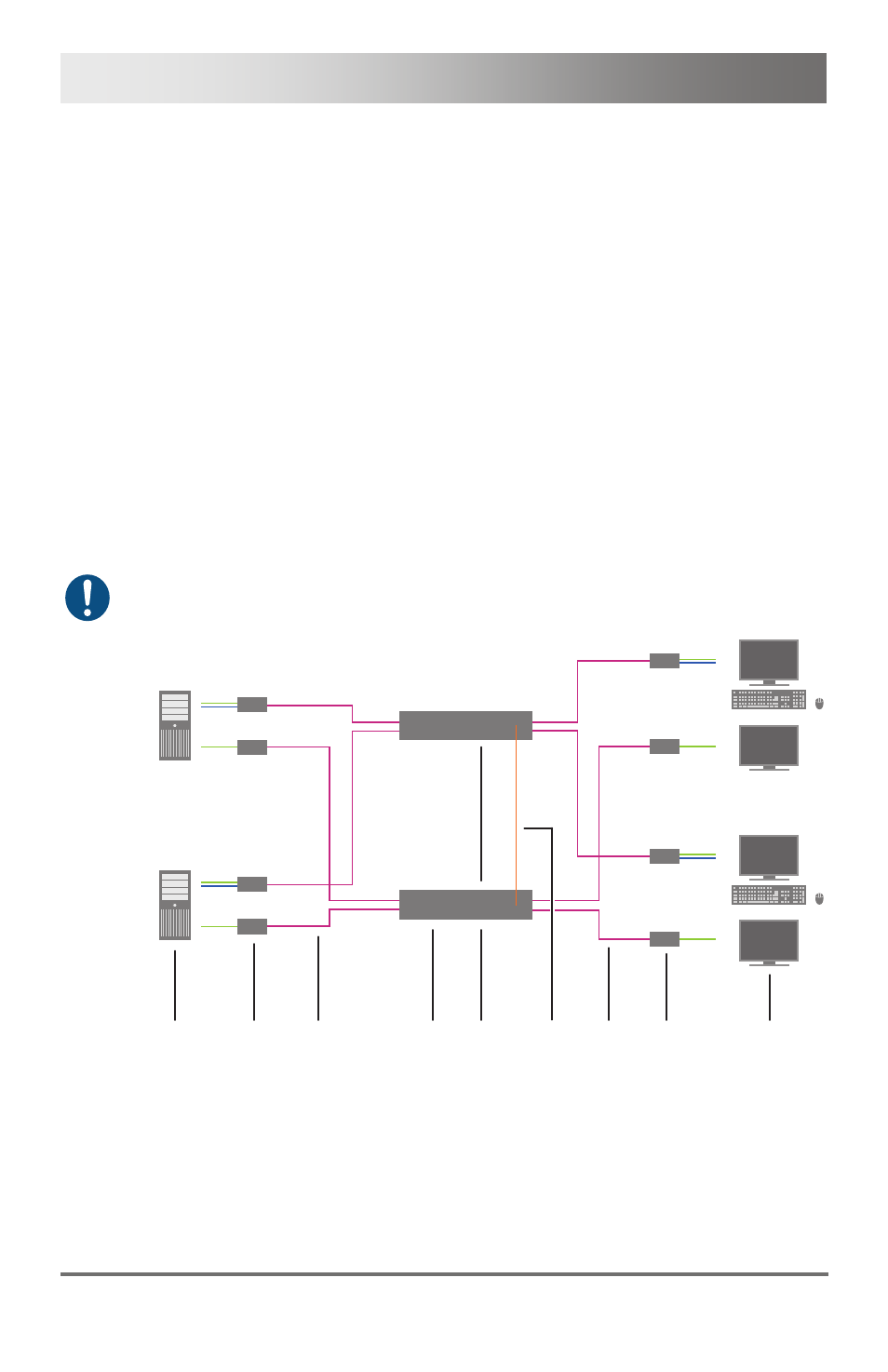

1 2 3 4 6 3 7 5 8
