Draco tera
28
2013-08-14

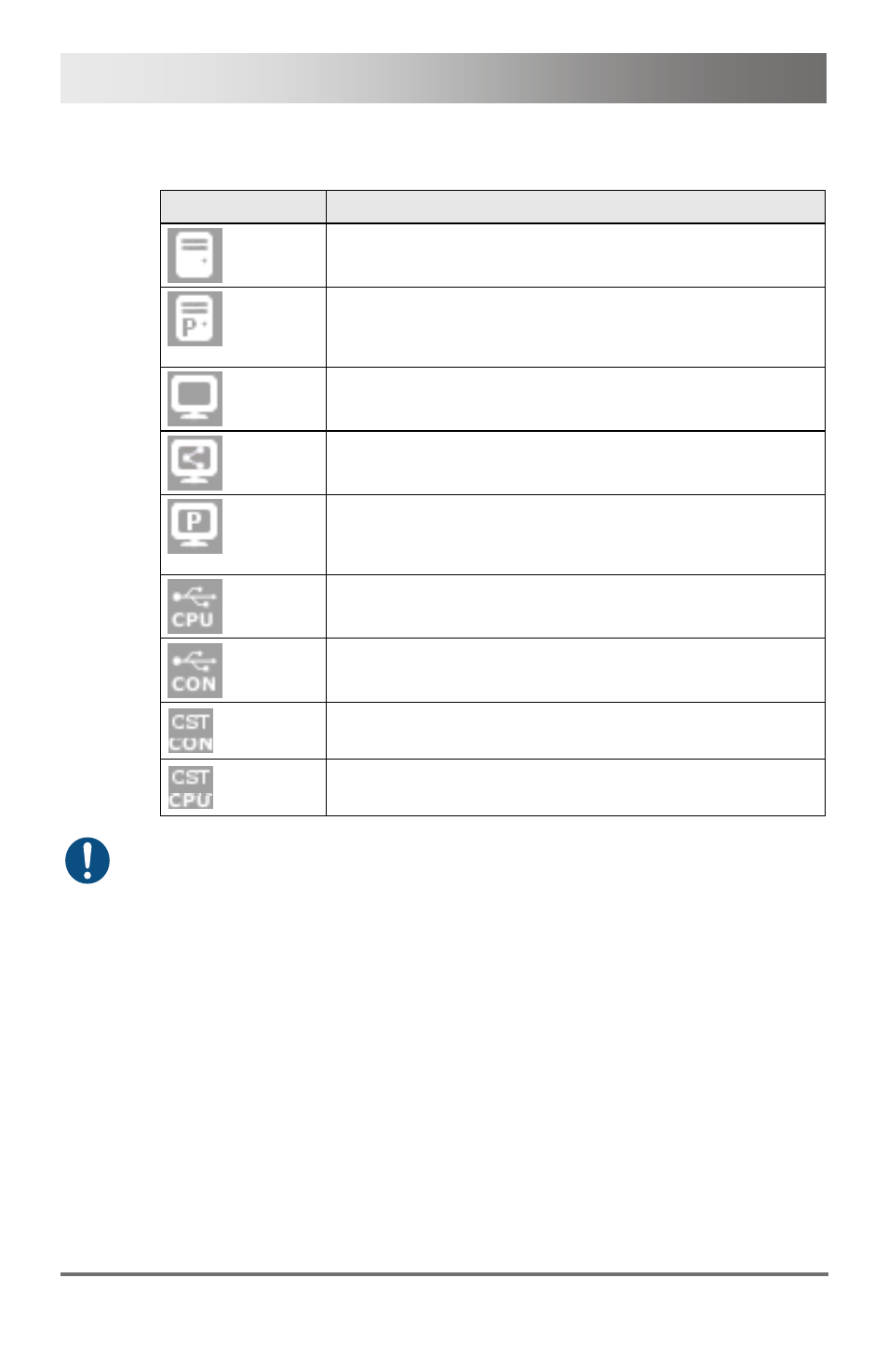

The symbol indicates the extender that is recognized and defined at a
certain port:
Symbol Description
Port connected to a CPU Unit
Port is connected to a CPU Unit that is switched to a
CON Unit in Private Mode (see Chapter 3.7.3, Page
30).
Port connected to a CON Unit
Port connected to a CON Unit with Shared Access to
a CPU.
Port is connected to a CON Unit that is connected to
a CPU Unit in Private Mode (see Chapter 3.7.3,
Page 30).
Port connected to an USB 2.0 CPU Unit
Port connected to an USB 2.0 CON Unit
Port is configured as a CON port for customer specific
applications
Port is configured as a CPU port for customer specifiv
applications
 Red framed ports are defined as "fixed" (e. g. for USB 2.0
connections).
 The port with four static blue squares is currently selected.
 If a port is selected, all the other ports will be shown transparently,
except of those that are connected to the currently selected port. A
selection can be cleared by pressing the button Clear Selection.
 If there is shown a red cross on a port when switching via Matrix
View, the console to be connected does not have access rights to the
respecting CPU at this port.
 In order to show the extender information of the currently selected
port in the right part of the working area, press the left mouse button.
