The Licon FX comes with a MIDI input on the rear panel of the console, to which you
may connect a MIDI keyboard or a MIDI sequencer.
It is possible to assign keystrokes on the console to MIDI-note commands. This
assignment allows remote control of certain console functions. The status of this
function is shown as REMOTE on the display and can be changed by pressing the
softkey REMOT . If you wish to change the assignment of the keys to MIDI-note

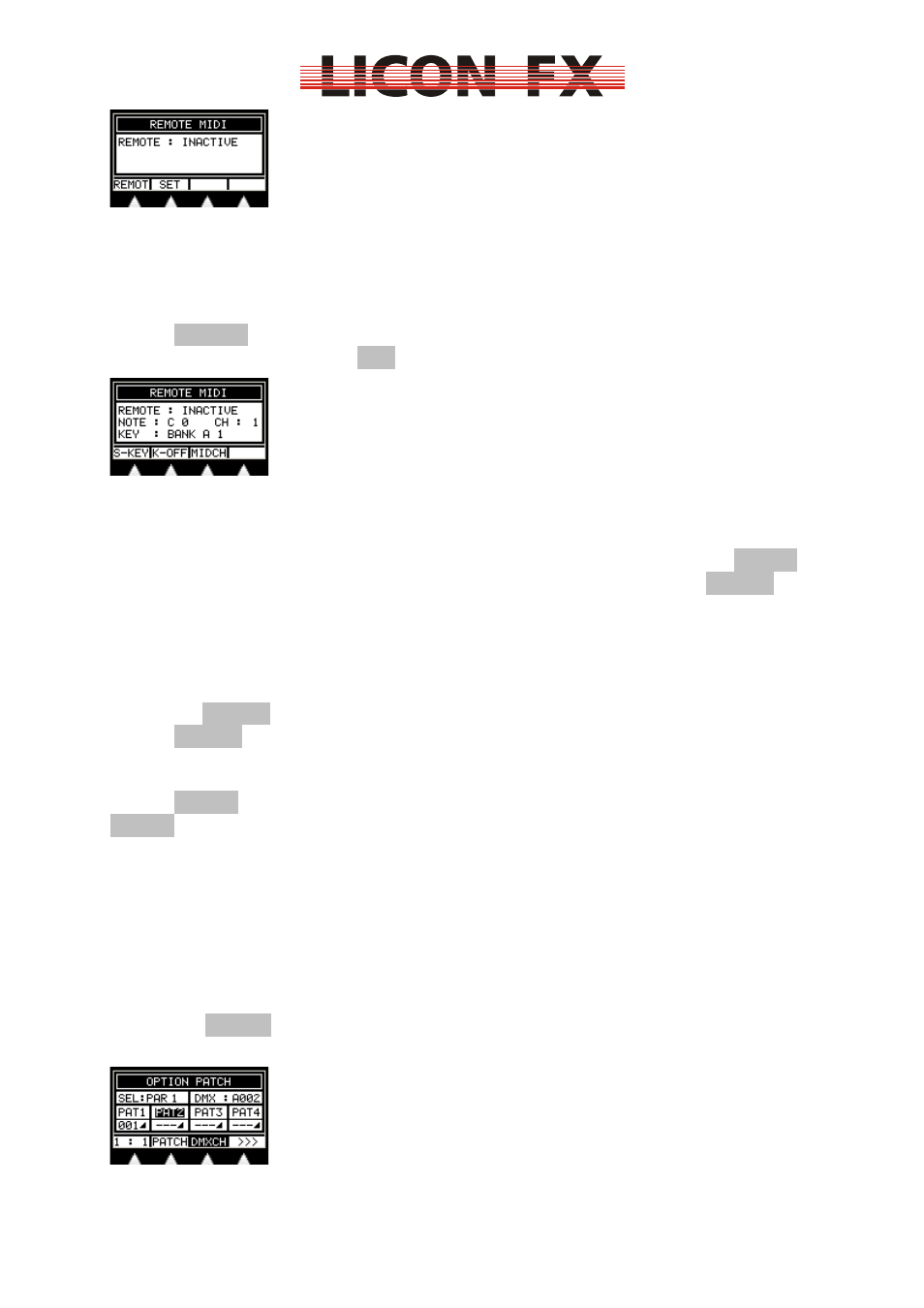

commands, press the softkey SET. The following submenu is shown:
The display shows the assignment for one MIDI note at a time. The MIDI note
selected is shown on the display in the second line in the field “NOTE:“.
To change the current selection you have two possibilities:
If you wish to use the encoder to select another assignment, the menu item MIDCH
must not be displayed inverted. If inversion is present, press the softkey MIDCH for
deactivation.
If you wish to change the assignment with a keystroke on a connected MIDI
keyboard, ensure that you have chosen the correct MIDI channel and that the MIDI
remote mode is activated.
The desired MIDI channel is also selected with the encoder. For this purpose, the
menu item MIDCH must be displayed inverted. If this is not the case, press the
softkey MIDCH for activation.
To assign a key to a MIDI-note command, press the corresponding key on the
console. To assign one of the display keys of this menu or the ESC key, press the
softkey S-KEY (repeat if necessary). Delete the assignment by pressing the softkey
K-OFF
. In the factory default setting, the flash keys starting from A1 in ascending
order are assigned to the MIDI notes starting from C0. The key selected for the
assignment is shown on the display in the third line in the field “KEY :“.
Note: The assignments made can be performed only outside this menu.
3.2 DMX patch for stand-alone mode of the console
This function is not available in the active extension mode of the Licon FX to the
Licon 1/1X.
In order to carry out the DMX patch for the stand-alone mode of the console, press
the softkey PATCH.
The available functions are shown on the following two menu pages:
