Part names and functions
For buttons not explained here, see the page indicated in parentheses ( ).

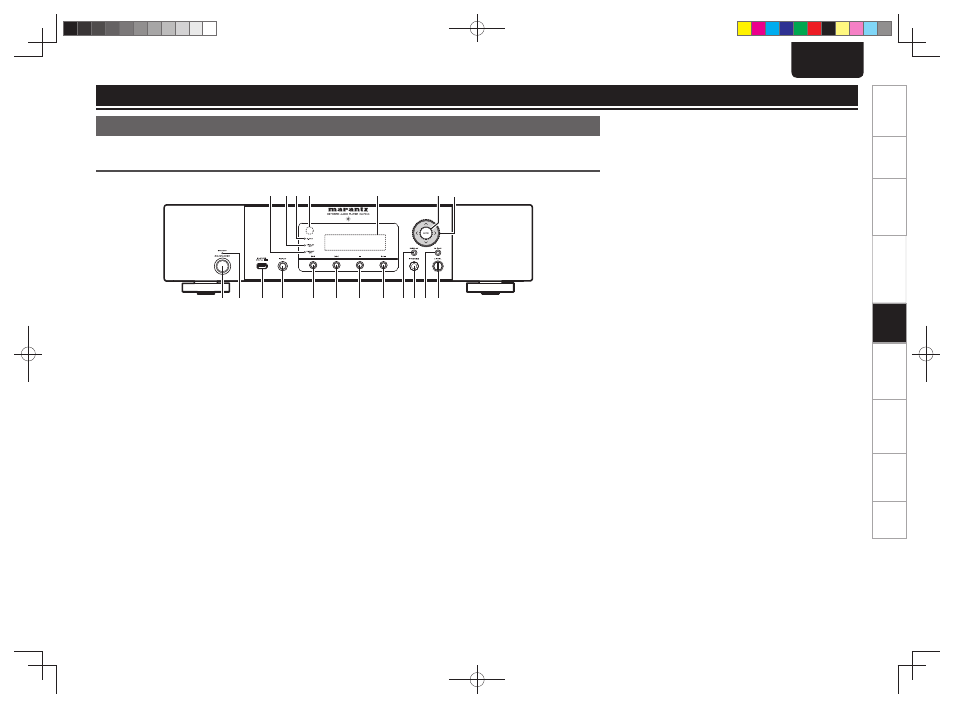

Front panel
q w
e
r
t
y
u
i
o Q0 Q1 Q2
Q3
Q4
Q5
Q6
Q7
Q8
Q9
q
Power operation switch (ON/STANDBY) ····························· (10)
w
Power indicator (STANDBY) ·················································· (10)
The two-colored light indicates the player operating status as
follows:
• Power “ON” .....................................................................Turn off
• Standby ................................................................................... Red
• Network Standby ...............................................................Orange
e
USB port (Type A) (iPod/USB) ················································· (8)
Used to connect USB devices.
r
INPUT knob ·············································································· (10)
Selects the input source
t
Reverse-skip button (8) ····················································· (14)
y
Forward-skip button (9) ····················································· (14)
u
Stop button (2) ······································································· (12)
i
Play/Pause button (1/3) ························································ (14)
o
DISPLAY button ······································································· (13)
Q0
Headphones jack (PHONES) ··················································· (11)
Q1
M-DAX button ········································································· (11)
Q2
Headphone volume control knob (LEVEL) ···························· (11)
Q3
Cursor buttons (uio p) ······················································· (12)
Q4
ENTER button ·········································································· (12)
Used to confi rm an item.
Q5
Display
Q6
Remote control sensor ····························································· (3)
Q7
M-DAX indicator (M-DAX) ······················································ (11)
Q8
DISPLAY OFF indicator (DISPLAY OFF) ································· (11)
Q9
DIGITAL OUT OFF indicator (DIG.OUT OFF) ························· (11)
