Measurement Computing CB-7000 Utilities - Manual (Page 16)

12
2.7 Operation of 7000 Utility
This section describes all aspects of the 7000 utility software.
2.7.1 Main Window of 7000 Utility
The main window of 7000 Utility is shown in Figure 2-7. All operations of 7000 Utility are based
on the main window of Figure 2-7.

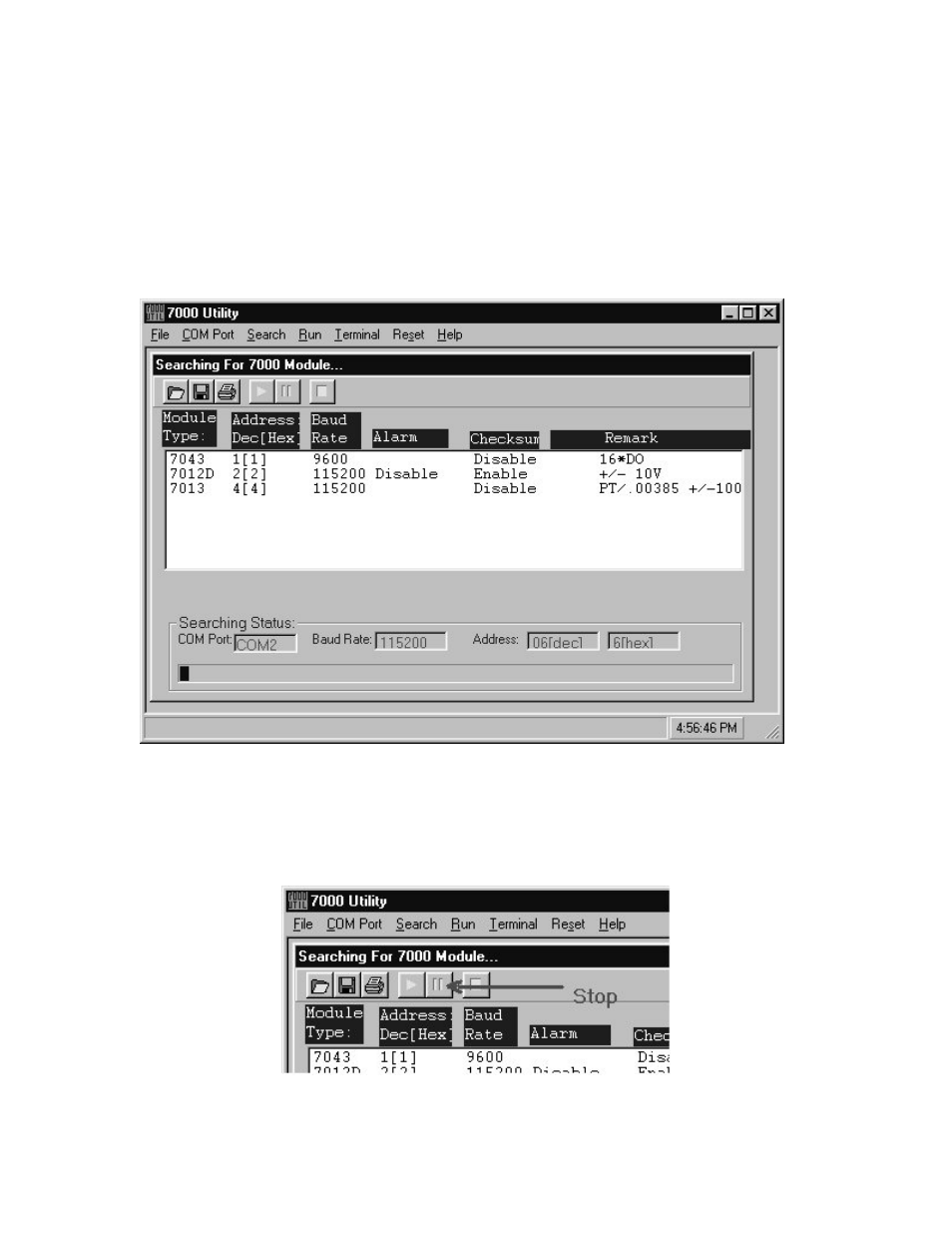

Figure 2-7. Main Window of 7000 Utility
2.7.2 Stop Searching
To stop running the program:
Initially, it will be in the searching process when starting the 7000Util.EXE. The user can stop the
searching process by clicking the Stop icon in the tool bar or any menu item (Figure 2-8).
Fig 2-8. Stop the searching process.
