16
2.7.6 Command Testing for a Module
To send and receive module commands, click on “Terminal”, then “Single Line” (Figure 2-14). If
no module is selected, the default baud rate is 9600 and checksum is disabled as in Figure 2-15. If
a module is selected, the baud rate and checksum status will be displayed as the selected module
shown in Figure 2-16. Figure 2-17 shows a command sent to the selected module

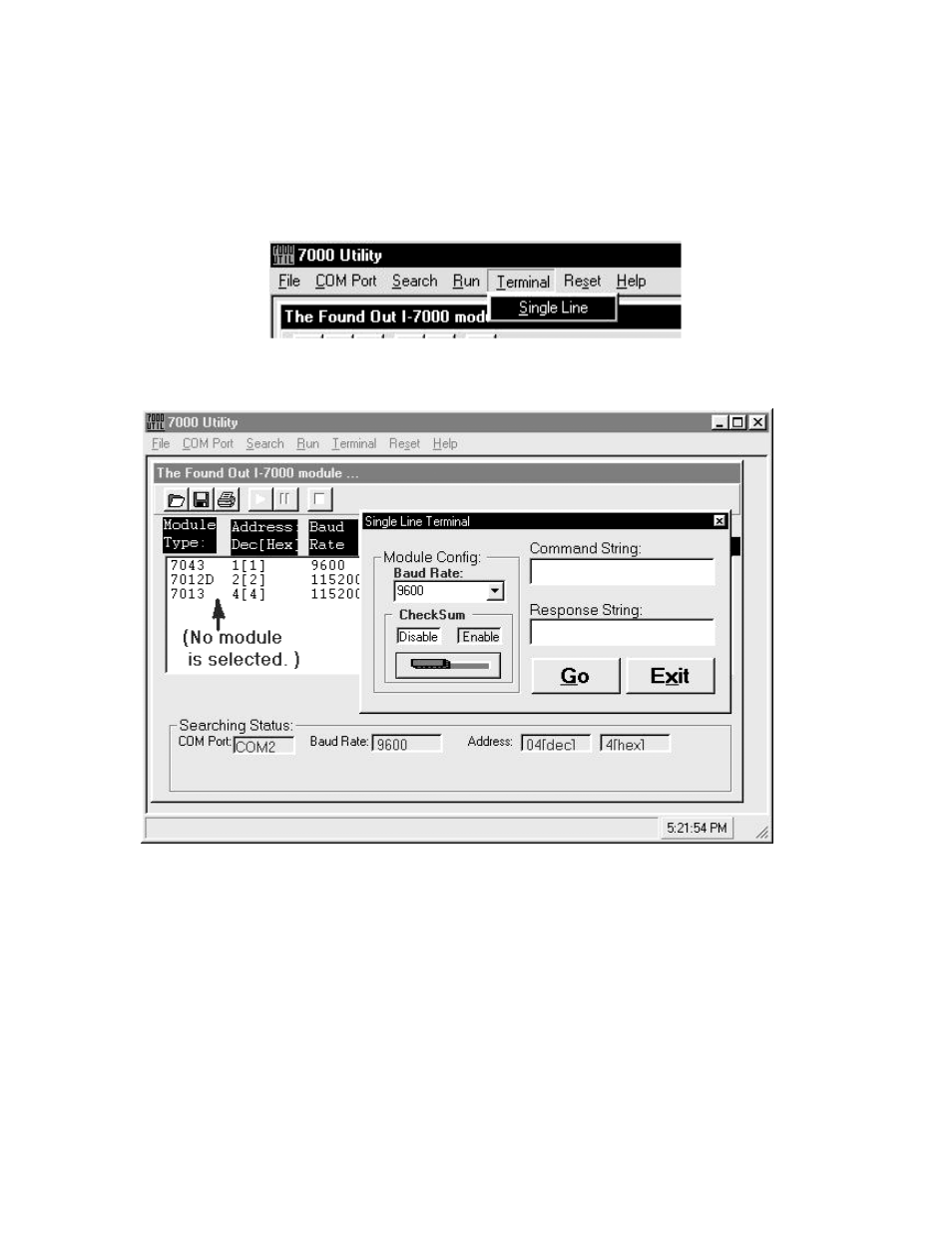

Figure 2-14. Selected Module
Figure 2-15. No module is selected
