2
1. Connect the first module per Figure 1-1. (Replace the I-7012 module by the user’s first
module.) NOTE: Do not connect more than one module at a time.
2. Install the 7000 Utility software from Disk. Please refer to Section 2, “7000 Utility User
Manual”, in this manual.
3. Run the 7000 Utility software to run a search for the user’s modules.

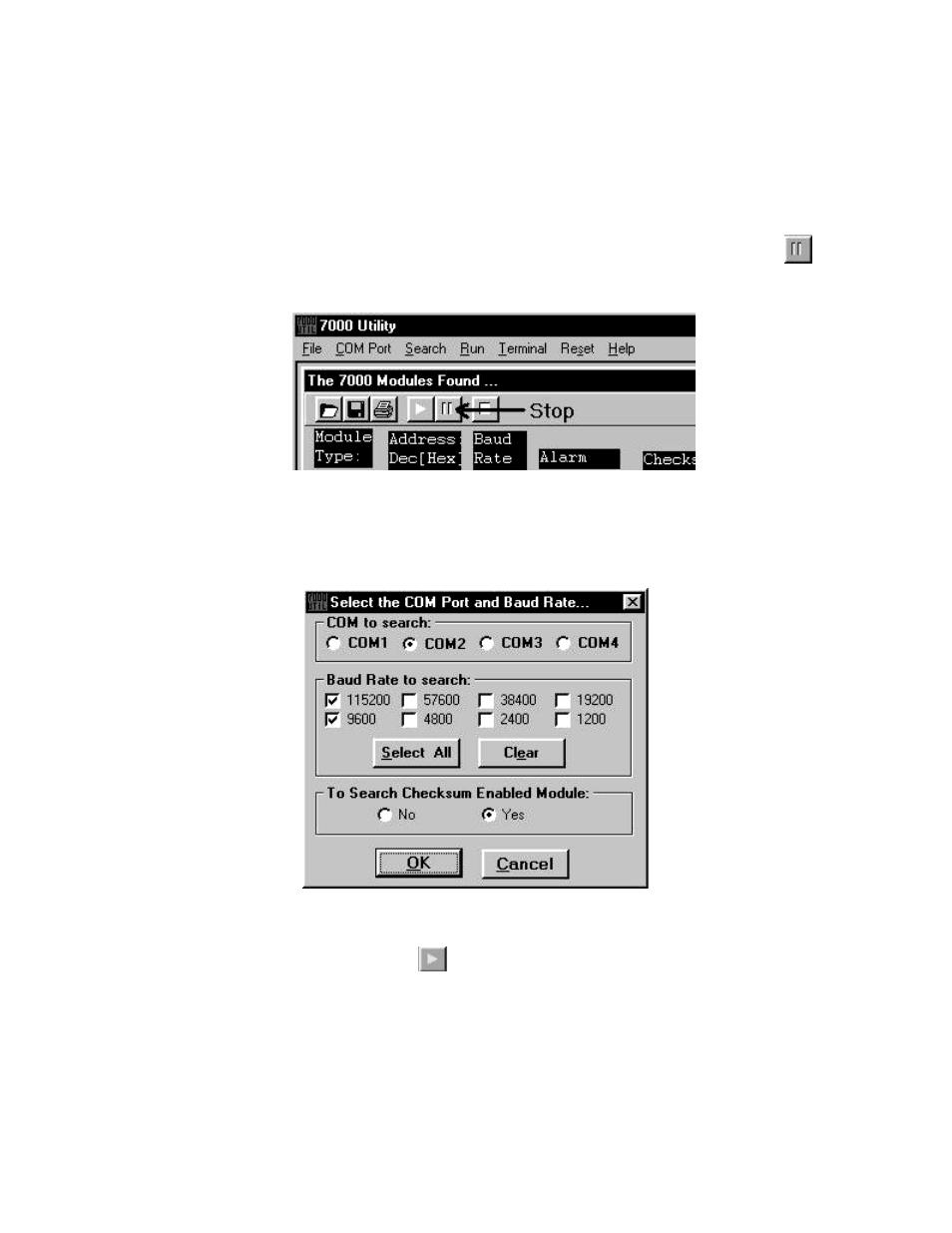

The 7000 Utility software will perform an auto search when started. If desired, click the icon
to stop it. Refer to Figure 1-2.
Figure 1-2. Stop searching.
Click the menu item “COM Port” to select the COM port that the user will use. Select the baud
rate 9600 and click the OK button. Refer to Figure 1-3.
Figure 1-3. Select the COM Port and Baud Rate.
After setting the configuration, click the icon to search again. Refer to Figure 1-4.
